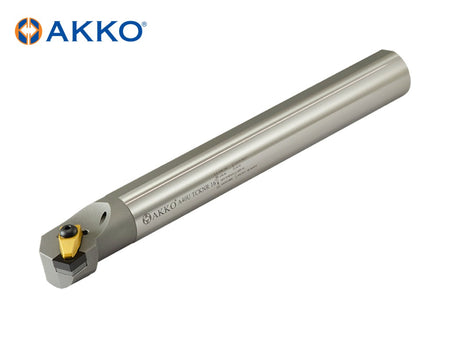

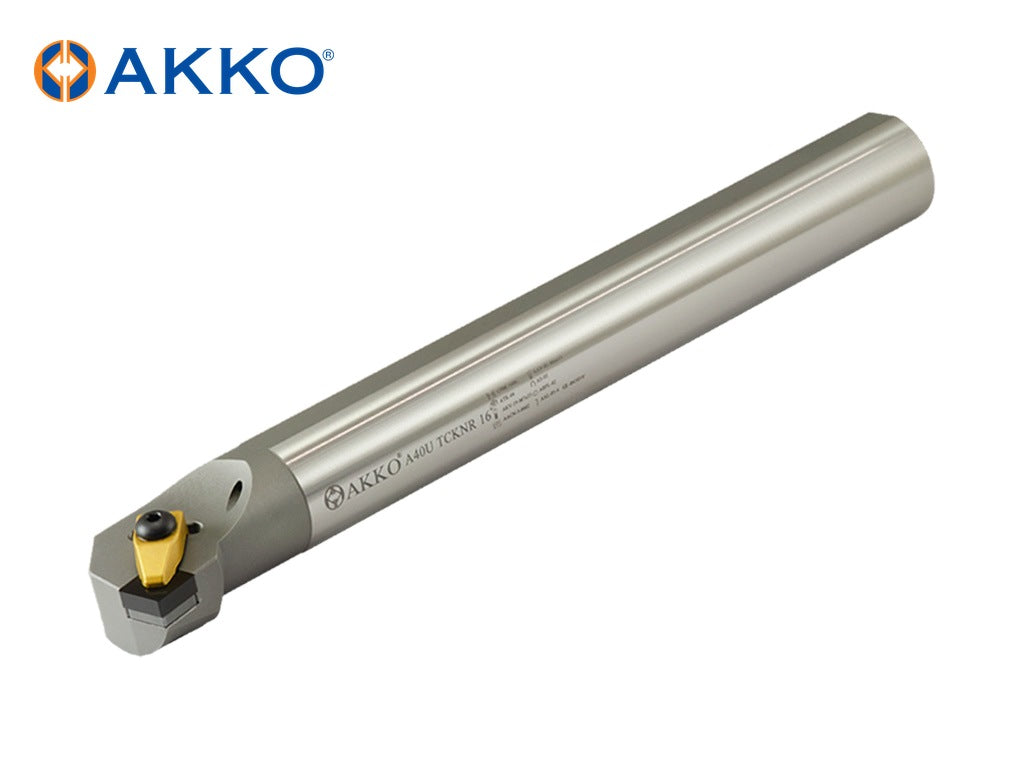

AKKO TCKNR/L – T-System Boring Bar from the AKKO T-System Boring Bars range. Available in right-hand and left-hand versions. For inserts: CN.. 1606.. 4 sizes listed below.
Specifications
-
Clamping Type: D-System
-
Coolant Through: Yes
-
Type Of Bar: Steel Body
-
Insert Size: 1606..
-
Insert Style: CN..
-
Side Cutting Angle (KAPR): 75°

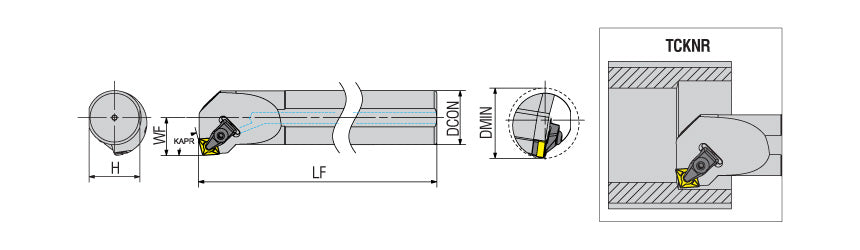

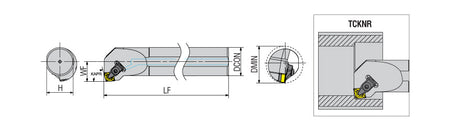

Sizes and dimensions
| AKKO code |
Hand (R/L) |
Connection Diameter (DCON, mm) |
Functional Length (LF, mm) |
Functional Width (WF, mm) |
Minimum Bore Diameter (Dmin) |
| A32T TCKNL 16 |
L |
32 |
300 |
22 |
≥40 mm |
| A32T TCKNR 16 |
R |
32 |
300 |
22 |
≥40 mm |
| A40U TCKNL 16 |
L |
40 |
350 |
27 |
≥50 mm |
| A40U TCKNR 16 |
R |
40 |
350 |
27 |
≥50 mm |
Spare parts (AKKO codes)
-
Shim: AACN-3-0002
-
Shim Screw: AAV-05-M6X15
-
Allen Key: AAL-05-4
-
Clamp: ATK-04
-
Clamp Screw: AKV-19-M7X25
-
Stamp: ABPL-02
-
Ring: AS-02
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
