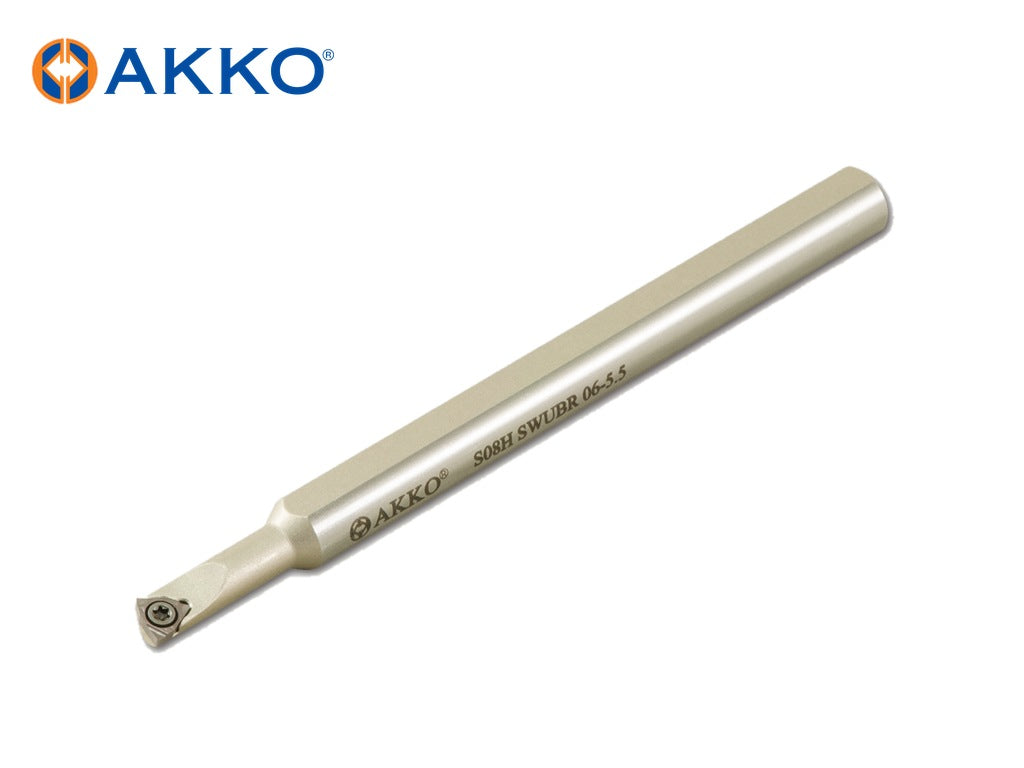

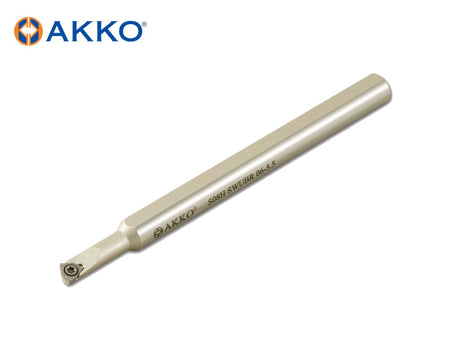

AKKO SWUBR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: WBGT 060102, WBGT 060102-L. 6 sizes listed below.

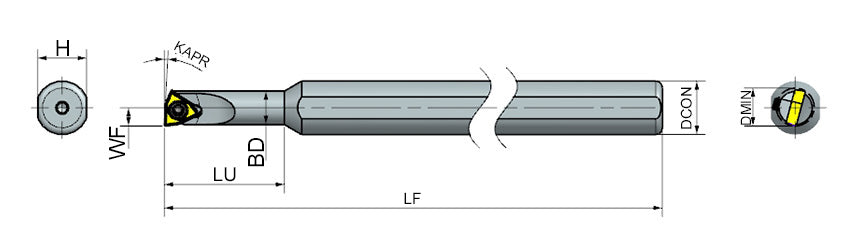

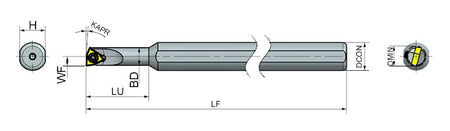

| AKKO code | Hand (R/L) | Body Diameter (BD, mm) | Connection Diameter (DCON, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Insert Size |
|---|---|---|---|---|---|---|
| S0610H SWUBL 06 | L | 5 | 10 | 3 | ≥6 mm | 060102 |
| S0610H SWUBR 06 | R | 5 | 10 | 3 | ≥6 mm | 060102-L |
| S08H SWUBL 06-5.5 | L | 5 | 8 | 2.75 | ≥5.7 mm | 060102-L |
| S08H SWUBL 06-7 | L | 6.5 | 8 | 3.5 | ≥7 mm | 060102 |
| S08H SWUBR 06-5.5 | R | 5 | 8 | 2.75 | ≥5.7 mm | 060102-L |
| S08H SWUBR 06-7 | R | 6.5 | 8 | 3.5 | ≥7 mm | 060102-L |
| AKKO code | Torx Screw |
|---|---|
| S0610H SWUBL 06 | 3006-M2x3.3 |
| S0610H SWUBR 06 | 3006-M2x3.3 |
| S08H SWUBL 06-5.5 | 3006-M2x3.3 |
| S08H SWUBL 06-7 | 3006-M2X4 |
| S08H SWUBR 06-5.5 | 3006-M2x3.3 |
| S08H SWUBR 06-7 | 3006-M2X4 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
