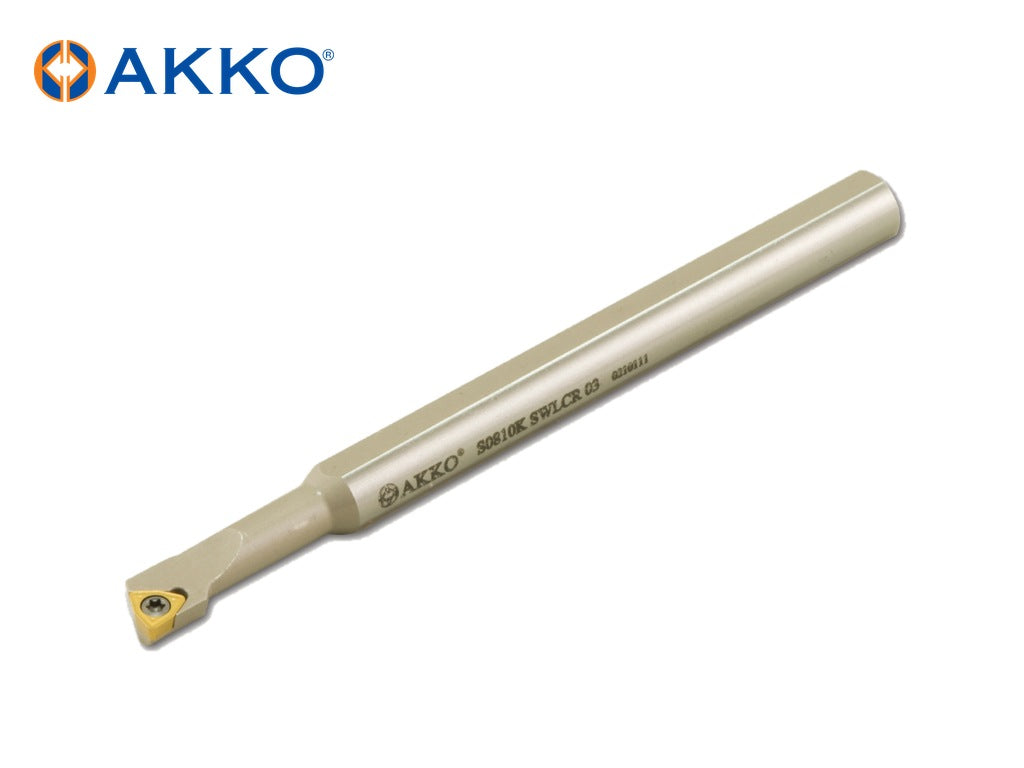

AKKO SWLCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: WC.. 0302.. 4 sizes listed below.

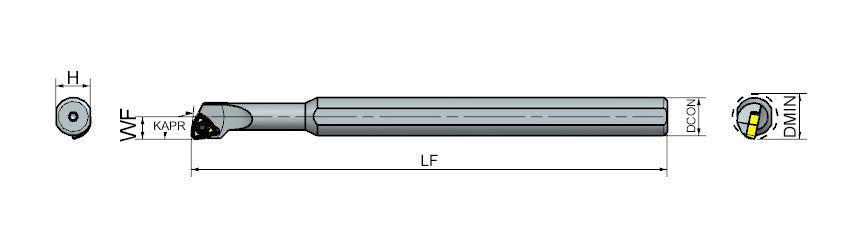

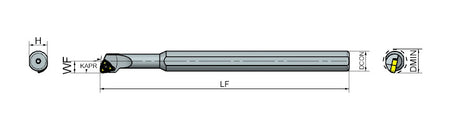

| AKKO code | Hand (R/L) | Body Diameter (BD, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) |
|---|---|---|---|---|---|---|
| S0608H SWLCL 03 | L | 6 | 8 | 100 | 4 | ≥8 mm |
| S0608H SWLCR 03 | R | 6 | 8 | 100 | 4 | ≥08 mm |
| S0810K SWLCL 03 | L | 8 | 10 | 125 | 6 | ≥10 mm |
| S0810K SWLCR 03 | R | 8 | 10 | 125 | 6 | ≥10 mm |
| AKKO code | Torx Screw |
|---|---|
| S0608H SWLCL 03 | 4008-M2.5x4 |
| S0608H SWLCR 03 | 4008-M2.5x4 |
| S0810K SWLCL 03 | 4008-M2.5X4.5 |
| S0810K SWLCR 03 | 4008-M2.5X4.5 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
