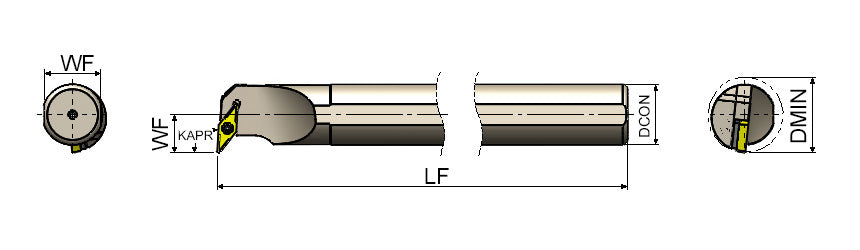

AKKO SVUBR/L S-System Boring Bar - dimension drawing

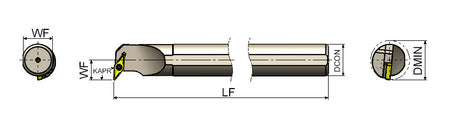

AKKO SVUBR/L S-System Boring Bar - dimension drawing
AKKO

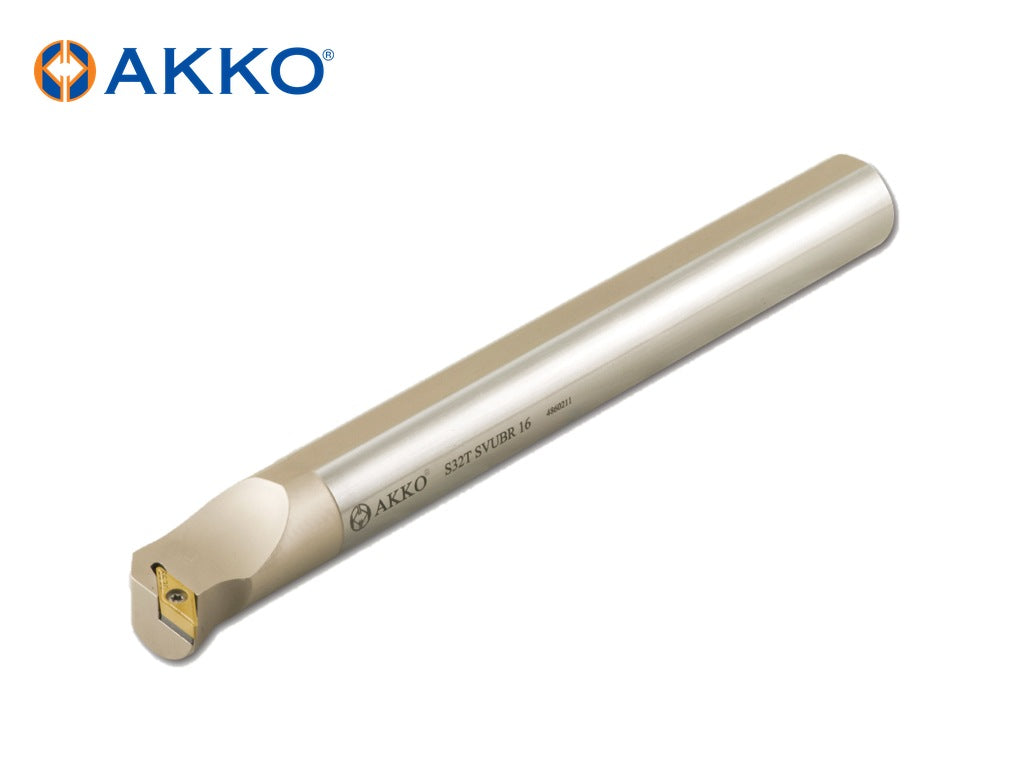

AKKO SVUBR/L S-System Boring Bar

Out of stock
SKU: A20Q SVUBL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedA20Q SVUBL 16 SKUA20Q SVUBL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SVUBR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: VB.. 1103.., VB.. 1604.. 15 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Type Of Bar: Steel Body
  • Insert Style: VB..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Coolant Through Insert Size
A20Q SVUBL 16 L 20 180 20 ≥30 mm Yes 1604..
A20Q SVUBR 16 R 20 180 20 ≥30 mm Yes 1604..
A32S SVUBL 16 L 32 250 22 ≥40 mm Yes 1604..
A32S SVUBR 16 R 32 250 22 ≥40 mm Yes 1604..
S16P SVUBL 11 L 16 170 12.5 ≥20 mm No 1103..
S16P SVUBR 11 R 16 170 12.5 ≥20 mm No 1103..
S20R SVUBL 11 L 20 200 13 ≥25 mm No 1103..
S20R SVUBR 11 R 20 200 13 ≥25 mm No 1103..
S25S SVUBL 16 L 25 250 19 ≥32 mm No 1604..
S25S SVUBR 16 R 25 250 19 ≥32 mm No 1604..
S25S SVUBR 16-Z R 25 250 19 ≥32 mm No 1604..
S32T SVUBL 16 L 32 300 22 ≥40 mm No 1604..
S32T SVUBR 16 R 32 300 22 ≥40 mm No 1604..
S40U SVUBL 16 L 40 350 27 ≥50 mm No 1604..
S40U SVUBR 16 R 40 350 27 ≥50 mm No 1604..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw Set Screw
A20Q SVUBL 16 82-T15 4015-M3.5X11 – – –
A20Q SVUBR 16 82-T15 4015-M3.5X11 – – –
A32S SVUBL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
A32S SVUBR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
S16P SVUBL 11 82-T08 4008-M2.5X6 – – –
S16P SVUBR 11 82-T08 4008-M2.5X6 – – –
S20R SVUBL 11 82-T08 4008-M2.5X6 – – –
S20R SVUBR 11 82-T08 4008-M2.5X6 – – –
S25S SVUBL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S25S SVUBR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S25S SVUBR 16-Z 80-T15 4015-M3.5X14 – – –
S32T SVUBL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S32T SVUBR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S40U SVUBL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S40U SVUBR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
