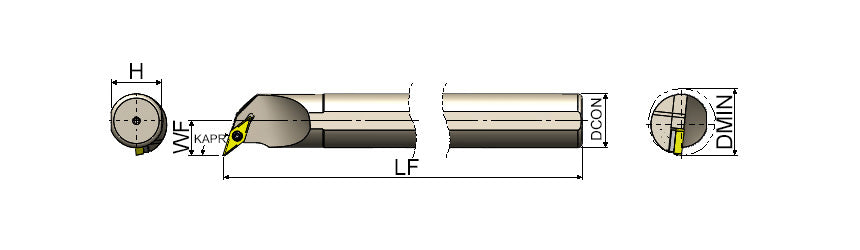

AKKO SVQCR/L S-System Boring Bar - dimension drawing
AKKO SVQCR/L S-System Boring Bar - dimension drawing
AKKO

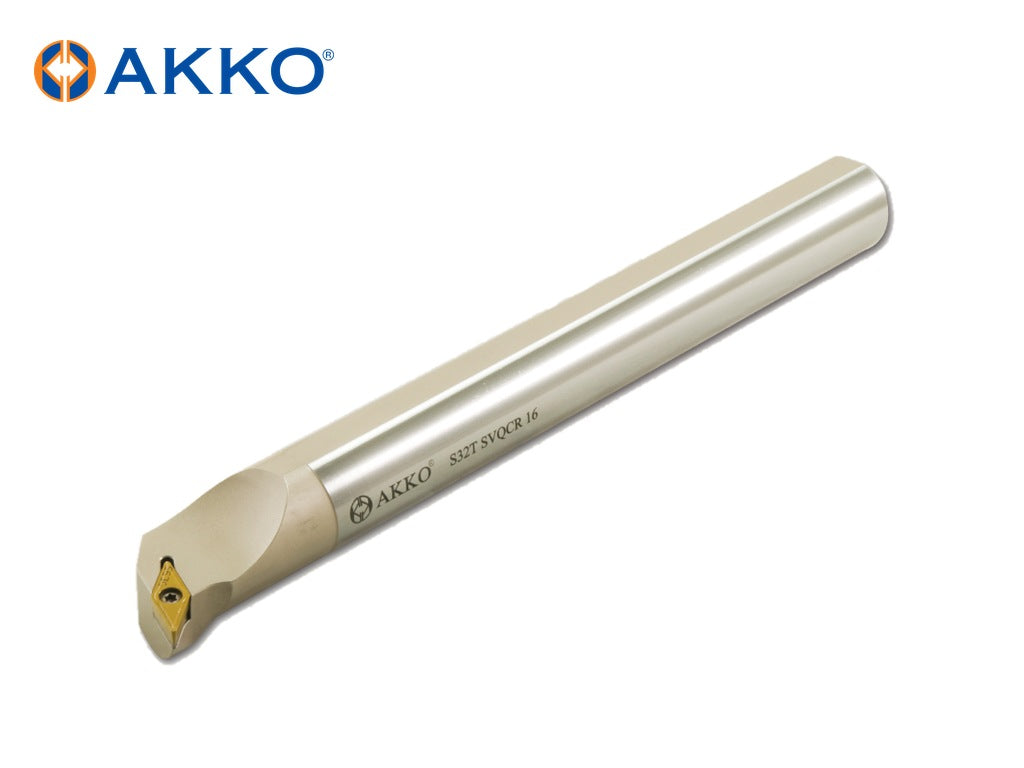

AKKO SVQCR/L S-System Boring Bar

Out of stock
SKU: A16M SVQCL 11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedA16M SVQCL 11 SKUA16M SVQCL 11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SVQCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: VC.. 1103.., VC.. 1604.. 22 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Type Of Bar: Steel Body
  • Insert Style: VC..
  • Side Cutting Angle (KAPR): 107.5°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Coolant Through Insert Size
A16M SVQCL 11 L 16 150 11 ≥20 mm Yes 1103..
A16M SVQCR 11 R 16 150 11 ≥20 mm Yes 1103..
A20P SVQCL 11 L 20 170 13 ≥25 mm Yes 1103..
A20P SVQCR 11 R 20 170 13 ≥25 mm Yes 1103..
A25R SVQCL 16 L 25 200 17 ≥32 mm Yes 1604..
A25R SVQCR 16 R 25 200 17 ≥32 mm Yes 1604..
A32S SVQCL 16 L 32 250 22 ≥40 mm Yes 1604..
A32S SVQCR 16 R 32 250 22 ≥40 mm Yes 1604..
A40T SVQCL 16 L 40 300 27 ≥50 mm Yes 1604..
A40T SVQCR 16 R 40 300 27 ≥50 mm Yes 1604..
S16P SVQCL 11 L 16 170 11 ≥20 mm No 1103..
S16P SVQCR 11 R 16 170 11 ≥20 mm No 1103..
S20R SVQCL 11 L 20 200 13 ≥25 mm No 1103..
S20R SVQCR 11 R 20 200 13 ≥25 mm No 1103..
S25S SVQCL 16 L 25 250 17 ≥32 mm No 1604..
S25S SVQCL 16-Z L 25 250 17 ≥32 mm No 1604..
S25S SVQCR 16 R 25 250 17 ≥32 mm No 1604..
S25S SVQCR 16-Z R 25 250 17 ≥32 mm No 1604..
S32T SVQCL 16 L 32 300 22 ≥40 mm No 1604..
S32T SVQCR 16 R 32 300 22 ≥40 mm No 1604..
S40U SVQCL 16 L 40 350 27 ≥50 mm No 1604..
S40U SVQCR 16 R 40 350 27 ≥50 mm No 1604..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw Set Screw
A16M SVQCL 11 82-T08 4008-M2.5X6 – – –
A16M SVQCR 11 82-T08 4008-M2.5X6 – – –
A20P SVQCL 11 82-T08 4008-M2.5X6 – – –
A20P SVQCR 11 82-T08 4008-M2.5X6 – – –
A25R SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-08-M3.5X8 2725-M5x6
A25R SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-08-M3.5X8 2725-M5x6
A32S SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
A32S SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
A40T SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
A40T SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 2725-M5x6
S16P SVQCL 11 82-T08 4008-M2.5X6 – – –
S16P SVQCR 11 82-T08 4008-M2.5X6 – – –
S20R SVQCL 11 82-T08 4008-M2.5X6 – – –
S20R SVQCR 11 82-T08 4008-M2.5X6 – – –
S25S SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-08-M3.5X8 –
S25S SVQCL 16-Z 80-T15 4015-M3.5X14 – – –
S25S SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-08-M3.5X8 –
S25S SVQCR 16-Z 80-T15 4015-M3.5X14 – – –
S32T SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S32T SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S40U SVQCL 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –
S40U SVQCR 16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
