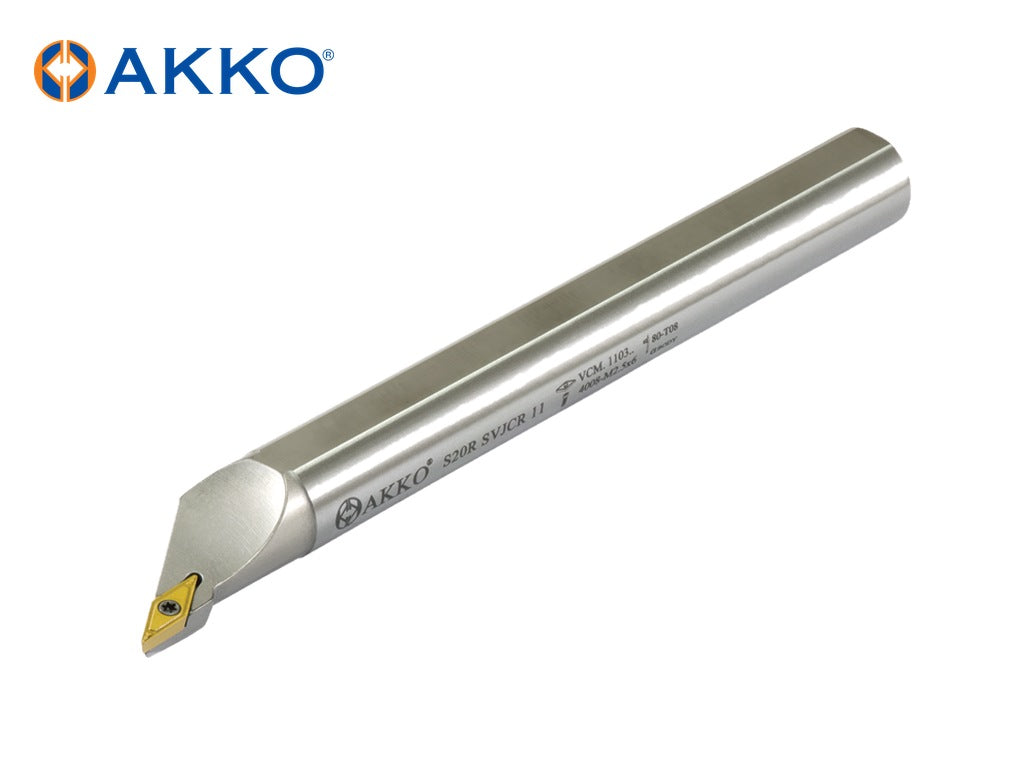

AKKO SVJCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: VC.. 1103.. 12 sizes listed below.

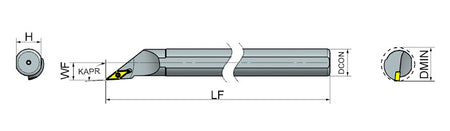

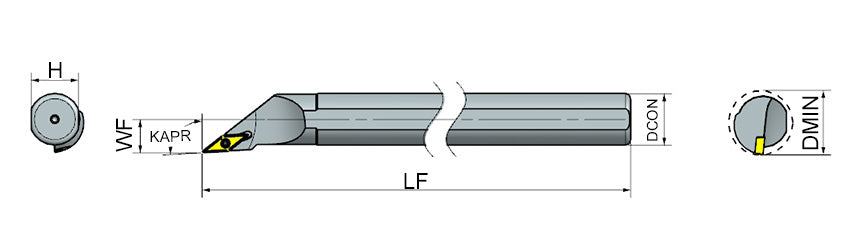

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through |
|---|---|---|---|---|---|---|
| A12H SVJCL 11 | L | 12 | 100 | 7 | ≥13 mm | Yes |
| A12H SVJCR 11 | R | 12 | 100 | 7 | ≥13 mm | Yes |
| A16M SVJCL 11 | L | 16 | 150 | 11 | ≥20 mm | Yes |
| A16M SVJCR 11 | R | 16 | 150 | 11 | ≥20 mm | Yes |
| A20P SVJCL 11 | L | 20 | 170 | 13 | ≥25 mm | Yes |
| A20P SVJCR 11 | R | 20 | 170 | 13 | ≥25 mm | Yes |
| S12K SVJCL 11 | L | 12 | 125 | 7 | ≥13 mm | No |
| S12K SVJCR 11 | R | 12 | 125 | 7 | ≥13 mm | No |
| S16P SVJCL 11 | L | 16 | 170 | 11 | ≥20 mm | No |
| S16P SVJCR 11 | R | 16 | 170 | 11 | ≥20 mm | No |
| S20R SVJCL 11 | L | 20 | 200 | 13 | ≥25 mm | No |
| S20R SVJCR 11 | R | 20 | 200 | 13 | ≥25 mm | No |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
