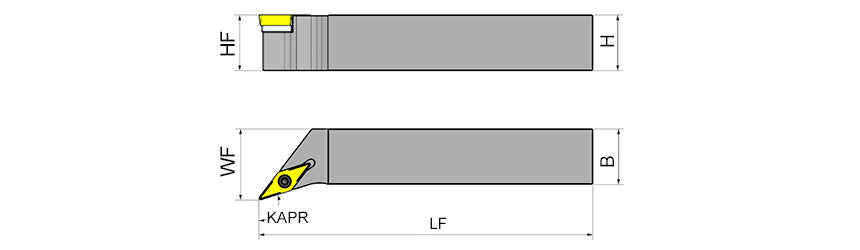

AKKO SVHCR/L S-System External Turning Toolholder - dimension drawing
AKKO SVHCR/L S-System External Turning Toolholder - dimension drawing
AKKO

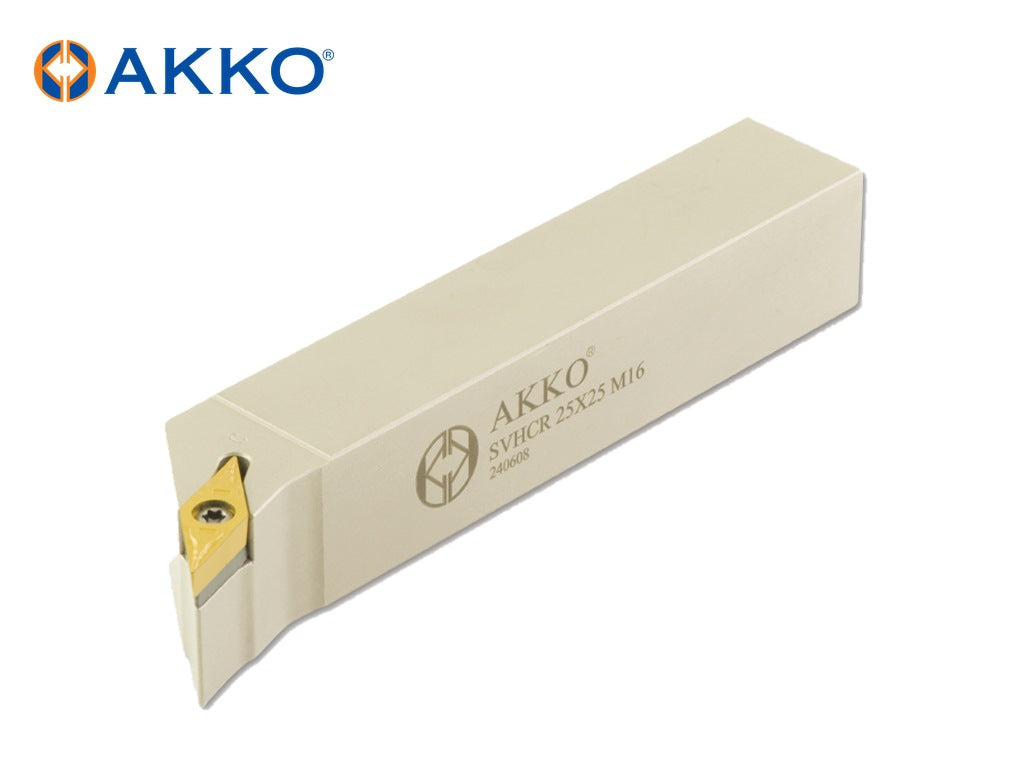

AKKO SVHCR/L S-System External Turning Toolholder

Out of stock
SKU: SVHCL 1212 F11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSVHCL 1212 F11 SKUSVHCL 1212 F11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SVHCR/L – S-System External Turning Toolholder from the AKKO S-System External Turning Toolholders range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: VC.. 11.., VC.. 16.. 12 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: No
  • Side Cutting Angle (KAPR): 107.5°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
SVHCL 1212 F11 L 12 12 80 16 VC.. 11..
SVHCL 1616 H11 L 16 16 100 20 VC.. 11..
SVHCL 2020 K11 L 20 20 125 25 VC.. 11..
SVHCL 2020 K16 L 20 20 125 25 VC.. 16..
SVHCL 2525 M16 L 25 25 150 32 VC.. 16..
SVHCL 3232 P16 L 32 32 170 40 VC.. 16..
SVHCR 1212 F11 R 12 12 80 16 VC.. 11..
SVHCR 1616 H11 R 16 16 100 20 VC.. 11..
SVHCR 2020 K11 R 20 20 125 25 VC.. 11..
SVHCR 2020 K16 R 20 20 125 25 VC.. 16..
SVHCR 2525 M16 R 25 25 150 32 VC.. 16..
SVHCR 3232 P16 R 32 32 170 40 VC.. 16..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw
SVHCL 1212 F11 82-T08 4008-M2.5X6 – –
SVHCL 1616 H11 82-T08 4008-M2.5X6 – –
SVHCL 2020 K11 82-T08 4008-M2.5X6 – –
SVHCL 2020 K16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHCL 2525 M16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHCL 3232 P16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHCR 1212 F11 82-T08 4008-M2.5X6 – –
SVHCR 1616 H11 82-T08 4008-M2.5X6 – –
SVHCR 2020 K11 82-T08 4008-M2.5X6 – –
SVHCR 2020 K16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHCR 2525 M16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHCR 3232 P16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
