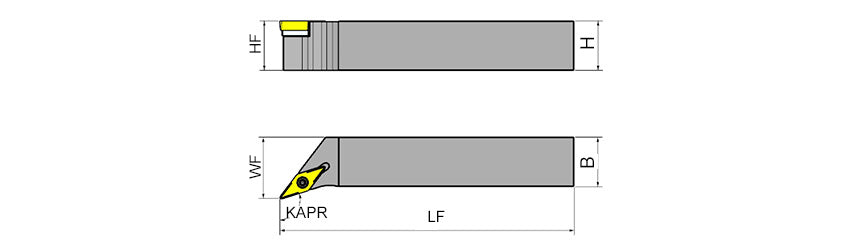

AKKO SVHBR/L S-System External Turning Toolholder - dimension drawing
AKKO SVHBR/L S-System External Turning Toolholder - dimension drawing
AKKO

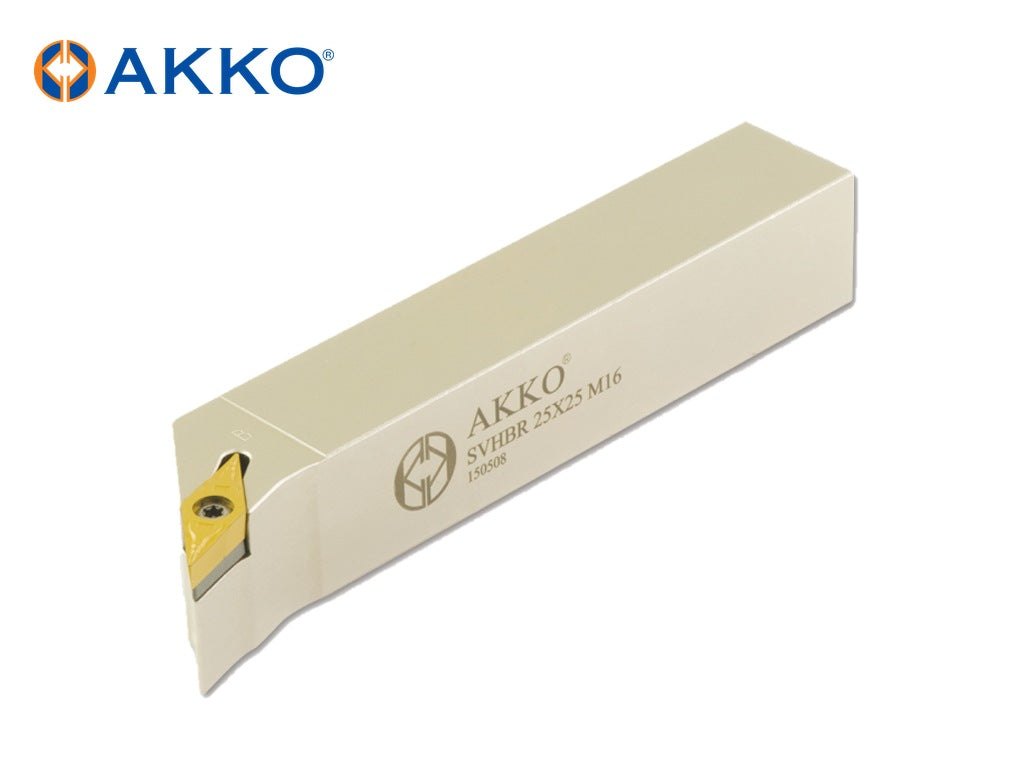

AKKO SVHBR/L S-System External Turning Toolholder

Out of stock
SKU: SVHBL 1212 F11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSVHBL 1212 F11 SKUSVHBL 1212 F11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SVHBR/L – S-System External Turning Toolholder from the AKKO S-System External Turning Toolholders range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: VB.. 11.., VB.. 16.. 12 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: No
  • Side Cutting Angle (KAPR): 107.5°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
SVHBL 1212 F11 L 12 12 80 16 VB.. 11..
SVHBL 1616 H11 L 16 16 100 20 VB.. 11..
SVHBL 2020 K11 L 20 20 125 25 VB.. 11..
SVHBL 2020 K16 L 20 20 125 25 VB.. 16..
SVHBL 2525 M16 L 25 25 150 32 VB.. 16..
SVHBL 3232 P16 L 32 32 170 40 VB.. 16..
SVHBR 1212 F11 R 12 12 80 16 VB.. 11..
SVHBR 1616 H11 R 16 16 100 20 VB.. 11..
SVHBR 2020 K11 R 20 20 125 25 VB.. 11..
SVHBR 2020 K16 R 20 20 125 25 VB.. 16..
SVHBR 2525 M16 R 25 25 150 32 VB.. 16..
SVHBR 3232 P16 R 32 32 170 40 VB.. 16..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw
SVHBL 1212 F11 82-T08 4008-M2.5X6 – –
SVHBL 1616 H11 82-T08 4008-M2.5X6 – –
SVHBL 2020 K11 82-T08 4008-M2.5X6 – –
SVHBL 2020 K16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHBL 2525 M16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHBL 3232 P16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHBR 1212 F11 82-T08 4008-M2.5X6 – –
SVHBR 1616 H11 82-T08 4008-M2.5X6 – –
SVHBR 2020 K11 82-T08 4008-M2.5X6 – –
SVHBR 2020 K16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHBR 2525 M16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11
SVHBR 3232 P16 82-T15 4015-M3.5X14 AAVN-2-0002 AAV-06-M3.5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
