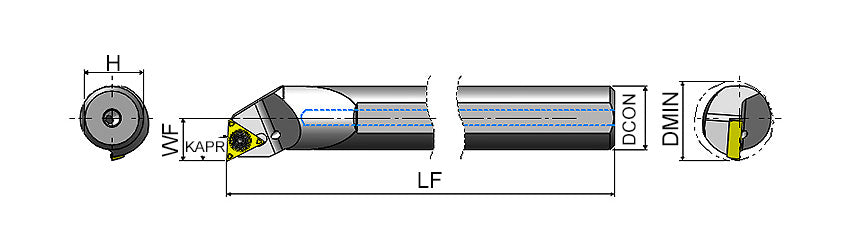

AKKO STUPR/L S-System Carbide Boring Bar - dimension drawing
AKKO STUPR/L S-System Carbide Boring Bar - dimension drawing
AKKO

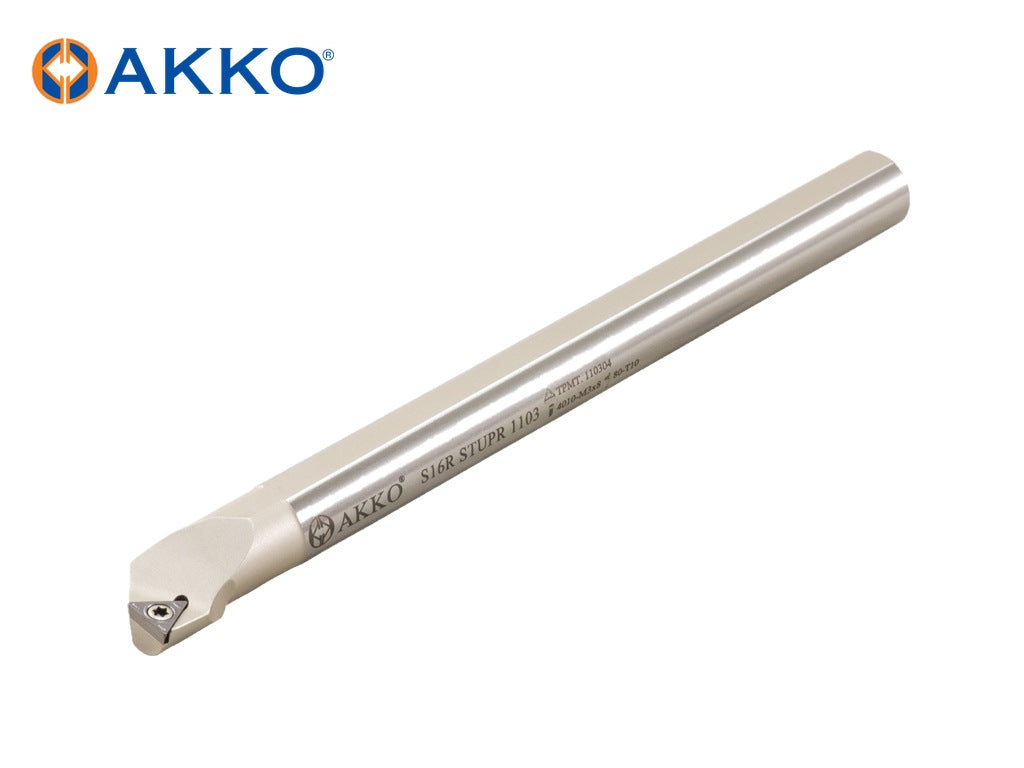

AKKO STUPR/L S-System Carbide Boring Bar

Out of stock
SKU: E12Q STUPL 1103
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedE12Q STUPL 1103 SKUE12Q STUPL 1103

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO STUPR/L – S-System Carbide Boring Bar from the AKKO S-System Carbide Boring Bars range. Available in right-hand and left-hand versions. For inserts: TP.. 1103.. 4 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: Yes
  • Type Of Bar: Carbide Body
  • Insert Size: 1103..
  • Insert Style: TP..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin)
E12Q STUPL 1103 L 12 180 8 ≥15 mm
E12Q STUPR 1103 R 12 180 8 ≥15 mm
E16R STUPL 1103 L 16 200 11 ≥20 mm
E16R STUPR 1103 R 16 200 11 ≥20 mm

Spare parts (AKKO codes)

  • Torx Key: 82-T10
AKKO code Torx Screw
E12Q STUPL 1103 4010-M3X6
E12Q STUPR 1103 4010-M3X6
E16R STUPL 1103 4010-M3X8
E16R STUPR 1103 4010-M3X8

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
