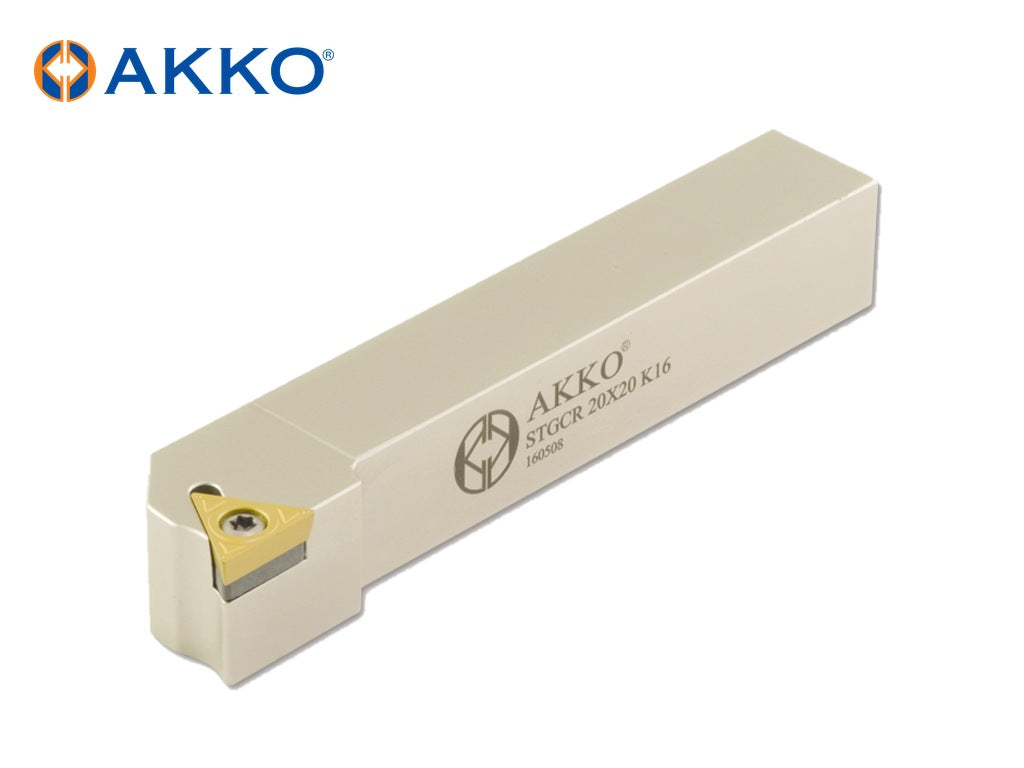

AKKO STGCR/L – S-System External Turning Toolholder from the AKKO S-System External Turning Toolholders range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: TC.. 09.., TC.. 11.., TC.. 16.. 28 sizes listed below.

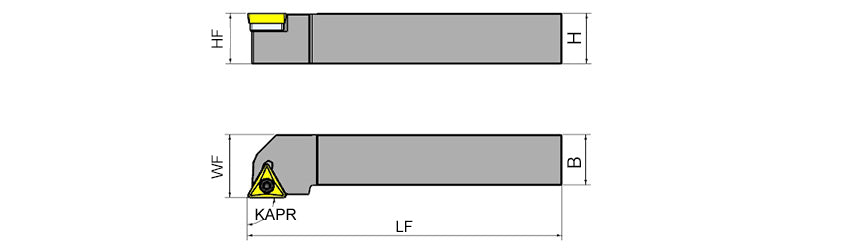

| AKKO code | Hand (R/L) | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Insert (ISO) |
|---|---|---|---|---|---|---|
| STGCL 0808 E09 | L | 8 | 8 | 70 | 10 | TC.. 09.. |
| STGCL 1010 E09 | L | 10 | 10 | 70 | 12 | TC.. 09.. |
| STGCL 1212 F11 | L | 12 | 12 | 80 | 16 | TC.. 11.. |
| STGCL 1216 K11-S | L | 12 | 16 | 125 | 16 | TC.. 11.. |
| STGCL 1216 K16-S | L | 12 | 16 | 125 | 16 | TC.. 16.. |
| STGCL 1216 K16-SHC | L | 12 | 16 | 125 | 16 | TC.. 16.. |
| STGCL 1616 H11 | L | 16 | 16 | 100 | 20 | TC.. 11.. |
| STGCL 1616 H16 | L | 16 | 16 | 100 | 20 | TC.. 16.. |
| STGCL 1616 K11-S | L | 16 | 16 | 125 | 16 | TC.. 11.. |
| STGCL 1616 K16-S | L | 16 | 16 | 125 | 16 | TC.. 16.. |
| STGCL 1616 K16-SHC | L | 16 | 16 | 125 | 16 | TC.. 16.. |
| STGCL 2020 K16 | L | 20 | 20 | 125 | 25 | TC.. 16.. |
| STGCL 2525 M16 | L | 25 | 25 | 150 | 32 | TC.. 16.. |
| STGCL 3232 P16 | L | 32 | 32 | 170 | 40 | TC.. 16.. |
| STGCR 0808 E09 | R | 8 | 8 | 70 | 10 | TC.. 09.. |
| STGCR 1010 E09 | R | 10 | 10 | 70 | 12 | TC.. 09.. |
| STGCR 1212 F11 | R | 12 | 12 | 80 | 16 | TC.. 11.. |
| STGCR 1216 K11-S | R | 12 | 16 | 125 | 16 | TC.. 11.. |
| STGCR 1216 K16-S | R | 12 | 16 | 125 | 16 | TC.. 16.. |
| STGCR 1216 K16-SHC | R | 12 | 16 | 125 | 16 | TC.. 16.. |
| STGCR 1616 H11 | R | 16 | 16 | 100 | 20 | TC.. 11.. |
| STGCR 1616 H16 | R | 16 | 16 | 100 | 20 | TC.. 16.. |
| STGCR 1616 K11-S | R | 16 | 16 | 125 | 16 | TC.. 11.. |
| STGCR 1616 K16-S | R | 16 | 16 | 125 | 16 | TC.. 16.. |
| STGCR 1616 K16-SHC | R | 16 | 16 | 125 | 16 | TC.. 16.. |
| STGCR 2020 K16 | R | 20 | 20 | 125 | 25 | TC.. 16.. |
| STGCR 2525 M16 | R | 25 | 25 | 150 | 32 | TC.. 16.. |
| STGCR 3232 P16 | R | 32 | 32 | 170 | 40 | TC.. 16.. |
| AKKO code | Torx Key | Torx Screw | Set Screw | Shim | Shim Screw |
|---|---|---|---|---|---|
| STGCL 0808 E09 | 82-T07 | 3007-M2.2X4.6 | – | – | – |
| STGCL 1010 E09 | 82-T07 | 3007-M2.2X4.6 | – | – | – |
| STGCL 1212 F11 | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCL 1216 K11-S | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCL 1216 K16-S | 82-T15 | 4015-M3.5X11 | – | – | – |
| STGCL 1216 K16-SHC | 82-T15 | 4015-M3.5X11 | 2702-M4X4, 2703-M6X4 | – | – |
| STGCL 1616 H11 | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCL 1616 H16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCL 1616 K11-S | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCL 1616 K16-S | 82-T15 | 4015-M3.5X11 | – | – | – |
| STGCL 1616 K16-SHC | 82-T15 | 4015-M3.5X11 | 2702-M4X4, 2704-M8x1x5 | – | – |
| STGCL 2020 K16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCL 2525 M16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCL 3232 P16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCR 0808 E09 | 82-T07 | 3007-M2.2X4.6 | – | – | – |
| STGCR 1010 E09 | 82-T07 | 3007-M2.2X4.6 | – | – | – |
| STGCR 1212 F11 | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCR 1216 K11-S | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCR 1216 K16-S | 82-T15 | 4015-M3.5X11 | – | – | – |
| STGCR 1216 K16-SHC | 82-T15 | 4015-M3.5X11 | 2703-M6X4 , 2702-M4X4 | – | – |
| STGCR 1616 H11 | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCR 1616 H16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCR 1616 K11-S | 82-T08 | 4008-M2.5X6 | – | – | – |
| STGCR 1616 K16-S | 82-T15 | 4015-M3.5X11 | – | – | – |
| STGCR 1616 K16-SHC | 82-T15 | 4015-M3.5X11 | 2704-M8x1x5, 2702-M4X4 | – | – |
| STGCR 2020 K16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCR 2525 M16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
| STGCR 3232 P16 | 82-T15 | 4015-M3.5X14 | – | AATN-2-0001 | AAV-06-M3.5X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
