AKKO STFPR/L Boring Head

Out of stock
SKU: STFPR-D29x35
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSTFPR-D29x35 SKUSTFPR-D29x35

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

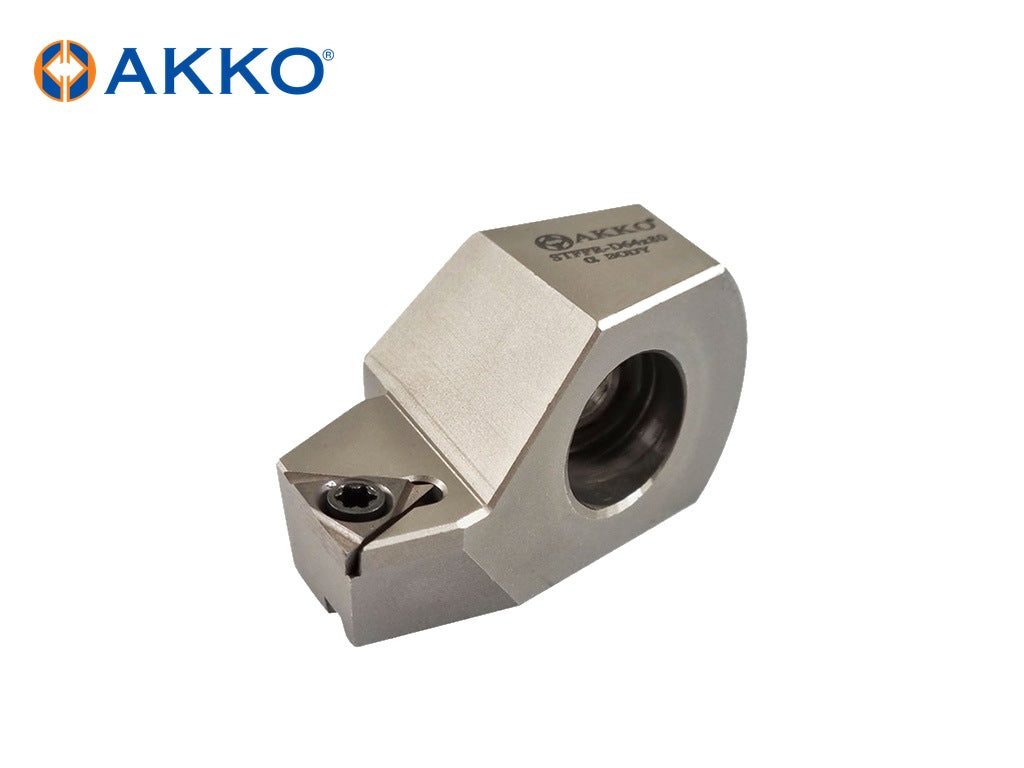

AKKO STFPR/L – Boring Head from the AKKO Adjustable Fine and Rough Boring Heads range. For inserts: TPGX 090202L. 8 sizes listed below.

Specifications

  • Insert Style: TPGX 090202L
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Functional Length (LF, mm) Functional Width (WF, mm) Minimum Cutting Diameter (DCN, mm) Min - Max Cutting Diameter (DCN-DCX) Maximum Cutting Diameter (DCX, mm)
STFPR-D29x35 21.90 10 29 29-35 35
STFPR-D34x40 21.90 12.50 34 34-40 40
STFPR-D39x47 26.90 12 39 39-47 47
STFPR-D46x54 26.90 15.50 46 46-54 54
STFPR-D52x68 34.90 14 52 52-68 68
STFPR-D64x80 34.90 20 64 64-80 80
STFPR-D78x98 44.90 20 78 78-98 98
STFPR-D96x116 44.90 29 96 96-116 116

Spare parts (AKKO codes)

  • Torx Key: 82-T08
  • Torx Screw: 4008-M2.5X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
