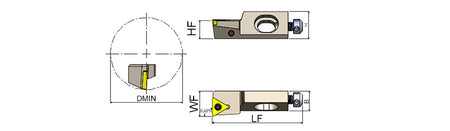

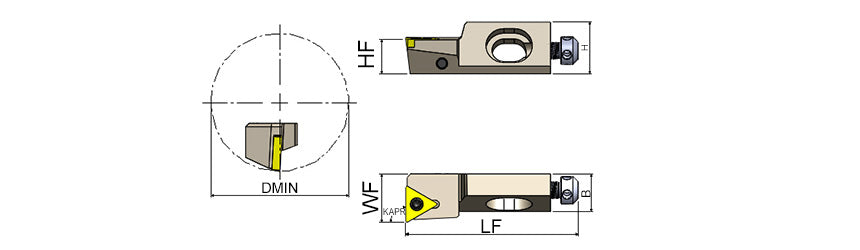

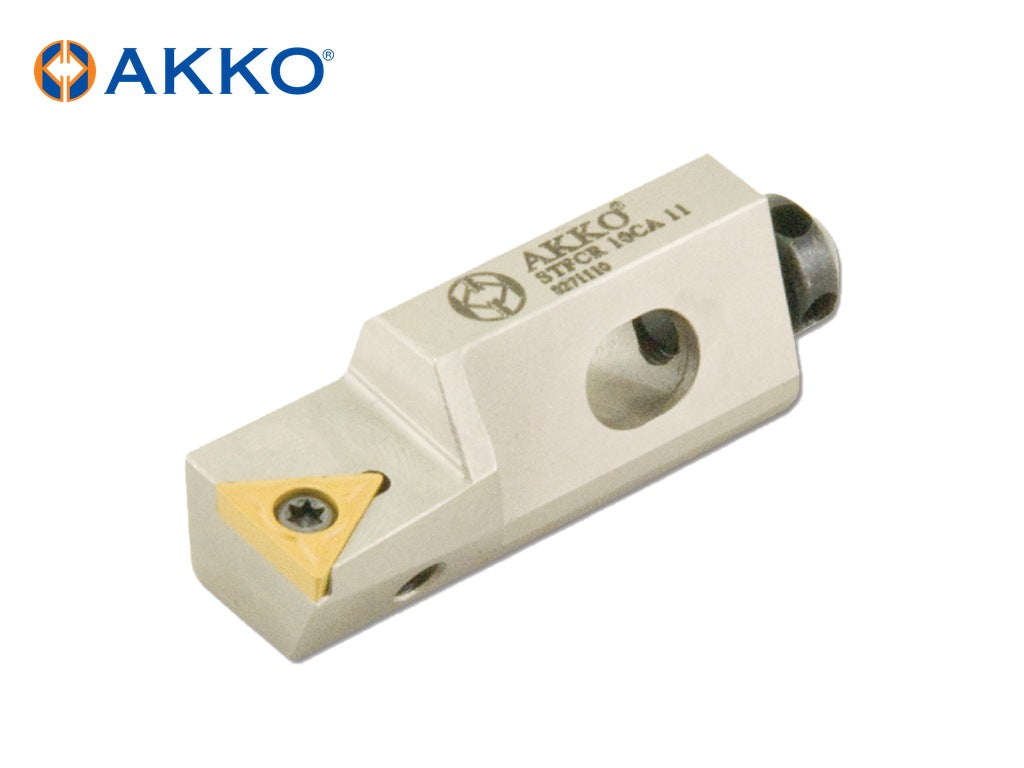

AKKO STFCR/L – S-System Cartridge from the AKKO S-System Cartridges range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: TC.. 090204, TC.. 110204, TC.. 16T3.. 8 sizes listed below.
| AKKO code | Hand (R/L) | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Functional Height (HF, mm) | Minimum Bore Diameter (Dmin) | Insert Inscribed Circle (mm) | Insert Size |
|---|---|---|---|---|---|---|---|---|---|
| STFCL 08CA 09 | L | 11 | 8 | 32 | 10 | 8 | ≥25 mm | 5.56 | 090204 |
| STFCL 10CA 11 | L | 15 | 11 | 50 | 14 | 10 | ≥25 mm | 6.35 | 110204 |
| STFCL 12CA 16 | L | 20 | 15 | 55 | 20 | 12 | ≥25 mm | 9.525 | 16T3.. |
| STFCL 16CA 16 | L | 21 | 20 | 63 | 25 | 16 | ≥25 mm | 9.525 | 16T3.. |
| STFCR 08CA 09 | R | 11 | 8 | 32 | 10 | 8 | ≥25 mm | 5.56 | 090204 |
| STFCR 10CA 11 | R | 15 | 11 | 50 | 14 | 10 | ≥40 mm | 6.35 | 110204 |
| STFCR 12CA 16 | R | 20 | 15 | 55 | 20 | 12 | ≥50 mm | 9.525 | 16T3.. |
| STFCR 16CA 16 | R | 21 | 20 | 63 | 25 | 16 | ≥60 mm | 9.525 | 16T3.. |
| AKKO code | Allen Key | Adjustment Screw | Clamp Screw | Set Screw | Torx Key | Torx Key-2 | Torx Screw | Allen Key-2 | Hexagon Screw | Shim | Shim Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|
| STFCL 08CA 09 | AAL-09-1.5 | 2600-M4x9.5 | AKV-23-M4X10 | 2715-M3X5 | 82-T07 | 82-T15 | 3007-M2.2X4.6 | – | – | – | – |
| STFCL 10CA 11 | AAL-01-2 | 2600-M5x13 | – | 2702-M4X10 | 82-T08 | – | 4008-M2.5X6 | AAL-07-5 | 2505-M6x16 | – | – |
| STFCL 12CA 16 | AAL-01-2 | 2600-M5x13 | AKV-02-M6X22 | 2702-M4X10 | 82-T15 | – | 4015-M3.5X11 | AAL-03-3 | – | – | – |
| STFCL 16CA 16 | AAL-02-2.5 | 2600-M6x18 | – | 2725-M5X12 | 82-T15 | – | 4015-M3.5X14 | AAL-07-5 | 2005-M8X25 | AATN-2-0001 | AAV-06-M3.5X11 |
| STFCR 08CA 09 | AAL-09-1.5 | 2600-M4x9.5 | AKV-23-M4X10 | 2715-M3X5 | 82-T07 | 82-T15 | 3007-M2.2X4.6 | – | – | – | – |
| STFCR 10CA 11 | AAL-01-2 | 2600-M5x13 | – | 2702-M4X10 | 82-T08 | – | 4008-M2.5X6 | AAL-07-5 | 2505-M6x16 | – | – |
| STFCR 12CA 16 | AAL-01-2 | 2600-M5x13 | AKV-02-M6X22 | 2702-M4X10 | 82-T15 | – | 4015-M3.5X11 | AAL-03-3 | – | – | – |
| STFCR 16CA 16 | AAL-02-2.5 | 2600-M6x18 | – | 2725-M5X12 | 82-T15 | – | 4015-M3.5X14 | AAL-07-5 | 2005-M8X25 | AATN-2-0001 | AAV-06-M3.5X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
