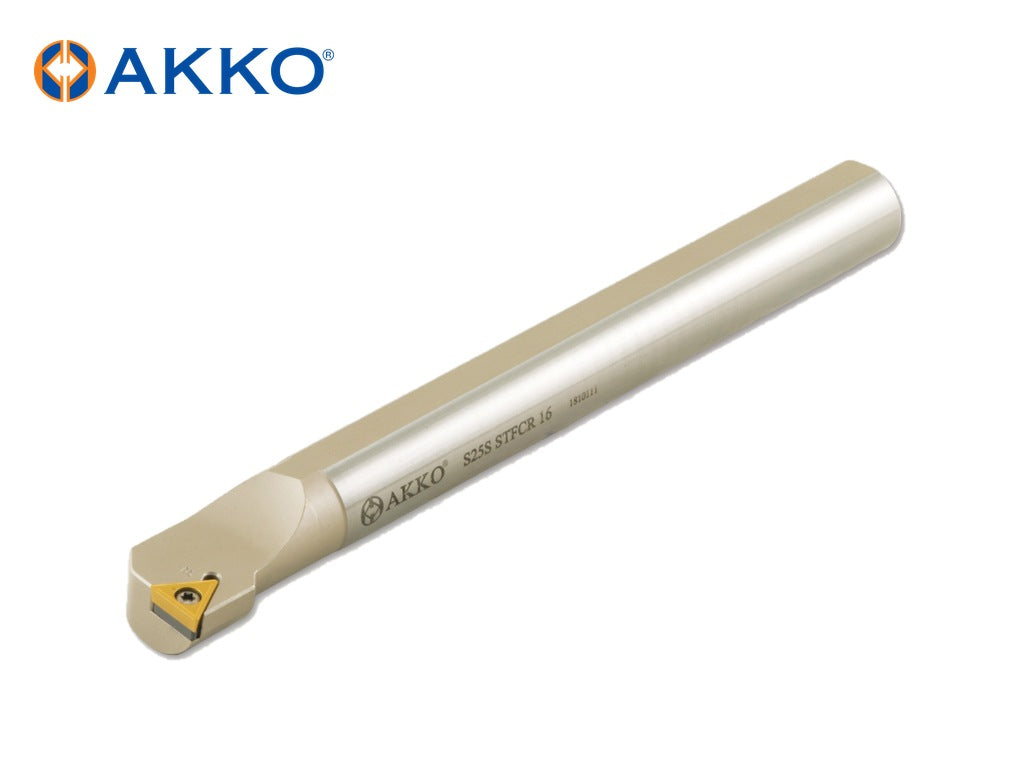

AKKO STFCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: TC.. 06T1.., TC.. 0902.., TC.. 1102.., TC.. 16T3.. 32 sizes listed below.

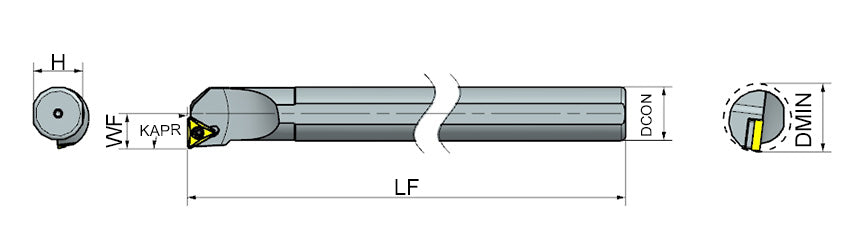

| AKKO code | Hand (R/L) | Body Diameter (BD, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Minimum Overhang (OHN, mm) | Recommended Usable Length (LU, mm) | Coolant Through | Insert Size |
|---|---|---|---|---|---|---|---|---|---|---|
| A10H STFCL 11 | L | – | 10 | 100 | 7 | ≥13 mm | 22 | 22 | Yes | 1102.. |
| A10H STFCR 11 | R | – | 10 | 100 | 7 | ≥13 mm | 22 | 22 | Yes | 1102.. |
| A12H STFCL 11 | L | – | 12 | 100 | 9 | ≥17 mm | 25 | 25 | Yes | 1102.. |
| A12H STFCR 11 | R | – | 12 | 100 | 9 | ≥17 mm | 25 | 25 | Yes | 1102.. |
| A16M STFCL 11 | L | – | 16 | 150 | 11 | ≥20 mm | 35 | 35 | Yes | 1102.. |
| A16M STFCR 11 | R | – | 16 | 150 | 11 | ≥20 mm | 35 | 35 | Yes | 1102.. |
| A20R STFCL 16 | L | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | Yes | 16T3.. |
| A20R STFCR 16 | R | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | Yes | 16T3.. |
| S0610F STFCL 06 | L | 6 | 10 | 80 | 4.5 | ≥08 mm | – | 25 | No | 06T1.. |
| S0610F STFCR 06 | R | 6 | 10 | 80 | 4.5 | ≥08 mm | – | 25 | No | 06T1.. |
| S08H STFCL 06 | L | – | 8 | 100 | 6 | ≥11 mm | 20 | 20 | No | 06T1.. |
| S08H STFCR 06 | R | – | 8 | 100 | 6 | ≥11 mm | 20 | 20 | No | 06T1.. |
| S10K STFCL 09 | L | – | 10 | 125 | 7 | ≥13 mm | 25 | 25 | No | 0902.. |
| S10K STFCR 09 | R | – | 10 | 125 | 7 | ≥13 mm | 25 | 25 | No | 0902.. |
| S12K STFCL 09 | L | – | 12 | 125 | 9 | ≥17 mm | 25 | 25 | No | 0902.. |
| S12K STFCL 11 | L | – | 12 | 125 | 9 | ≥17 mm | 25 | 25 | No | 1102.. |
| S12K STFCR 09 | R | – | 12 | 125 | 9 | ≥17 mm | 25 | 25 | No | 0902.. |
| S12K STFCR 11 | R | – | 12 | 125 | 9 | ≥17 mm | 25 | 25 | No | 1102.. |
| S16P STFCL 11 | L | – | 16 | 170 | 11 | ≥20 mm | 35 | 35 | No | 1102.. |
| S16P STFCL 16 | L | – | 16 | 170 | 11 | ≥20 mm | 35 | 35 | No | 16T3.. |
| S16P STFCR 11 | R | – | 16 | 170 | 11 | ≥20 mm | 35 | 35 | No | 1102.. |
| S16P STFCR 16 | R | – | 16 | 170 | 11 | ≥20 mm | 35 | 35 | No | 16T3.. |
| S20R STFCL 11 | L | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | No | 1102.. |
| S20R STFCL 16 | L | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | No | 16T3.. |
| S20R STFCR 11 | R | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | No | 1102.. |
| S20R STFCR 16 | R | – | 20 | 200 | 13 | ≥25 mm | 40 | 40 | No | 16T3.. |
| S25S STFCL 16 | L | – | 25 | 250 | 17 | ≥32 mm | 50 | 50 | No | 16T3.. |
| S25S STFCR 16 | R | – | 25 | 250 | 17 | ≥32 mm | 50 | 50 | No | 16T3.. |
| S32T STFCL 16 | L | – | 32 | 300 | 22 | ≥40 mm | 60 | 60 | No | 16T3.. |
| S32T STFCR 16 | R | – | 32 | 300 | 22 | ≥40 mm | 60 | 60 | No | 16T3.. |
| S40U STFCL 16 | L | – | 40 | 350 | 27 | ≥50 mm | 70 | 70 | No | 16T3.. |
| S40U STFCR 16 | R | – | 40 | 350 | 27 | ≥50 mm | 70 | 70 | No | 16T3.. |
| AKKO code | Torx Key | Torx Screw | Shim | Shim Screw |
|---|---|---|---|---|
| A10H STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A10H STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A12H STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A12H STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A16M STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A16M STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| A20R STFCL 16 | 82-T15 | 4015-M3.5X11 | – | – |
| A20R STFCR 16 | 82-T15 | 4015-M3.5X11 | – | – |
| S0610F STFCL 06 | 82-T06 | 3006-M2X4 | – | – |
| S0610F STFCR 06 | 82-T06 | 3006-M2X4 | – | – |
| S08H STFCL 06 | 82-T06 | 3006-M2X4 | – | – |
| S08H STFCR 06 | 82-T06 | 3006-M2X4 | – | – |
| S10K STFCL 09 | 82-T07 | 3007-M2.2X4.6 | – | – |
| S10K STFCR 09 | 82-T07 | 3007-M2.2X4.6 | – | – |
| S12K STFCL 09 | 82-T07 | 3007-M2.2X4.6 | – | – |
| S12K STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S12K STFCR 09 | 82-T07 | 3007-M2.2X4.6 | – | – |
| S12K STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P STFCL 16 | 82-T15 | 4015-M3.5X9 | – | – |
| S16P STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P STFCR 16 | 82-T15 | 4015-M3.5X9 | – | – |
| S20R STFCL 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S20R STFCL 16 | 82-T15 | 4015-M3.5X11 | – | – |
| S20R STFCR 11 | 82-T08 | 4008-M2.5X6 | – | – |
| S20R STFCR 16 | 82-T15 | 4015-M3.5X11 | – | – |
| S25S STFCL 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-08-M3.5X8 |
| S25S STFCR 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-08-M3.5X8 |
| S32T STFCL 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-06-M3.5X11 |
| S32T STFCR 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-06-M3.5X11 |
| S40U STFCL 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-06-M3.5X11 |
| S40U STFCR 16 | 82-T15 | 4015-M3.5X14 | AATN-2-0001 | AAV-06-M3.5X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
