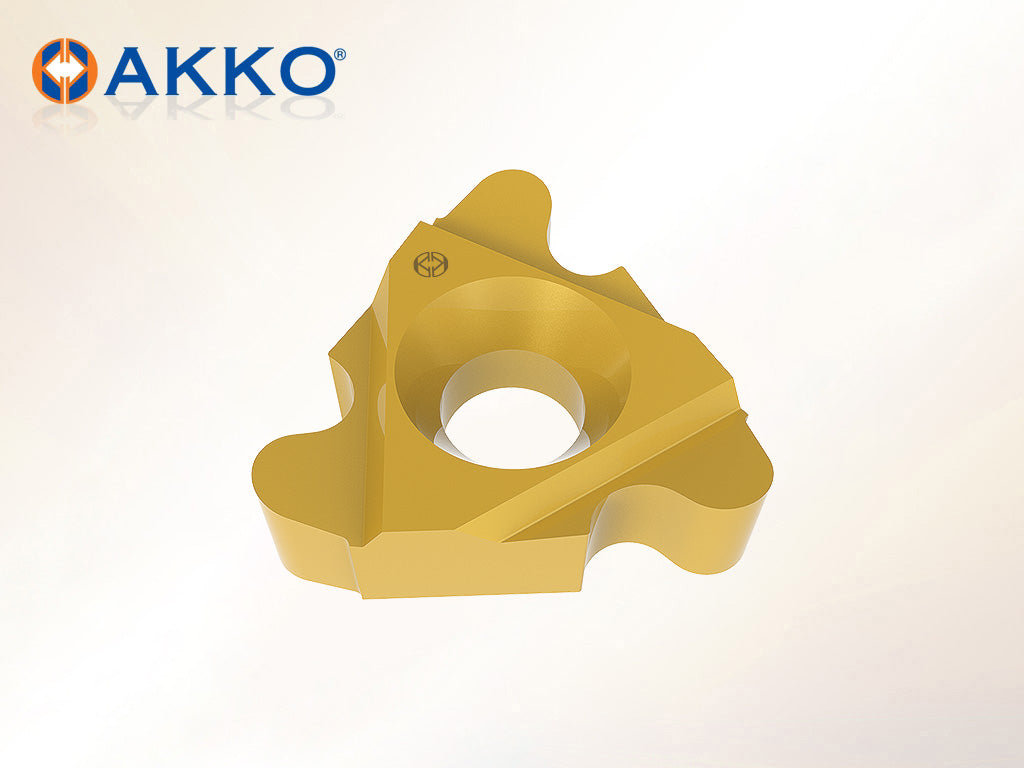

AKKO ST-ER-RD Thread Milling Insert
AKKO ST-ER-RD Thread Milling Insert - dimension drawing
AKKO ST-ER-RD Thread Milling Insert
AKKO ST-ER-RD Thread Milling Insert - dimension drawing
AKKO

AKKO ST-ER-RD Thread Milling Insert

Out of stock
SKU: 16ST ER/L 10RD
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

Selected16ST ER/L 10RD SKU16ST ER/L 10RD

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ST-ER-RD Thread Milling Insert from the AKKO Thread Milling Inserts range. 6 sizes listed below.

Sizes and dimensions (mm)

AKKO code L IC Pitch
16ST ER/L 10RD 16 9.53 10
16ST ER/L 8RD 16 9.53 8
16ST ER/L 6RD 16 9.53 6
22ST ER/L 6RD 22 13 6
22ST ER/L 4RD 22 13 4
27ST ER/L 4RD 27 15.88 4

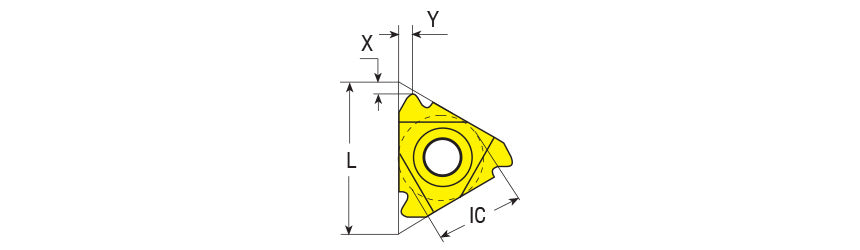

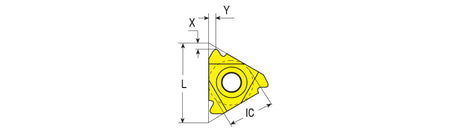

Dimension key (letters as on the drawing):

  • L: Length
  • IC: Inscribed circle

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
