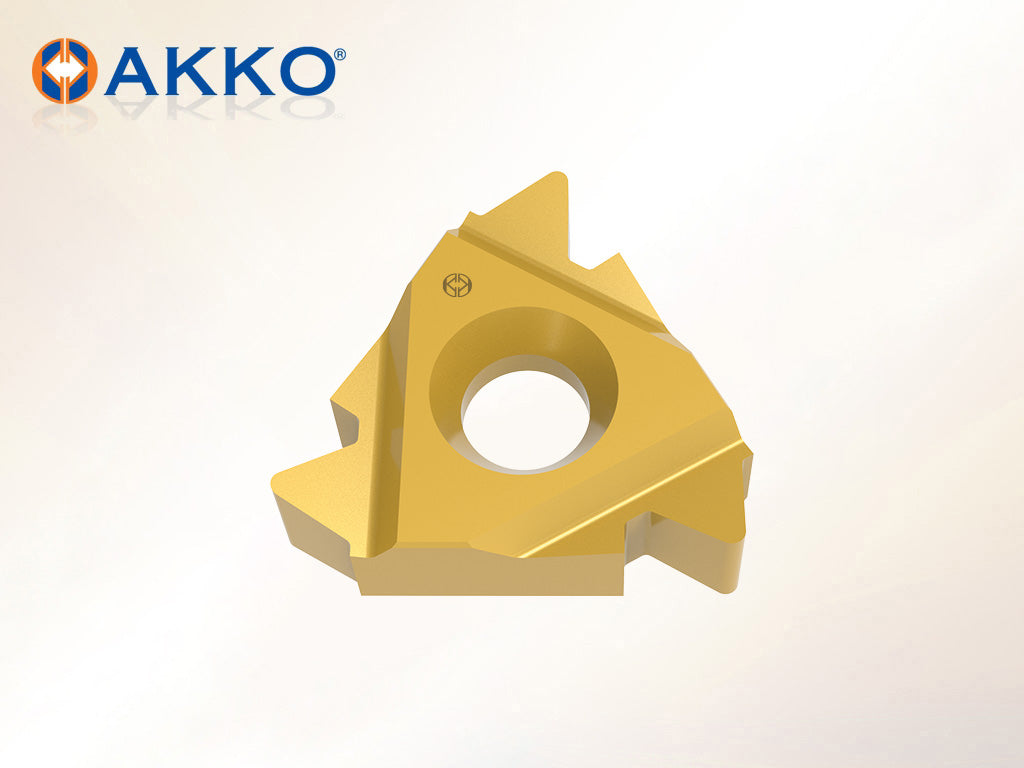

AKKO ST-ER-API Thread Milling Insert

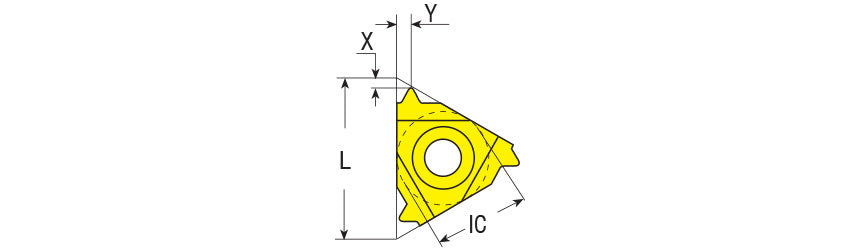

AKKO ST-ER-API Thread Milling Insert - dimension drawing
AKKO ST-ER-API Thread Milling Insert
AKKO ST-ER-API Thread Milling Insert - dimension drawing
AKKO

AKKO ST-ER-API Thread Milling Insert

Out of stock
SKU: 22ST ER 4APIV382
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

Selected22ST ER 4APIV382 SKU22ST ER 4APIV382

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ST-ER-API Thread Milling Insert from the AKKO Thread Milling Inserts range. 12 sizes listed below.

Sizes and dimensions (mm)

AKKO code IC Pitch
22ST ER 4APIV382 13 4
22ST ER 4APIV383 13 4
22ST ER 4APIV502 13 4
22ST ER 4APIV503 13 4
22ST ER 5APIV403 13 5
22ST ER 6APIV551 13 6
27ST ER 4APIV382 15.88 4
27ST ER 4APIV383 15.88 4
27ST ER 4APIV502 15.88 4
27ST ER 4APIV503 15.88 4
27ST ER 5APIV403 15.88 5
27ST ER 4APIV652 15.88 4

Dimension key (letters as on the drawing):

  • IC: Inscribed circle

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
