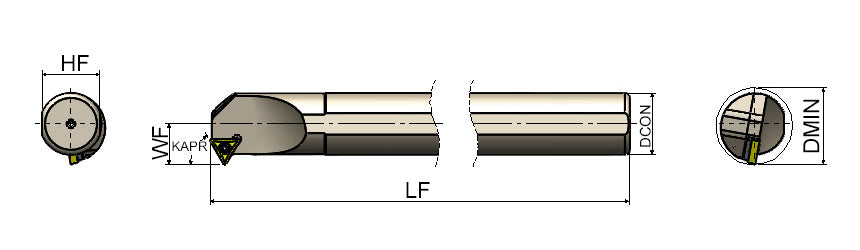

AKKO ST-CR/L S-System Boring Bar - dimension drawing

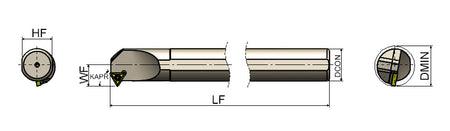

AKKO ST-CR/L S-System Boring Bar - dimension drawing
AKKO

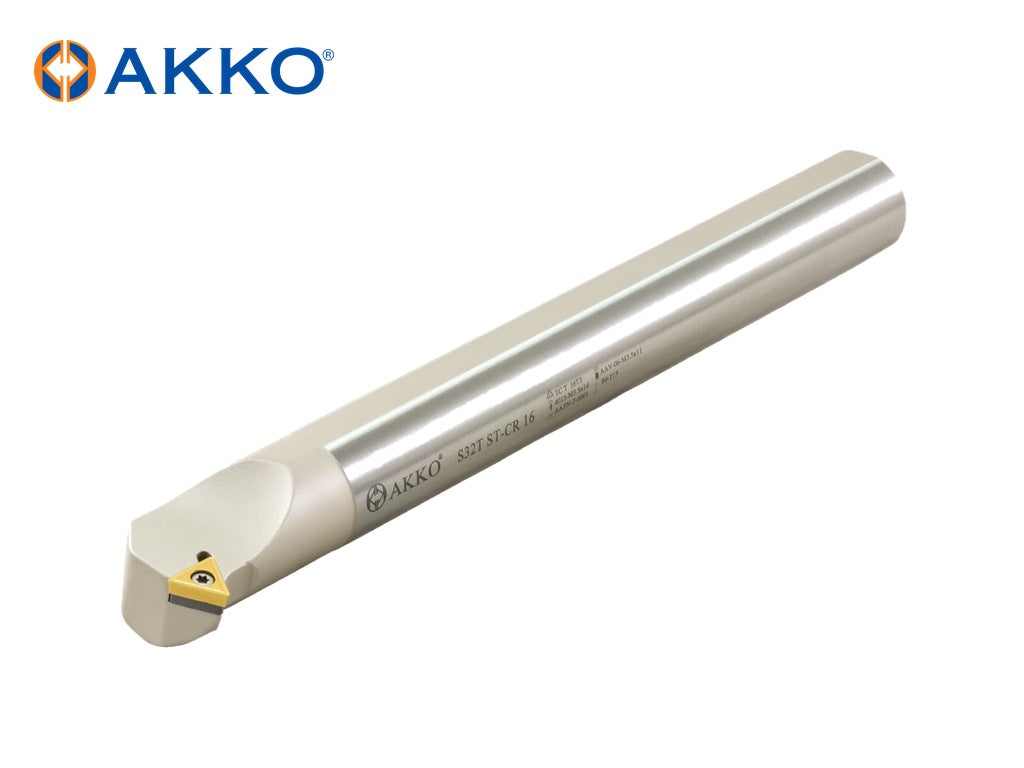

AKKO ST-CR/L S-System Boring Bar

Out of stock
SKU: S12K ST-CL 11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS12K ST-CL 11 SKUS12K ST-CL 11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ST-CR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: TC.. 1102.., TC.. 16T3.. 17 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: TC..
  • Side Cutting Angle (KAPR): 60°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S12K ST-CL 11 L 12 125 9 ≥17 mm 1102..
S12K ST-CR 11 R 12 125 9 ≥17 mm 1102..
S16P ST-CL 11 L 16 170 11 ≥20 mm 1102..
S16P ST-CL 16 L 16 170 11 ≥20 mm 16T3..
S16P ST-CR 11 R 16 170 11 ≥20 mm 1102..
S16P ST-CR 16 R 16 170 11 ≥20 mm 16T3..
S20R ST-CL 11 L 20 200 13 ≥25 mm 1102..
S20R ST-CL 16 L 20 200 13 ≥25 mm 16T3..
S20R ST-CR 11 R 20 200 13 ≥25 mm 1102..
S20R ST-CR 16 R 20 200 13 ≥25 mm 16T3..
S25S ST-CL 16 L 25 250 17 ≥32 mm 16T3..
S25S ST-CL 16-Z L 25 250 17 ≥32 mm 16T3..
S25S ST-CR 16 R 25 250 17 ≥32 mm 16T3..
S32T ST-CL 16 L 32 300 22 ≥40 mm 16T3..
S32T ST-CR 16 R 32 300 22 ≥40 mm 16T3..
S40U ST-CL 16 L 40 350 27 ≥50 mm 16T3..
S40U ST-CR 16 R 40 350 27 ≥50 mm 16T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw
S12K ST-CL 11 82-T08 4008-M2.5X6 – –
S12K ST-CR 11 82-T08 4008-M2.5X6 – –
S16P ST-CL 11 82-T08 4008-M2.5X6 – –
S16P ST-CL 16 82-T15 4015-M3.5X9 – –
S16P ST-CR 11 82-T08 4008-M2.5X6 – –
S16P ST-CR 16 82-T15 4015-M3.5X9 – –
S20R ST-CL 11 82-T08 4008-M2.5X6 – –
S20R ST-CL 16 82-T15 4015-M3.5X11 – –
S20R ST-CR 11 82-T08 4008-M2.5X6 – –
S20R ST-CR 16 82-T15 4015-M3.5X11 – –
S25S ST-CL 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-08-M3.5X8
S25S ST-CL 16-Z 80-T15 4015-M3.5X14 – –
S25S ST-CR 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-08-M3.5X8
S32T ST-CL 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-06-M3.5X11
S32T ST-CR 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-06-M3.5X11
S40U ST-CL 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-06-M3.5X11
S40U ST-CR 16 82-T15 4015-M3.5X14 AATN-2-0001 AAV-06-M3.5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
