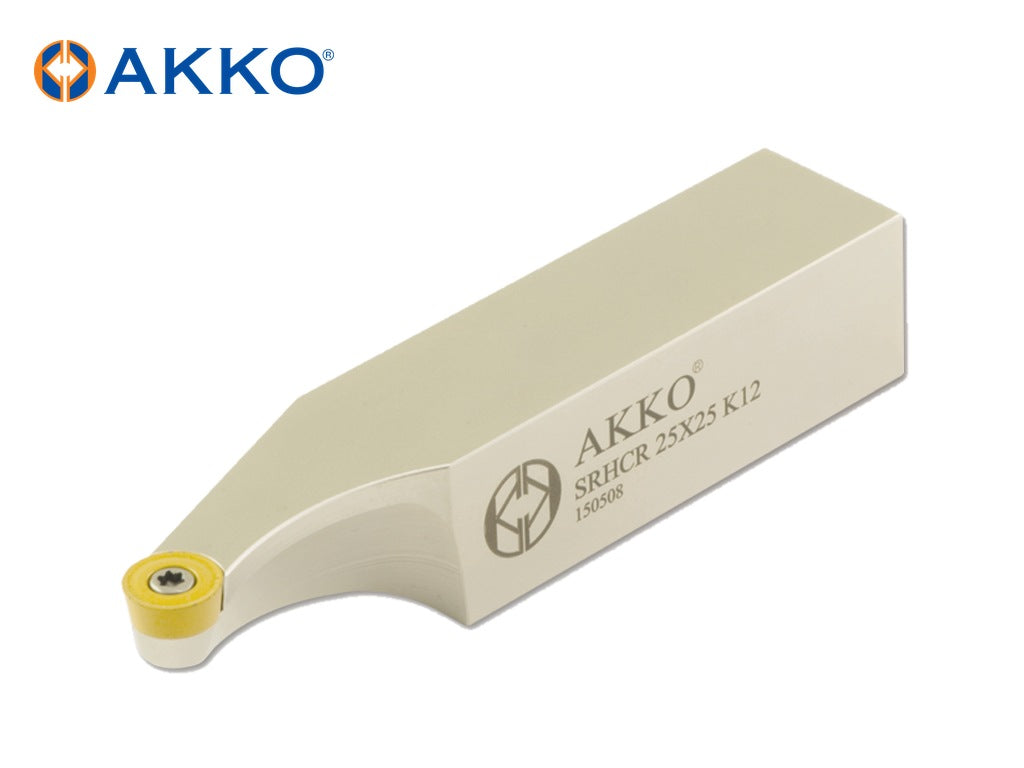

AKKO SRHCR/L – S-System External Turning Toolholder from the AKKO S-System External Turning Toolholders range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: RC.. 06.., RC.. 08.., RC.. 10.., RC.. 12.., RC.. 16.. 10 sizes listed below.

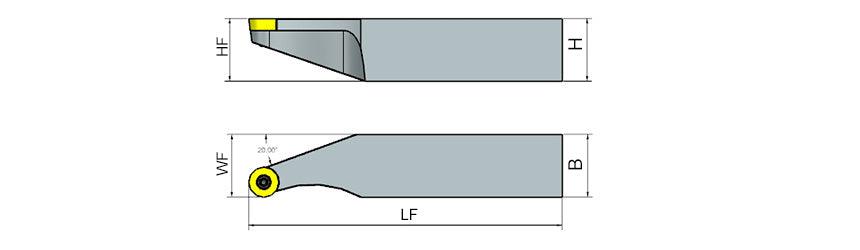

| AKKO code | Hand (R/L) | Functional Width (WF, mm) | Insert (ISO) |
|---|---|---|---|
| SRHCL 2525 K06 | L | 32.5 | RC.. 06.. |
| SRHCL 2525 K08 | L | 32.5 | RC.. 08.. |
| SRHCL 2525 K10 | L | 36 | RC.. 10.. |
| SRHCL 2525 K12 | L | 40 | RC.. 12.. |
| SRHCL 2525 K16 | L | 47.5 | RC.. 16.. |
| SRHCR 2525 K06 | R | 32.5 | RC.. 06.. |
| SRHCR 2525 K08 | R | 32.5 | RC.. 08.. |
| SRHCR 2525 K10 | R | 36 | RC.. 10.. |
| SRHCR 2525 K12 | R | 40 | RC.. 12.. |
| SRHCR 2525 K16 | R | 47.5 | RC.. 16.. |
| AKKO code | Torx Key | Torx Screw |
|---|---|---|
| SRHCL 2525 K06 | 82-T08 | 3008-M2.5X6 |
| SRHCL 2525 K08 | 82-T08 | 3008-M3X8 |
| SRHCL 2525 K10 | 82-T15 | 4015-M3.5X11 |
| SRHCL 2525 K12 | 82-T15 | 4015-M3.5X11 |
| SRHCL 2525 K16 | 80-T20 | 1020-M5X11 |
| SRHCR 2525 K06 | 82-T08 | 3008-M2.5X6 |
| SRHCR 2525 K08 | 82-T08 | 3008-M3X8 |
| SRHCR 2525 K10 | 82-T15 | 4015-M3.5X11 |
| SRHCR 2525 K12 | 82-T15 | 4015-M3.5X11 |
| SRHCR 2525 K16 | 80-T20 | 1020-M5X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
