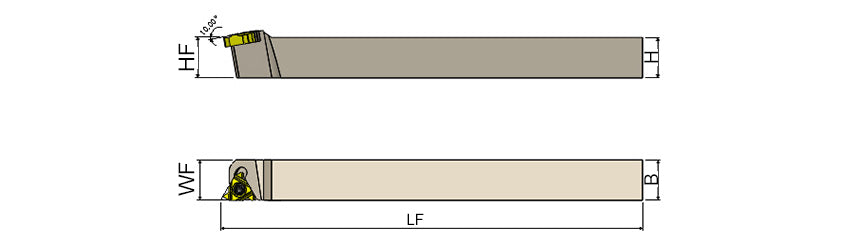

AKKO SER/L-S External Threading Toolholder for Swiss-Type Lathes - dimension drawing
AKKO SER/L-S External Threading Toolholder for Swiss-Type Lathes - dimension drawing
AKKO

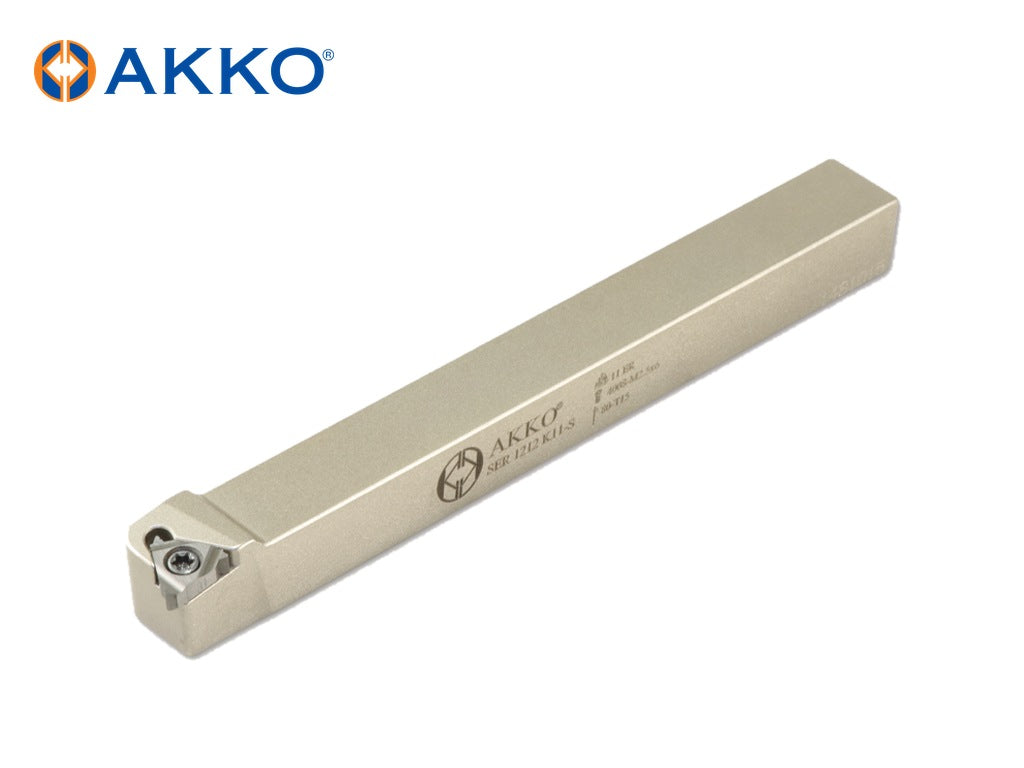

AKKO SER/L-S External Threading Toolholder for Swiss-Type Lathes

Out of stock
SKU: SEL 1010 K11-S
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSEL 1010 K11-S SKUSEL 1010 K11-S

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SER/L-S – External Threading Toolholder for Swiss-Type Lathes from the AKKO External Threading Toolholders for Swiss Type Lathes range. Left-hand version. 3 sizes listed below.

Specifications

  • Cutting Direction: Left Hand
  • Functional Length (LF): 125 mm
  • Tool Type: External

Sizes and dimensions

AKKO code Shank Height (H, mm) Shank Width (B, mm) Functional Width (WF, mm) Insert Inscribed Circle IC (mm)
SEL 1010 K11-S 10 10 10 6.35
SEL 1212 K11-S 12 12 12 6.35
SEL 1212 K16-S 12 12 12 9.525

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw
SEL 1010 K11-S 82-T08 4008-M2.5X6 – –
SEL 1212 K11-S 82-T08 4008-M2.5X6 – –
SEL 1212 K16-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
