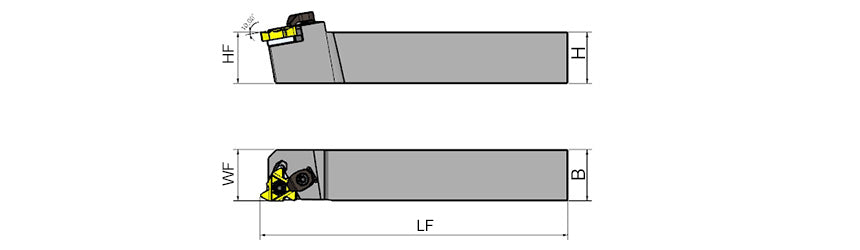

AKKO SER/L External Threading Toolholder - dimension drawing
AKKO SER/L External Threading Toolholder - dimension drawing
AKKO

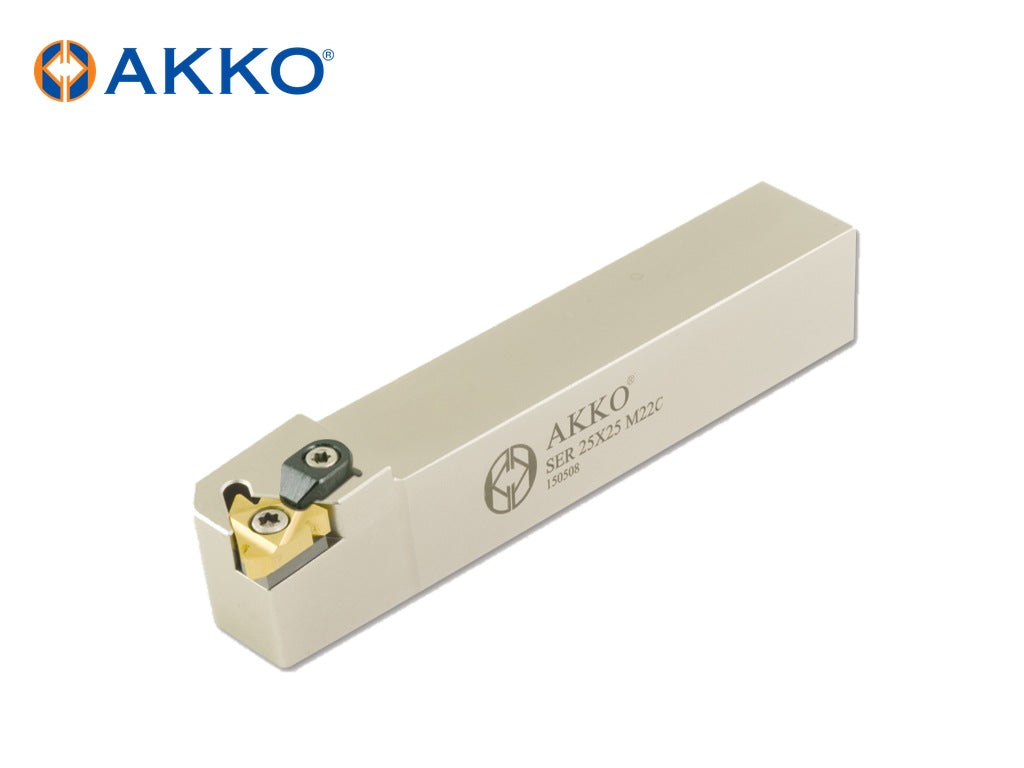

AKKO SER/L External Threading Toolholder

Out of stock
SKU: SEL 0808 E11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSEL 0808 E11 SKUSEL 0808 E11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SER/L – External Threading Toolholder from the AKKO External Threading Toolholders range. Available in right-hand and left-hand versions. 38 sizes listed below.

Specifications

  • Tool Type: External

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert Inscribed Circle IC (mm)
SEL 0808 E11 L 08 08 70 08 6.35
SEL 1010 E11 L 10 10 70 10 6.35
SEL 1212 F11 L 12 12 80 12 6.35
SEL 1616 H11 L 16 16 100 16 6.35
SEL 1616 H16C L 16 16 100 16 9.525
SEL 2020 H11 L 20 20 100 20 6.35
SEL 2020 K16C L 20 20 125 20 9.525
SEL 2020 K16C-S L 20 20 125 20 9.525
SEL 2525 M16C L 25 25 150 25 9.525
SEL 2525 M16C-S L 25 25 150 25 9.525
SEL 2525 M16C-T L 25 25 150 25 9.525
SEL 2525 M22C L 25 25 150 25 12.7
SEL 2525 M22C-T L 25 25 150 25 12.7
SEL 3232 P16C L 32 32 170 32 9.525
SEL 3232 P16C-S L 32 32 170 32 9.525
SEL 3232 P22C L 32 32 170 32 12.7
SEL 4040 S22C L 40 40 250 40 12.7
SER 0808 E11 R 08 08 70 08 6.35
SER 1010 E11 R 10 10 70 10 6.35
SER 1010 K11-S R 10 10 125 10 6.35
SER 1212 F11 R 12 12 80 12 6.35
SER 1212 H16 R 12 12 100 12 9.525
SER 1212 K11-S R 12 12 125 12 6.35
SER 1212 K16-S R 12 12 125 12 9.525
SER 1616 H11 R 16 16 100 16 6.35
SER 1616 H16C R 16 16 100 16 9.525
SER 2020 H11 R 20 20 100 20 6.35
SER 2020 K16C R 20 20 125 20 9.525
SER 2020 K16C-S R 20 20 125 20 9.525
SER 2525 M16C R 25 25 150 25 9.525
SER 2525 M16C-S R 25 25 150 25 9.525
SER 2525 M16C-T R 25 25 150 25 9.525
SER 2525 M22C R 25 25 150 25 12.7
SER 2525 M22C-T R 25 25 150 25 12.7
SER 3232 P16C R 32 32 170 32 9.525
SER 3232 P16C-S R 32 32 170 32 9.525
SER 3232 P22C R 32 32 170 32 12.7
SER 4040 S22C R 40 40 250 40 12.7

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw Clamp Torx Screw-2
SEL 0808 E11 82-T08 4008-M2.5X6 – – – –
SEL 1010 E11 82-T08 4008-M2.5X6 – – – –
SEL 1212 F11 82-T08 4008-M2.5X6 – – – –
SEL 1616 H11 82-T08 4008-M2.5X6 – – – –
SEL 1616 H16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 2020 H11 82-T08 4008-M2.5X6 – – – –
SEL 2020 K16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 2020 K16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 2525 M16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 2525 M16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 2525 M16C-T 82-T15 4015-M3.5X14 – – ACK-05 4015-M4X11
SEL 2525 M22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11
SEL 2525 M22C-T 80-T20 1020-M4.5X16 – – ACK-05 4015-M4X11
SEL 3232 P16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 3232 P16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SEL 3232 P22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11
SEL 4040 S22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11
SER 0808 E11 82-T08 4008-M2.5X6 – – – –
SER 1010 E11 82-T08 4008-M2.5X6 – – – –
SER 1010 K11-S 82-T08 4008-M2.5X6 – – – –
SER 1212 F11 82-T08 4008-M2.5X6 – – – –
SER 1212 H16 82-T15 4015-M3.5X14 AATN-2-0020 AAV-08-M3.5X8 – –
SER 1212 K11-S 82-T08 4008-M2.5X6 – – – –
SER 1212 K16-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-08-M3.5X8 – –
SER 1616 H11 82-T08 4008-M2.5X6 – – – –
SER 1616 H16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 2020 H11 82-T08 4008-M2.5X6 – – – –
SER 2020 K16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 2020 K16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 2525 M16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 2525 M16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 2525 M16C-T 82-T15 4015-M3.5X14 – – ACK-05 4015-M4X11
SER 2525 M22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11
SER 2525 M22C-T 80-T20 1020-M4.5X16 – – ACK-05 4015-M4X11
SER 3232 P16C 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 3232 P16C-S 82-T15 4015-M3.5X14 AATN-2-0020 AAV-06-M3.5X11 ACK-05 4015-M4X11
SER 3232 P22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11
SER 4040 S22C 80-T20 1020-M4.5X16 AATN-2-0004 AAV-07-M4.5X13 ACK-05 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
