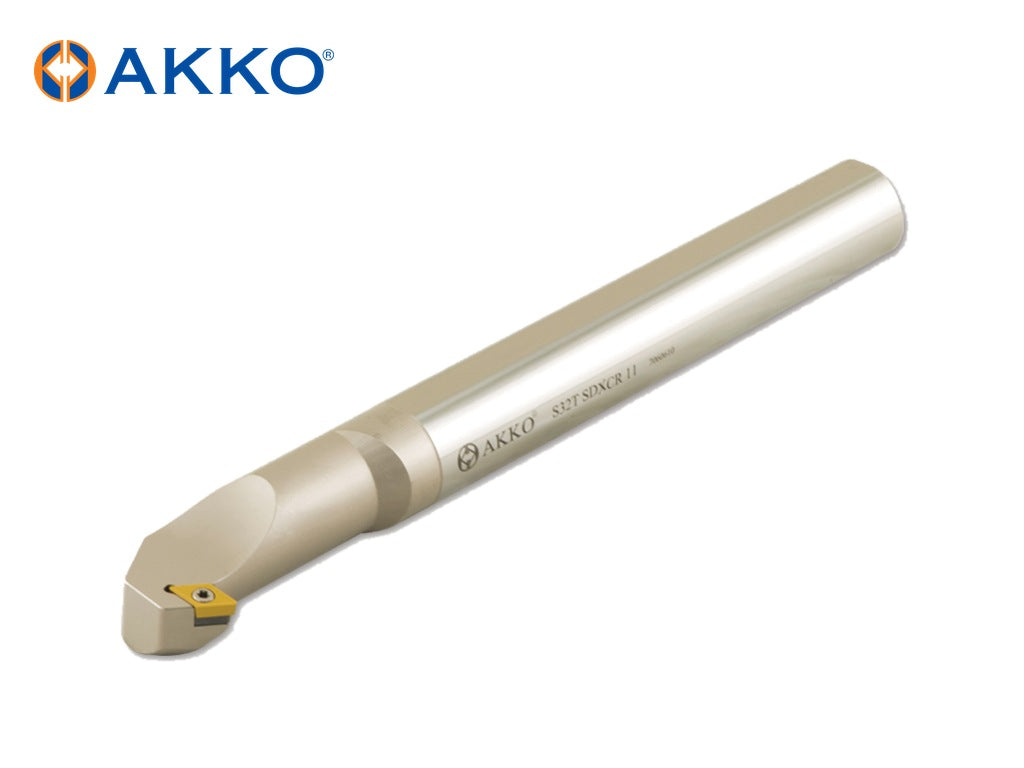

AKKO SDXCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: DC.. 0702.., DC.. 11T3.. 32 sizes listed below.

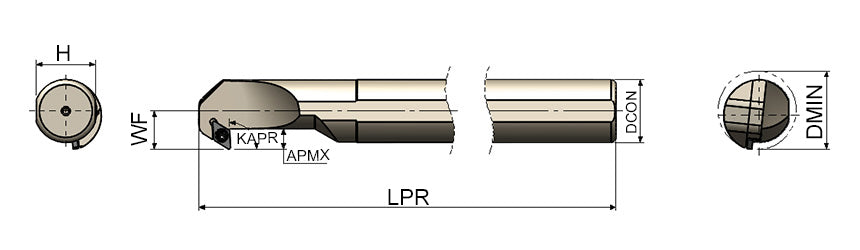

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Maximum Depth of Cut (APMX, mm) | Insert Size |
|---|---|---|---|---|---|---|---|---|
| A12H SDXCL 07 | L | 12 | 100 | 9 | ≥16 mm | Yes | 4.5 | 0702.. |
| A12H SDXCR 07 | R | 12 | 100 | 9 | ≥16 mm | Yes | 4.5 | 0702.. |
| A16M SDXCL 07 | L | 16 | 150 | 11 | ≥20 mm | Yes | 6.5 | 0702.. |
| A16M SDXCL 11 | L | 16 | 150 | 11 | ≥20 mm | Yes | 7.5 | 11T3.. |
| A16M SDXCR 07 | R | 16 | 150 | 11 | ≥20 mm | Yes | 6.5 | 0702.. |
| A16M SDXCR 11 | R | 16 | 150 | 11 | ≥20 mm | Yes | 7.5 | 11T3.. |
| A20P SDXCL 07 | L | 20 | 170 | 13 | ≥25 mm | Yes | 6.5 | 0702.. |
| A20P SDXCL 11 | L | 20 | 170 | 14 | ≥25 mm | Yes | 7.5 | 11T3.. |
| A20P SDXCR 07 | R | 20 | 170 | 13 | ≥25 mm | Yes | 6.5 | 0702.. |
| A20P SDXCR 11 | R | 20 | 170 | 14 | ≥25 mm | Yes | 7.5 | 11T3.. |
| A25R SDXCL 11 | L | 25 | 200 | 17 | ≥32 mm | Yes | 9 | 11T3.. |
| A25R SDXCR 11 | R | 25 | 200 | 17 | ≥32 mm | Yes | 9 | 11T3.. |
| A32S SDXCL 11 | L | 32 | 250 | 22 | ≥40 mm | Yes | 12 | 11T3.. |
| A32S SDXCR 11 | R | 32 | 250 | 22 | ≥40 mm | Yes | 12 | 11T3.. |
| S12K SDXCL 07 | L | 12 | 125 | 9 | ≥16 mm | No | 4.5 | 0702.. |
| S12K SDXCR 07 | R | 12 | 125 | 9 | ≥16 mm | No | 4.5 | 0702.. |
| S16P SDXCL 07 | L | 16 | 170 | 11 | ≥20 mm | No | 6.5 | 0702.. |
| S16P SDXCL 11 | L | 16 | 170 | 11 | ≥20 mm | No | 6.5 | 11T3.. |
| S16P SDXCR 07 | R | 16 | 170 | 11 | ≥20 mm | No | 6.5 | 0702.. |
| S16P SDXCR 11 | R | 16 | 170 | 11 | ≥20 mm | No | 6.5 | 11T3.. |
| S20R SDXCL 07 | L | 20 | 200 | 13 | ≥25 mm | No | 6.5 | 0702.. |
| S20R SDXCL 11 | L | 20 | 200 | 14 | ≥25 mm | No | 7.5 | 11T3.. |
| S20R SDXCR 07 | R | 20 | 200 | 13 | ≥25 mm | No | 6.5 | 0702.. |
| S20R SDXCR 11 | R | 20 | 200 | 14 | ≥25 mm | No | 7.5 | 11T3.. |
| S25S SDXCL 11 | L | 25 | 250 | 17 | ≥32 mm | No | 9 | 11T3.. |
| S25S SDXCL 11-Z | L | 25 | 250 | 17 | ≥32 mm | No | 9 | 11T3.. |
| S25S SDXCR 11 | R | 25 | 250 | 17 | ≥32 mm | No | 9 | 11T3.. |
| S25S SDXCR 11-Z | R | 25 | 250 | 17 | ≥32 mm | No | 9 | 11T3.. |
| S32T SDXCL 11 | L | 32 | 300 | 22 | ≥40 mm | No | 12.5 | 11T3.. |
| S32T SDXCR 11 | R | 32 | 300 | 22 | ≥40 mm | No | 12.5 | 11T3.. |
| S40U SDXCL 11 | L | 40 | 350 | 27 | ≥50 mm | No | 14.5 | 11T3.. |
| S40U SDXCR 11 | R | 40 | 350 | 27 | ≥50 mm | No | 14.5 | 11T3.. |
| AKKO code | Torx Key | Torx Screw | Shim | Shim Screw |
|---|---|---|---|---|
| A12H SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A12H SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A16M SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A16M SDXCL 11 | 82-T15 | 4015-M3.5X11 | – | – |
| A16M SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A16M SDXCR 11 | 82-T15 | 4015-M3.5X11 | – | – |
| A20P SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A20P SDXCL 11 | 82-T15 | 4015-M3.5X11 | – | – |
| A20P SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| A20P SDXCR 11 | 82-T15 | 4015-M3.5X11 | – | – |
| A25R SDXCL 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-08-M3.5X8 |
| A25R SDXCR 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-08-M3.5X8 |
| A32S SDXCL 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
| A32S SDXCR 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
| S12K SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S12K SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P SDXCL 11 | 82-T15 | 4015-M3.5X10 | – | – |
| S16P SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S16P SDXCR 11 | 82-T15 | 4015-M3.5X10 | – | – |
| S20R SDXCL 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S20R SDXCL 11 | 82-T15 | 4015-M3.5X11 | – | – |
| S20R SDXCR 07 | 82-T08 | 4008-M2.5X6 | – | – |
| S20R SDXCR 11 | 82-T15 | 4015-M3.5X11 | – | – |
| S25S SDXCL 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-08-M3.5X8 |
| S25S SDXCL 11-Z | 82-T15 | 4015-M3.5X14 | – | – |
| S25S SDXCR 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-08-M3.5X8 |
| S25S SDXCR 11-Z | 82-T15 | 4015-M3.5X14 | – | – |
| S32T SDXCL 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
| S32T SDXCR 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
| S40U SDXCL 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
| S40U SDXCR 11 | 82-T15 | 4015-M3.5X14 | AADN-2-0001 | AAV-06-M3.5X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
