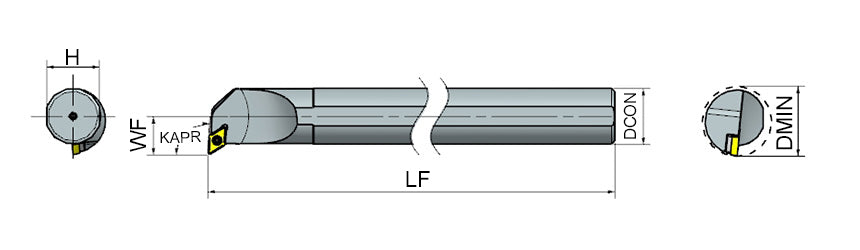

AKKO SDUCR/L S-System Boring Bar - dimension drawing
AKKO SDUCR/L S-System Boring Bar - dimension drawing
AKKO

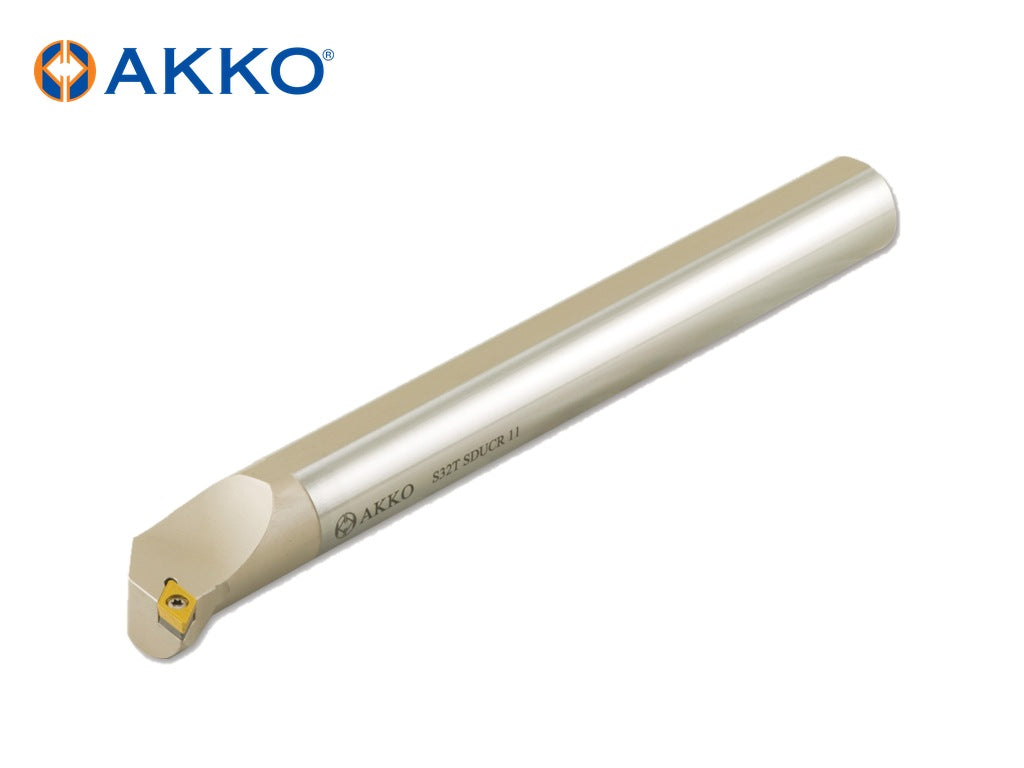

AKKO SDUCR/L S-System Boring Bar

Out of stock
SKU: A0810H SDUCL 07
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedA0810H SDUCL 07 SKUA0810H SDUCL 07

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SDUCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: DC.. 0702.., DC.. 11T3.. 59 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Type Of Bar: Steel Body
  • Insert Style: DC..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Body Diameter (BD, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Minimum Overhang (OHN) Recommended Usable Length (LU, mm) Coolant Through Insert Size
A0810H SDUCL 07 L 8 10 100 8 ≥13 mm 30 30 Yes 0702..
A0810H SDUCR 07 R 8 10 100 8 ≥13 mm 30 30 Yes 0702..
A10H SDUCL 07 L – 10 100 8 ≥13 mm 25 mm 25 Yes 0702..
A10H SDUCR 07 R – 10 100 8 ≥13 mm 25 mm 25 Yes 0702..
A12H SDUCL 07 L – 12 100 9 ≥16 mm 25 mm 25 Yes 0702..
A12H SDUCR 07 R – 12 100 9 ≥16 mm 25 mm 25 Yes 0702..
A16M SDUCL 07 L – 16 150 11 ≥20 mm 35 mm 35 Yes 0702..
A16M SDUCL 11 L – 16 150 11 ≥20 mm 35 mm 35 Yes 11T3..
A16M SDUCR 07 R – 16 150 11 ≥20 mm 35 mm 35 Yes 0702..
A16M SDUCR 11 R – 16 150 11 ≥20 mm 35 mm 35 Yes 11T3..
A20P SDUCL 07 L – 20 170 13 ≥25 mm 40 mm 40 Yes 0702..
A20P SDUCL 11 L – 20 170 13 ≥25 mm 40 mm 40 Yes 11T3..
A20P SDUCR 07 R – 20 170 13 ≥25 mm 40 mm 40 Yes 0702..
A20P SDUCR 11 R – 20 170 13 ≥25 mm 40 mm 40 Yes 11T3..
A25R SDUCL 11 L – 25 200 17 ≥32 mm 50 mm 50 Yes 11T3..
A25R SDUCR 11 R – 25 200 17 ≥32 mm 50 mm 50 Yes 11T3..
A25T SDUCL 11 L – 25 300 17 ≥32 mm 50 mm 50 Yes 11T3..
A25T SDUCR 11 R – 25 300 17 ≥32 mm 50 mm 50 Yes 11T3..
A32S SDUCL 11 L – 32 250 22 ≥40 mm 60 mm 60 Yes 11T3..
A32S SDUCR 11 R – 32 250 22 ≥40 mm 60 mm 60 Yes 11T3..
A50U SDUCL 11 L – 50 350 35 ≥63 mm 80 mm 80 Yes 11T3..
A50U SDUCR 11 R – 50 350 35 ≥63 mm 80 mm 80 Yes 11T3..
S0810K SDUCL 07 L 8 10 125 8 ≥13 mm – 30 No 0702..
S0810K SDUCR 07 R 8 10 125 8 ≥13 mm – 30 No 0702..
S0810M SDUCL 07 L 9.5 10 150 8 ≥13 mm – 30 No 0702..
S0810M SDUCR 07 R 9.5 10 150 8 ≥13 mm – 30 No 0702..
S10K SDUCL 07 L – 10 125 8 ≥13 mm 25 mm 25 No 0702..
S10K SDUCR 07 R – 10 125 8 ≥13 mm 25 mm 25 No 0702..
S1216P SDUCL 07 L 11.5 16 170 9 ≥16 mm 37 mm 37 No 0702..
S1216P SDUCR 07 R 11.5 16 170 9 ≥16 mm 37 mm 37 No 0702..
S12K SDUCL 07 L – 12 125 9 ≥16 mm 25 mm 25 No 0702..
S12K SDUCR 07 R – 12 125 9 ≥16 mm 25 mm 25 No 0702..
S1416P SDUCL 07 L 14 16 170 9.5 ≥17 mm – 45 No 0702..
S1416P SDUCL 11 L 14 16 170 11 ≥18 mm – 45 No 11T3..
S1416P SDUCR 07 R 14 16 170 9.5 ≥17 mm – 45 No 0702..
S1416P SDUCR 11 R 14 16 170 11 ≥18 mm – 45 No 11T3..
S1620R SDUCL 11 L 16 20 200 11 ≥20 mm – 50 No 11T3..
S1620R SDUCR 11 R 16 20 200 11 ≥20 mm – 50 No 11T3..
S16P SDUCL 07 L – 16 170 11 ≥20 mm 35 mm 35 No 0702..
S16P SDUCL 11 L – 16 170 11 ≥20 mm 35 mm 35 No 11T3..
S16P SDUCR 07 R – 16 170 11 ≥20 mm 35 mm 35 No 0702..
S16P SDUCR 11 R – 16 170 11 ≥20 mm 35 mm 35 No 11T3..
S20R SDUCL 07 L – 20 200 13 ≥25 mm 40 mm 40 No 0702..
S20R SDUCL 11 L – 20 200 13 ≥25 mm 40 mm 40 No 11T3..
S20R SDUCR 07 R – 20 200 13 ≥25 mm 40 mm 40 No 0702..
S20R SDUCR 11 R – 20 200 13 ≥25 mm 40 mm 40 No 11T3..
S20S SDUCL 11 L – 20 250 13 ≥25 mm 40 mm 40 No 11T3..
S25S SDUCL 11 L – 25 250 17 ≥32 mm 50 mm 50 No 11T3..
S25S SDUCL 11-Z L – 25 250 17 ≥32 mm 50 mm 50 No 11T3..
S25S SDUCR 11 R – 25 250 17 ≥32 mm 50 mm 50 No 11T3..
S25S SDUCR 11-Z R – 25 250 17 ≥32 mm 50 mm 50 No 11T3..
S25T SDUCL 11 L – 25 300 17 ≥32 mm 50 mm 50 No 11T3..
S25T SDUCR 11 R – 25 300 17 ≥32 mm 50 mm 50 No 11T3..
S32T SDUCL 11 L – 32 300 22 ≥40 mm 60 mm 60 No 11T3..
S32T SDUCR 11 R – 32 300 22 ≥40 mm 60 mm 60 No 11T3..
S40U SDUCL 11 L – 40 350 27 ≥50 mm 70 mm 70 No 11T3..
S40U SDUCR 11 R – 40 350 27 ≥50 mm 70 mm 70 No 11T3..
S50V SDUCL 11 L – 50 400 35 ≥63 mm 80 mm 80 No 11T3..
S50V SDUCR 11 R – 50 400 35 ≥63 mm 80 mm 80 No 11T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw Set Screw
A0810H SDUCL 07 82-T08 4008-M2.5X6 – – –
A0810H SDUCR 07 82-T08 4008-M2.5X6 – – –
A10H SDUCL 07 82-T08 4008-M2.5X6 – – –
A10H SDUCR 07 82-T08 4008-M2.5X6 – – –
A12H SDUCL 07 82-T08 4008-M2.5X6 – – –
A12H SDUCR 07 82-T08 4008-M2.5X6 – – –
A16M SDUCL 07 82-T08 4008-M2.5X6 – – –
A16M SDUCL 11 82-T15 4015-M3.5X9 – – –
A16M SDUCR 07 82-T08 4008-M2.5X6 – – –
A16M SDUCR 11 82-T15 4015-M3.5X9 – – –
A20P SDUCL 07 82-T08 4008-M2.5X6 – – –
A20P SDUCL 11 82-T15 4015-M3.5X11 – – –
A20P SDUCR 07 82-T08 4008-M2.5X6 – – –
A20P SDUCR 11 82-T15 4015-M3.5X11 – – –
A25R SDUCL 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
A25R SDUCR 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
A25T SDUCL 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 2725-M5x6
A25T SDUCR 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 2725-M5x6
A32S SDUCL 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 2725-M5x6
A32S SDUCR 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 2725-M5x6
A50U SDUCL 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 2725-M5x6
A50U SDUCR 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 2725-M5x6
S0810K SDUCL 07 82-T08 4008-M2.5X6 – – –
S0810K SDUCR 07 82-T08 4008-M2.5X6 – – –
S0810M SDUCL 07 82-T08 4008-M2.5X6 – – –
S0810M SDUCR 07 82-T08 4008-M2.5X6 – – –
S10K SDUCL 07 82-T08 4008-M2.5X6 – – –
S10K SDUCR 07 82-T08 4008-M2.5X6 – – –
S1216P SDUCL 07 82-T08 4008-M2.5X6 – – –
S1216P SDUCR 07 82-T08 4008-M2.5X6 – – –
S12K SDUCL 07 82-T08 4008-M2.5X6 – – –
S12K SDUCR 07 82-T08 4008-M2.5X6 – – –
S1416P SDUCL 07 82-T08 4008-M2.5X6 – – –
S1416P SDUCL 11 82-T15 4015-M3.5X9 – – –
S1416P SDUCR 07 82-T08 4008-M2.5X6 – – –
S1416P SDUCR 11 82-T15 4015-M3.5X9 – – –
S1620R SDUCL 11 82-T15 4015-M3.5X9 – – –
S1620R SDUCR 11 82-T15 4015-M3.5X9 – – –
S16P SDUCL 07 82-T08 4008-M2.5X6 – – –
S16P SDUCL 11 82-T15 4015-M3.5X9 – – –
S16P SDUCR 07 82-T08 4008-M2.5X6 – – –
S16P SDUCR 11 82-T15 4015-M3.5X9 – – –
S20R SDUCL 07 82-T08 4008-M2.5X6 – – –
S20R SDUCL 11 82-T15 4015-M3.5X11 – – –
S20R SDUCR 07 82-T08 4008-M2.5X6 – – –
S20R SDUCR 11 82-T15 4015-M3.5X11 – – –
S20S SDUCL 11 – – – – –
S25S SDUCL 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
S25S SDUCL 11-Z 82-T15 4015-M3.5X14 – – –
S25S SDUCR 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
S25S SDUCR 11-Z 82-T15 4015-M3.5X14 – – –
S25T SDUCL 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
S25T SDUCR 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8 –
S32T SDUCL 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –
S32T SDUCR 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –
S40U SDUCL 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –
S40U SDUCR 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –
S50V SDUCL 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –
S50V SDUCR 11 82-T15 4015-M3.5X14 AADN-2-0001 AAV-06-M3.5X11 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
