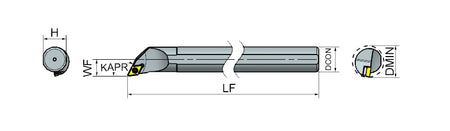

AKKO SDPCR/L S-System Boring Bar - dimension drawing

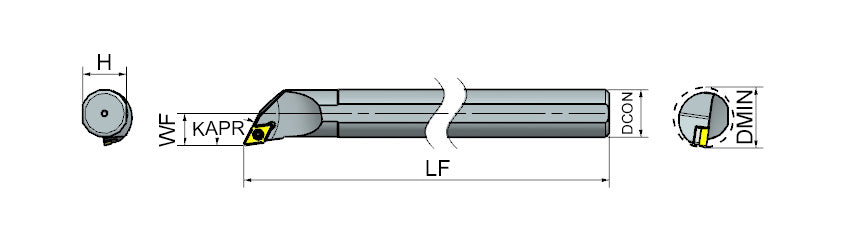

AKKO SDPCR/L S-System Boring Bar - dimension drawing
AKKO

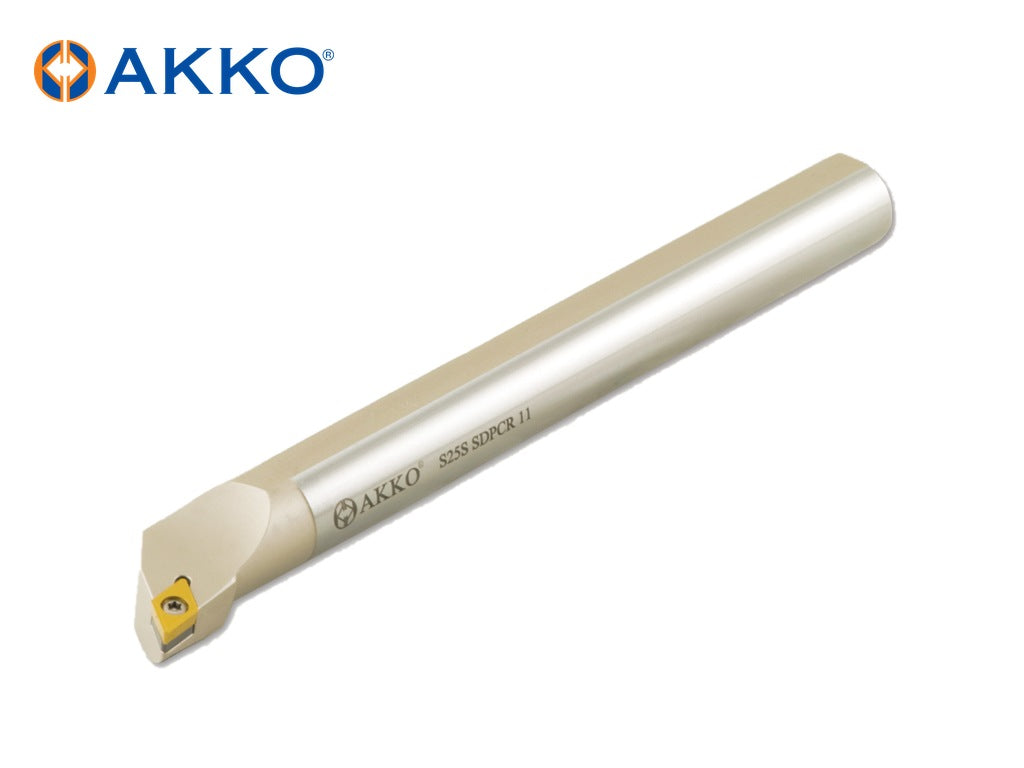

AKKO SDPCR/L S-System Boring Bar

Out of stock
SKU: S10K SDPCL 07
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS10K SDPCL 07 SKUS10K SDPCL 07

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SDPCR/L – S-System Boring Bar from the AKKO S-System Boring Bars range. Insert clamping: screw clamping through the insert hole. Available in right-hand and left-hand versions. For inserts: DC.. 0702.., DC.. 11T3.. 10 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: DC..
  • Side Cutting Angle (KAPR): 117.5°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S10K SDPCL 07 L 10 125 7 ≥13 mm 0702..
S10K SDPCR 07 R 10 125 7 ≥13 mm 0702..
S12K SDPCL 07 L 12 125 9 ≥16 mm 0702..
S12K SDPCR 07 R 12 125 9 ≥16 mm 0702..
S16P SDPCL 11 L 16 170 11 ≥20 mm 11T3..
S16P SDPCR 11 R 16 170 11 ≥20 mm 11T3..
S20R SDPCL 11 L 20 200 13 ≥25 mm 11T3..
S20R SDPCR 11 R 20 200 13 ≥25 mm 11T3..
S25S SDPCL 11 L 25 250 17 ≥32 mm 11T3..
S25S SDPCR 11 R 25 250 17 ≥32 mm 11T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Shim Shim Screw
S10K SDPCL 07 82-T08 4008-M2.5X6 – –
S10K SDPCR 07 82-T08 4008-M2.5X6 – –
S12K SDPCL 07 82-T08 4008-M2.5X6 – –
S12K SDPCR 07 82-T08 4008-M2.5X6 – –
S16P SDPCL 11 82-T15 4015-M3.5X9 – –
S16P SDPCR 11 82-T15 4015-M3.5X9 – –
S20R SDPCL 11 82-T15 4015-M3.5X9 – –
S20R SDPCR 11 82-T15 4015-M3.5X9 – –
S25S SDPCL 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8
S25S SDPCR 11 82-T15 4015-M3.5X12 AADN-2-0001 AAV-08-M3.5X8

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
