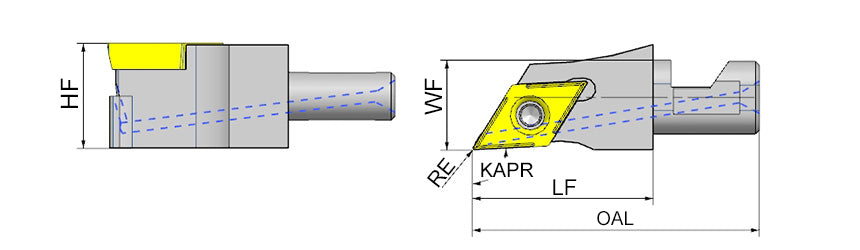

AKKO SDJCR/L SEC Swiss Easy Change Tool - dimension drawing

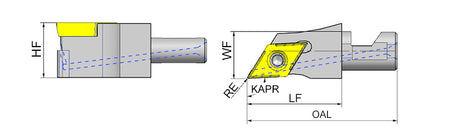

AKKO SDJCR/L SEC Swiss Easy Change Tool - dimension drawing
AKKO

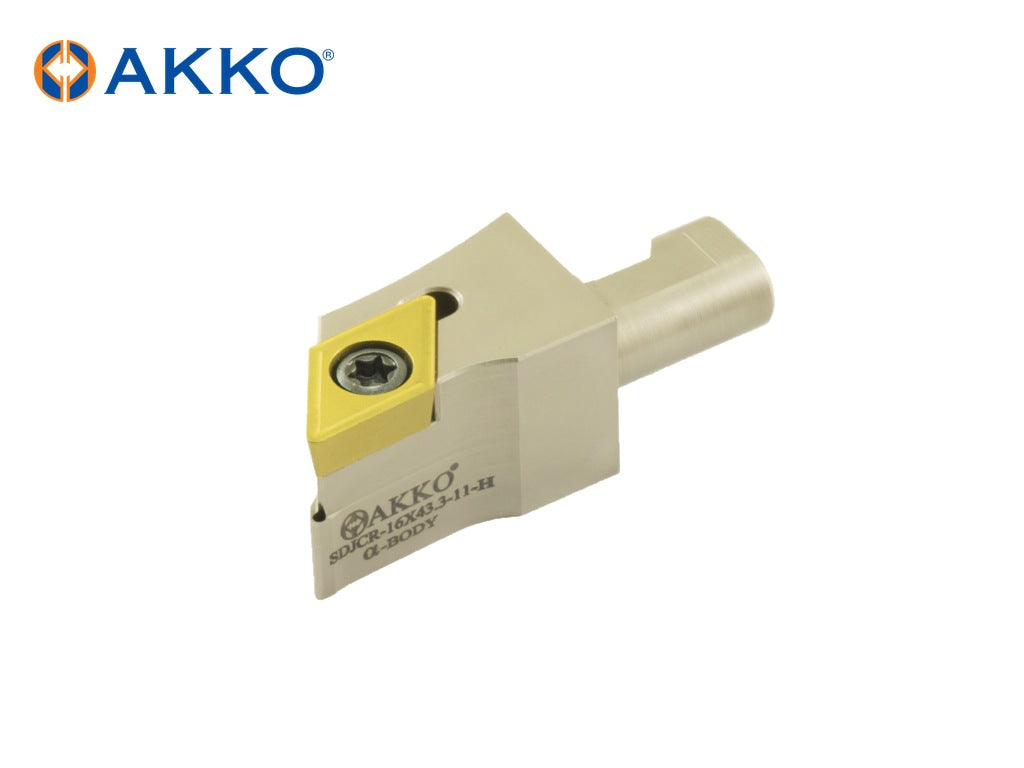

AKKO SDJCR/L SEC Swiss Easy Change Tool

Out of stock
SKU: SDJCL-12X43.3-07
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedSDJCL-12X43.3-07 SKUSDJCL-12X43.3-07

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SDJCR/L – SEC Swiss Easy Change Tool from the AKKO SEC Tools (Swiss Easy Change) range. For inserts: DC.. 0702.., DC.. 11T3.. 16 sizes listed below.

Specifications

  • Functional Width (WF): 8 mm
  • Functional Length (LF): 27.3 mm
  • Overall Length (OAL): 43.3 mm
  • Corner Radius (RE): 0.2 mm
  • Insert Style: DC..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Functional Height (HF, mm) Coolant Through Insert Inscribed Circle (mm) Insert Size
SDJCL-12X43.3-07 11.8 No 6.35 0702..
SDJCL-12X43.3-07-H 11.8 Yes 6.35 0702..
SDJCL-12X43.3-11 11.8 No 9.525 11T3..
SDJCL-12X43.3-11-H 11.8 Yes 9.525 11T3..
SDJCL-16X43.3-07 15.8 No 6.35 0702..
SDJCL-16X43.3-07-H 15.8 Yes 6.35 0702..
SDJCL-16X43.3-11 15.8 No 9.525 11T3..
SDJCL-16X43.3-11-H 15.8 Yes 9.525 11T3..
SDJCR-12X43.3-07 11.8 No 6.35 0702..
SDJCR-12X43.3-07-H 11.8 Yes 6.35 0702..
SDJCR-12X43.3-11 11.8 No 9.525 11T3..
SDJCR-12X43.3-11-H 11.8 Yes 9.525 11T3..
SDJCR-16X43.3-07 15.8 No 6.35 0702..
SDJCR-16X43.3-07-H 15.8 Yes 6.35 0702..
SDJCR-16X43.3-11 15.8 No 9.525 11T3..
SDJCR-16X43.3-11-H 15.8 Yes 9.525 11T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
SDJCL-12X43.3-07 82-T08 4008-M2.5X6
SDJCL-12X43.3-07-H 82-T08 4008-M2.5X6
SDJCL-12X43.3-11 82-T08 4015-M3.5X9
SDJCL-12X43.3-11-H 82-T15 4015-M3.5X11
SDJCL-16X43.3-07 82-T08 4008-M2.5X6
SDJCL-16X43.3-07-H 82-T08 4008-M2.5X6
SDJCL-16X43.3-11 82-T15 4015-M3.5X11
SDJCL-16X43.3-11-H 82-T15 4015-M3.5X11
SDJCR-12X43.3-07 82-T08 4008-M2.5X6
SDJCR-12X43.3-07-H 82-T08 4008-M2.5X6
SDJCR-12X43.3-11 80-T15 4015-M3.5X9
SDJCR-12X43.3-11-H 82-T15 4015-M3.5X11
SDJCR-16X43.3-07 82-T08 4008-M2.5X6
SDJCR-16X43.3-07-H 82-T08 4008-M2.5X6
SDJCR-16X43.3-11 82-T15 4015-M3.5X11
SDJCR-16X43.3-11-H 82-T15 4015-M3.5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
