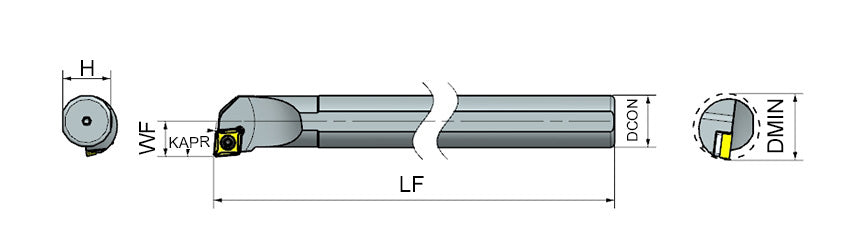

AKKO SCLCR/L S-System Carbide Boring Bar - dimension drawing
AKKO SCLCR/L S-System Carbide Boring Bar - dimension drawing
AKKO

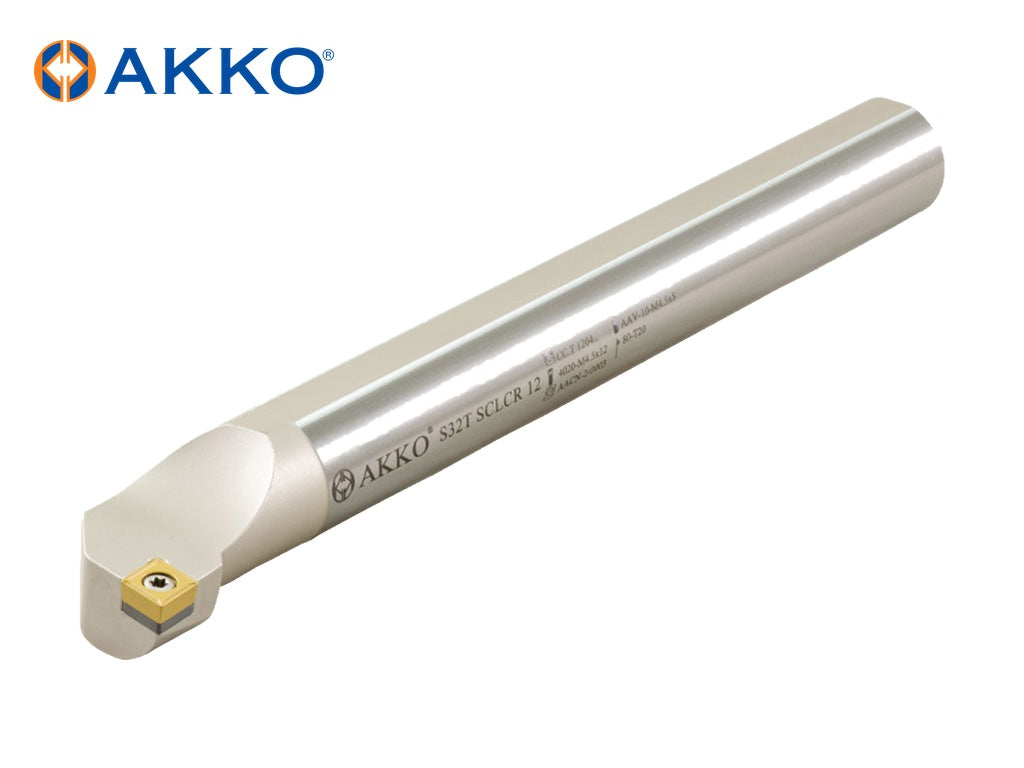

AKKO SCLCR/L S-System Carbide Boring Bar

Out of stock
SKU: C04G SCLCL 03
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedC04G SCLCL 03 SKUC04G SCLCL 03

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO SCLCR/L – S-System Carbide Boring Bar from the AKKO S-System Carbide Boring Bars range. Available in right-hand and left-hand versions. For inserts: CC.. 0301.., CC.. 0401.., CC.. 0602.., CC.. 09T3.. 20 sizes listed below.

Specifications

  • Clamping Type: S-System
  • Type Of Bar: Carbide Body
  • Insert Style: CC..
  • Side Cutting Angle (KAPR): 95°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Coolant Through Insert Size
C04G SCLCL 03 L 4 90 2.5 ≥5 mm No 0301..
C04G SCLCR 03 R 4 90 2.5 ≥5 mm No 0301..
C05H SCLCL 03 L 5 100 3 ≥6 mm No 0301..
C05H SCLCR 03 R 5 100 3 ≥6 mm No 0301..
C06J SCLCL 04 L 6 110 3.5 ≥7 mm No 0401..
C06J SCLCL 06 L 6 110 4.5 ≥8 mm No 0602..
C06J SCLCR 04 R 6 110 3.5 ≥7 mm No 0401..
C06J SCLCR 06 R 6 110 4.5 ≥8 mm No 0602..
C07K SCLCL 04 L 7 125 4 ≥8 mm No 0401..
C07K SCLCR 04 R 7 125 4 ≥8 mm No 0401..
E08K SCLCL 06 L 8 125 6 ≥11 mm Yes 0602..
E08K SCLCR 06 R 8 125 6 ≥11 mm Yes 0602..
E10M SCLCL 06 L 10 150 7 ≥13 mm Yes 0602..
E10M SCLCR 06 R 10 150 7 ≥13 mm Yes 0602..
E12Q SCLCL 06 L 12 180 9 ≥16 mm Yes 0602..
E12Q SCLCR 06 R 12 180 9 ≥16 mm Yes 0602..
E16R SCLCL 09 L 16 200 11 ≥20 mm Yes 09T3..
E16R SCLCR 09 R 16 200 11 ≥20 mm Yes 09T3..
E20S SCLCL 09 L 20 250 13 ≥24 mm Yes 09T3..
E20S SCLCR 09 R 20 250 13 ≥24 mm Yes 09T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
C04G SCLCL 03 82-T06 4006-M1.6X3.2
C04G SCLCR 03 82-T06 4006-M1.6X3.2
C05H SCLCL 03 82-T06 4006-M1.6X3.2
C05H SCLCR 03 82-T06 4006-M1.6X3.2
C06J SCLCL 04 82-T06 3006-M2x3.3
C06J SCLCL 06 82-T08 4008-M2.5x4
C06J SCLCR 04 82-T06 3006-M2x3.3
C06J SCLCR 06 82-T08 4008-M2.5x4
C07K SCLCL 04 82-T06 3006-M2x3.3
C07K SCLCR 04 82-T06 3006-M2x3.3
E08K SCLCL 06 82-T08 4008-M2.5X6
E08K SCLCR 06 82-T08 4008-M2.5X6
E10M SCLCL 06 82-T08 4008-M2.5X6
E10M SCLCR 06 82-T08 4008-M2.5X6
E12Q SCLCL 06 82-T08 4008-M2.5X6
E12Q SCLCR 06 82-T08 4008-M2.5X6
E16R SCLCL 09 82-T15 4015-M3.5X9
E16R SCLCR 09 82-T15 4015-M3.5X9
E20S SCLCL 09 82-T15 4015-M3.5X9
E20S SCLCR 09 82-T15 4015-M3.5X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
