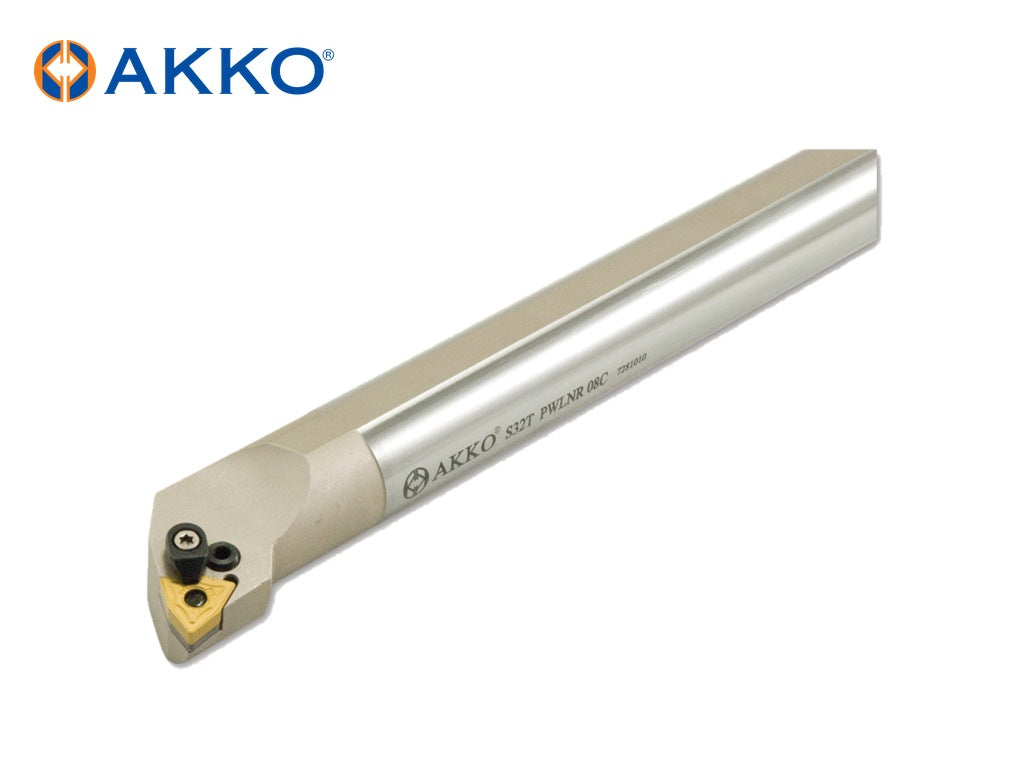

AKKO PWLNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: WN.. 0604.., WN.. 0804.. 32 sizes listed below.

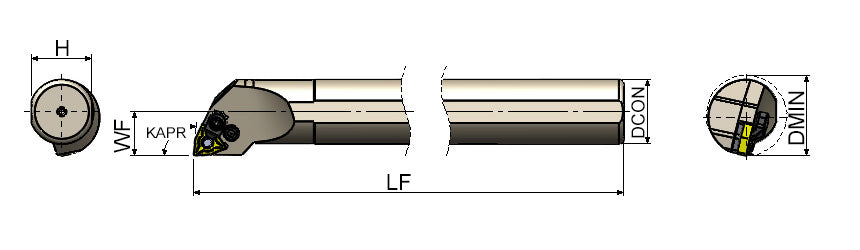

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Insert Size |
|---|---|---|---|---|---|---|---|
| A16M PWLNL 06 | L | 16 | 150 | 11 | ≥20 mm | Yes | 0604.. |
| A16M PWLNR 06 | R | 16 | 150 | 11 | ≥20 mm | Yes | 0604.. |
| A20P PWLNL 06 | L | 20 | 170 | 13 | ≥25 mm | Yes | 0604.. |
| A20P PWLNR 06 | R | 20 | 170 | 13 | ≥25 mm | Yes | 0604.. |
| A25R PWLNL 06 | L | 25 | 200 | 17 | ≥32 mm | Yes | 0604.. |
| A25R PWLNL 08C | L | 25 | 200 | 17 | ≥32 mm | Yes | 0804.. |
| A25R PWLNR 06 | R | 25 | 200 | 17 | ≥32 mm | Yes | 0604.. |
| A25R PWLNR 08C | R | 25 | 200 | 17 | ≥32 mm | Yes | 0804.. |
| A32S PWLNL 06 | L | 32 | 250 | 22 | ≥40 mm | Yes | 0604.. |
| A32S PWLNL 08C | L | 32 | 250 | 22 | ≥40 mm | Yes | 0804.. |
| A32S PWLNR 06 | R | 32 | 250 | 22 | ≥40 mm | Yes | 0604.. |
| A32S PWLNR 08C | R | 32 | 250 | 22 | ≥40 mm | Yes | 0804.. |
| A40T PWLNL 06 | L | 40 | 300 | 27 | ≥50 mm | Yes | 0604.. |
| A40T PWLNL 08C | L | 40 | 300 | 27 | ≥50 mm | Yes | 0804.. |
| A40T PWLNR 06 | R | 40 | 300 | 27 | ≥50 mm | Yes | 0604.. |
| A40T PWLNR 08C | R | 40 | 300 | 27 | ≥50 mm | Yes | 0804.. |
| A50U PWLNL 08C | L | 50 | 350 | 35 | ≥63 mm | Yes | 0804.. |
| A50U PWLNR 08C | R | 50 | 350 | 35 | ≥63 mm | Yes | 0804.. |
| S20R PWLNL 06 | L | 20 | 200 | 13 | ≥25 mm | No | 0604.. |
| S20R PWLNR 06 | R | 20 | 200 | 13 | ≥25 mm | No | 0604.. |
| S25S PWLNL 06 | L | 25 | 250 | 17 | ≥32 mm | No | 0604.. |
| S25S PWLNL 08C | L | 25 | 250 | 17 | ≥32 mm | No | 0804.. |
| S25S PWLNR 06 | R | 25 | 250 | 17 | ≥32 mm | No | 0604.. |
| S25S PWLNR 08C | R | 25 | 250 | 17 | ≥32 mm | No | 0804.. |
| S32T PWLNL 06 | L | 32 | 300 | 22 | ≥40 mm | No | 0604.. |
| S32T PWLNL 08C | L | 32 | 300 | 22 | ≥40 mm | No | 0804.. |
| S32T PWLNR 06 | R | 32 | 300 | 22 | ≥40 mm | No | 0604.. |
| S32T PWLNR 08C | R | 32 | 300 | 22 | ≥40 mm | No | 0804.. |
| S40U PWLNL 08C | L | 40 | 350 | 27 | ≥50 mm | No | 0804.. |
| S40U PWLNR 08C | R | 40 | 350 | 27 | ≥50 mm | No | 0804.. |
| S50V PWLNL 08C | L | 50 | 400 | 35 | ≥63 mm | No | 0804.. |
| S50V PWLNR 08C | R | 50 | 400 | 35 | ≥63 mm | No | 0804.. |
| AKKO code | Shim Spring | Allen Key | Lever | Lever Screw | Shim | Set Screw | Clamp | Torx Screw |
|---|---|---|---|---|---|---|---|---|
| A16M PWLNL 06 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| A16M PWLNR 06 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| A20P PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AAWN-SW317 | – | – | – |
| A20P PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AAWN-SW317 | – | – | – |
| A25R PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | 2725-M5x6 | – | – |
| A25R PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A25R PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | 2725-M5x6 | – | – |
| A25R PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A32S PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| A32S PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A32S PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| A32S PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A40T PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | 2725-M5x6 | – | – |
| A40T PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A40T PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | 2725-M5x6 | – | – |
| A40T PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A50U PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| A50U PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | 2725-M5x6 | ACK-05 | 4015-M4X11 |
| S20R PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AAWN-SW317 | – | – | – |
| S20R PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AAWN-SW317 | – | – | – |
| S25S PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| S25S PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S25S PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| S25S PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S32T PWLNL 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| S32T PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S32T PWLNR 06 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AAWN-SW317 | – | – | – |
| S32T PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S40U PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S40U PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S50V PWLNL 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
| S50V PWLNR 08C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AAWN-3-0001 | – | ACK-05 | 4015-M4X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
