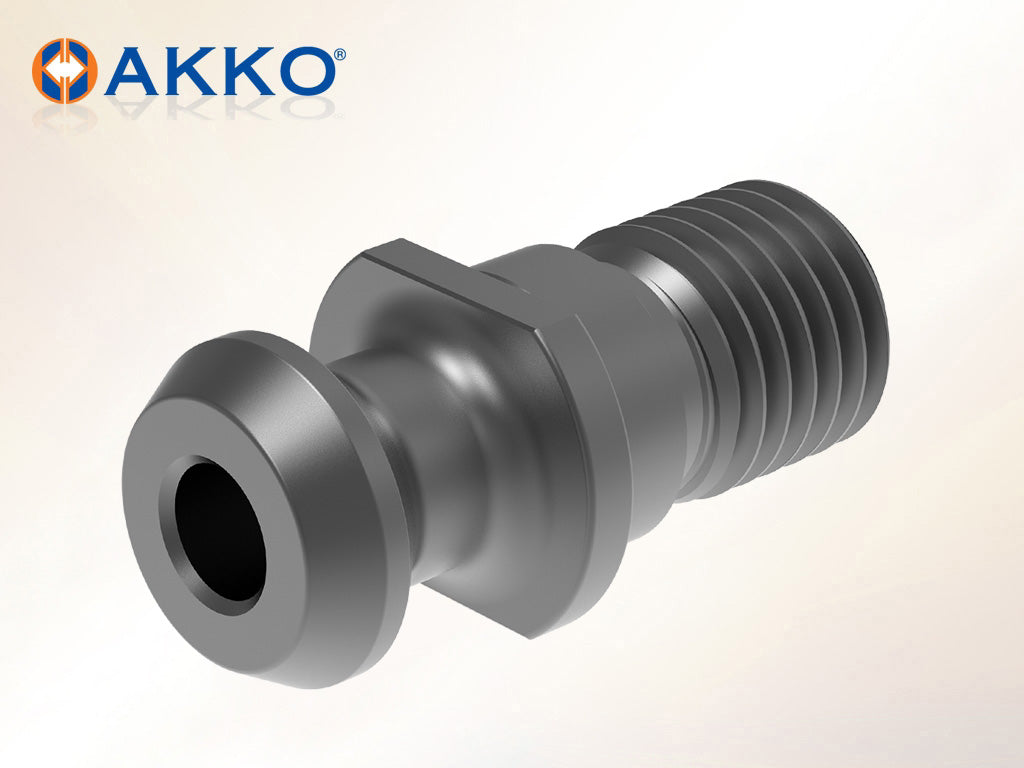

AKKO Pull Studs (ISO 7388-CAT)

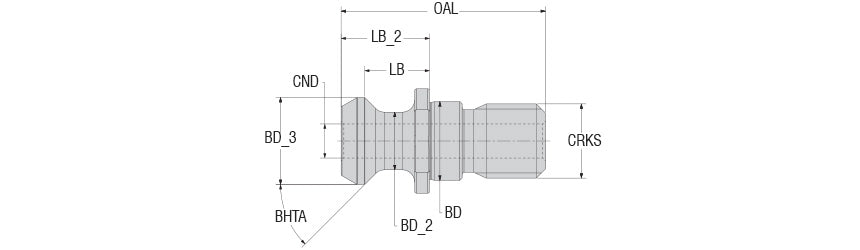

AKKO Pull Studs (ISO 7388-CAT) - dimension drawing
AKKO Pull Studs (ISO 7388-CAT)
AKKO Pull Studs (ISO 7388-CAT) - dimension drawing
AKKO

AKKO Pull Studs (ISO 7388-CAT)

Out of stock
SKU: APS-BT40-45-M16-MAZ-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPS-BT40-45-M16-MAZ-H SKUAPS-BT40-45-M16-MAZ-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Pull Studs (ISO 7388-CAT) from the AKKO Pull Stud (ISO 7388-CAT) range. 2 sizes listed below.

Sizes and dimensions (mm)

AKKO code SS CRKS BD_3 BD_2 BD CND OAL LB_2 BHTA
APS-BT40-45-M16-MAZ-H 40 M16 18.8 12.45 17 7.35 44.11 19.11 45
APS-CAT40-45-M16-MAZ-H 40 M16 18.8 12.45 17 7.35 41.26 16.4 45

Dimension key (letters as on the drawing):

  • SS: Taper size
  • CRKS: Retention knob thread
  • BD: Body diameter
  • OAL: Overall length

Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
