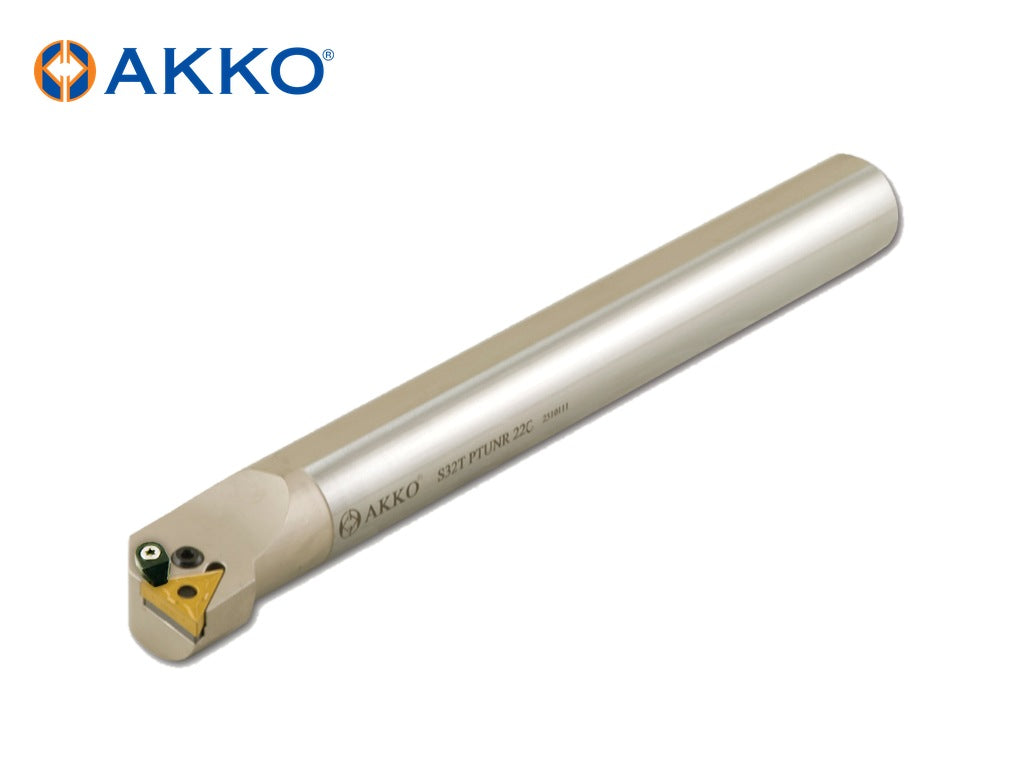

AKKO PTUNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: TN.. 1604.., TN.. 2204.. 30 sizes listed below.

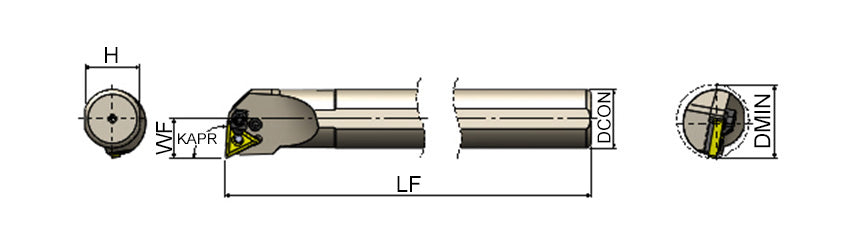

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Insert Size |
|---|---|---|---|---|---|---|---|
| A16M PTUNL 16 | L | 16 | 150 | 11 | ≥20 mm | Yes | 1604.. |
| A16M PTUNR 16 | R | 16 | 150 | 11 | ≥20 mm | Yes | 1604.. |
| A20P PTUNL 16 | L | 20 | 170 | 13 | ≥25 mm | Yes | 1604.. |
| A20P PTUNR 16 | R | 20 | 170 | 13 | ≥25 mm | Yes | 1604.. |
| A25R PTUNL 16C | L | 25 | 200 | 17 | ≥32 mm | Yes | 1604.. |
| A25R PTUNR 16C | R | 25 | 200 | 17 | ≥32 mm | Yes | 1604.. |
| A32S PTUNL 16C | L | 32 | 250 | 22 | ≥40 mm | Yes | 1604.. |
| A32S PTUNL 22C | L | 32 | 250 | 22 | ≥40 mm | Yes | 2204.. |
| A32S PTUNR 16C | R | 32 | 250 | 22 | ≥40 mm | Yes | 1604.. |
| A32S PTUNR 22C | R | 32 | 250 | 22 | ≥40 mm | Yes | 2204.. |
| A40T PTUNL 16C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1604.. |
| A40T PTUNL 22C | L | 40 | 300 | 27 | ≥50 mm | Yes | 2204.. |
| A40T PTUNR 16C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1604.. |
| A40T PTUNR 22C | R | 40 | 300 | 27 | ≥50 mm | Yes | 2204.. |
| S16P PTUNL 16 | L | 16 | 170 | 11 | ≥20 mm | No | 1604.. |
| S16P PTUNR 16 | R | 16 | 170 | 11 | ≥20 mm | No | 1604.. |
| S20R PTUNL 16 | L | 20 | 200 | 13 | ≥25 mm | No | 1604.. |
| S20R PTUNR 16 | R | 20 | 200 | 13 | ≥25 mm | No | 1604.. |
| S25S PTUNL 16C | L | 25 | 250 | 17 | ≥32 mm | No | 1604.. |
| S25S PTUNR 16C | R | 25 | 250 | 17 | ≥32 mm | No | 1604.. |
| S32T PTUNL 16C | L | 32 | 300 | 22 | ≥40 mm | No | 1604.. |
| S32T PTUNL 22C | L | 32 | 300 | 22 | ≥40 mm | No | 2204.. |
| S32T PTUNR 16C | R | 32 | 300 | 22 | ≥40 mm | No | 1604.. |
| S32T PTUNR 22C | R | 32 | 300 | 22 | ≥40 mm | No | 2204.. |
| S40U PTUNL 16C | L | 40 | 350 | 27 | ≥50 mm | No | 1604.. |
| S40U PTUNL 22C | L | 40 | 350 | 27 | ≥50 mm | No | 2204.. |
| S40U PTUNR 16C | R | 40 | 350 | 27 | ≥50 mm | No | 1604.. |
| S40U PTUNR 22C | R | 40 | 350 | 27 | ≥50 mm | No | 2204.. |
| S50V PTUNL 22C | L | 50 | 400 | 35 | ≥63 mm | No | 2204.. |
| S50V PTUNR 22C | R | 50 | 400 | 35 | ≥63 mm | No | 2204.. |
| AKKO code | Shim Spring | Allen Key | Lever | Lever Screw | Shim | Clamp | Set Screw | Torx Screw |
|---|---|---|---|---|---|---|---|---|
| A16M PTUNL 16 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| A16M PTUNR 16 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| A20P PTUNL 16 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AATN-3-0025 | – | – | – |
| A20P PTUNR 16 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AATN-3-0025 | – | – | – |
| A25R PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A25R PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A32S PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A32S PTUNL 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A32S PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A32S PTUNR 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A40T PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A40T PTUNL 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A40T PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| A40T PTUNR 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | 2725-M5x6 | 4015-M4X11 |
| S16P PTUNL 16 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| S16P PTUNR 16 | AAY-07 | AAL-02-2.5 | APL-08 | ALV-07-M6X13 | – | – | – | – |
| S20R PTUNL 16 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AATN-3-0025 | – | – | – |
| S20R PTUNR 16 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AATN-3-0025 | – | – | – |
| S25S PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S25S PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S32T PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S32T PTUNL 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
| S32T PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S32T PTUNR 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
| S40U PTUNL 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S40U PTUNL 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
| S40U PTUNR 16C | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AATN-3-0025 | ACK-05 | – | 4015-M4X11 |
| S40U PTUNR 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
| S50V PTUNL 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
| S50V PTUNR 22C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AATN-3-0015 | ACK-05 | – | 4015-M4X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
