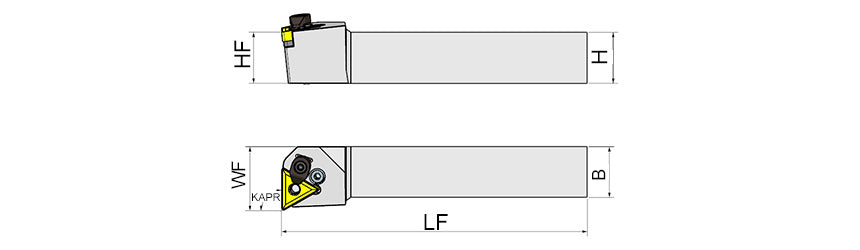

AKKO PTFNR/L P-System External Turning Toolholder - dimension drawing
AKKO PTFNR/L P-System External Turning Toolholder - dimension drawing
AKKO

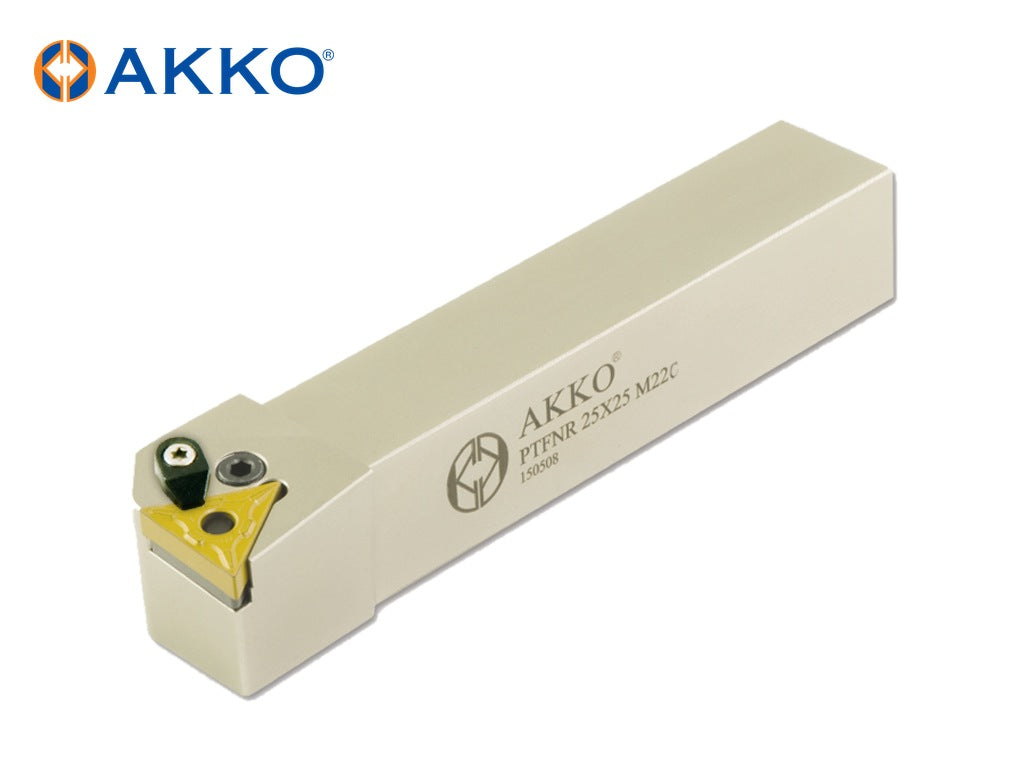

AKKO PTFNR/L P-System External Turning Toolholder

Out of stock
SKU: PTFNL 1616 H16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedPTFNL 1616 H16 SKUPTFNL 1616 H16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO PTFNR/L – P-System External Turning Toolholder from the AKKO P-System External Turning Toolholders range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: TN.. 16.., TN.. 22.., TN.. 27.. 14 sizes listed below.

Specifications

  • Clamping Type: P-System
  • Coolant Through: No
  • Side Cutting Angle (KAPR): 90°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
PTFNL 1616 H16 L 16 16 100 20 TN.. 16..
PTFNL 2020 K16 L 20 20 125 25 TN.. 16..
PTFNL 2525 M16 L 25 25 150 32 TN.. 16..
PTFNL 2525 M22C L 25 25 150 32 TN.. 22..
PTFNL 3232 P16 L 32 32 170 40 TN.. 16..
PTFNL 3232 P22C L 32 32 170 40 TN.. 22..
PTFNL 4040 S27C L 40 40 250 50 TN.. 27..
PTFNR 1616 H16 R 16 16 100 20 TN.. 16..
PTFNR 2020 K16 R 20 20 125 25 TN.. 16..
PTFNR 2525 M16 R 25 25 150 32 TN.. 16..
PTFNR 2525 M22C R 25 25 150 32 TN.. 22..
PTFNR 3232 P16 R 32 32 170 40 TN.. 16..
PTFNR 3232 P22C R 32 32 170 40 TN.. 22..
PTFNR 4040 S27C R 40 40 250 50 TN.. 27..

Spare parts (AKKO codes)

AKKO code Shim Shim Spring Allen Key Lever Lever Screw Clamp Torx Screw Shim Screw
PTFNL 1616 H16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNL 2020 K16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNL 2525 M16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNL 2525 M22C AATN-3-0015 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 ACK-05 4015-M4X11 –
PTFNL 3232 P16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNL 3232 P22C AATN-3-0015 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 ACK-05 4015-M4X11 –
PTFNL 4040 S27C AATN-3-0027 AAY-03 AAL-03-3 APL-04 ALV-05-M10X27 ACK-09 – AAV-05-M6X15
PTFNR 1616 H16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNR 2020 K16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNR 2525 M16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNR 2525 M22C AATN-3-0015 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 ACK-05 4015-M4X11 –
PTFNR 3232 P16 AATN-3-0025 AAY-01 AAL-02-2.5 APL-01 ALV-02-M6X17 – – –
PTFNR 3232 P22C AATN-3-0015 AAY-02 AAL-03-3 APL-02 ALV-03-M8X19 ACK-05 4015-M4X11 –
PTFNR 4040 S27C AATN-3-0027 AAY-03 AAL-03-3 APL-04 ALV-05-M10X27 ACK-09 – AAV-05-M6X15

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
