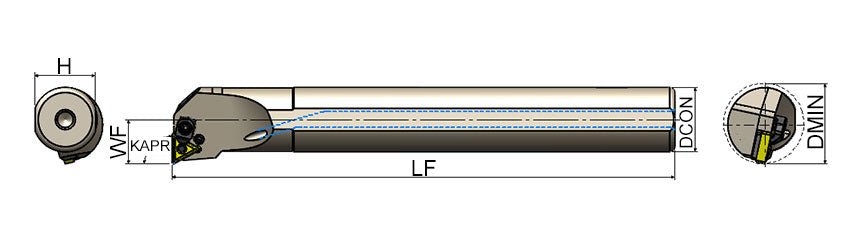

AKKO PTFNR/L P-System Boring Bar - dimension drawing
AKKO PTFNR/L P-System Boring Bar - dimension drawing
AKKO

AKKO PTFNR/L P-System Boring Bar

Out of stock
SKU: A25R PTFNL 16C
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedA25R PTFNL 16C SKUA25R PTFNL 16C

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

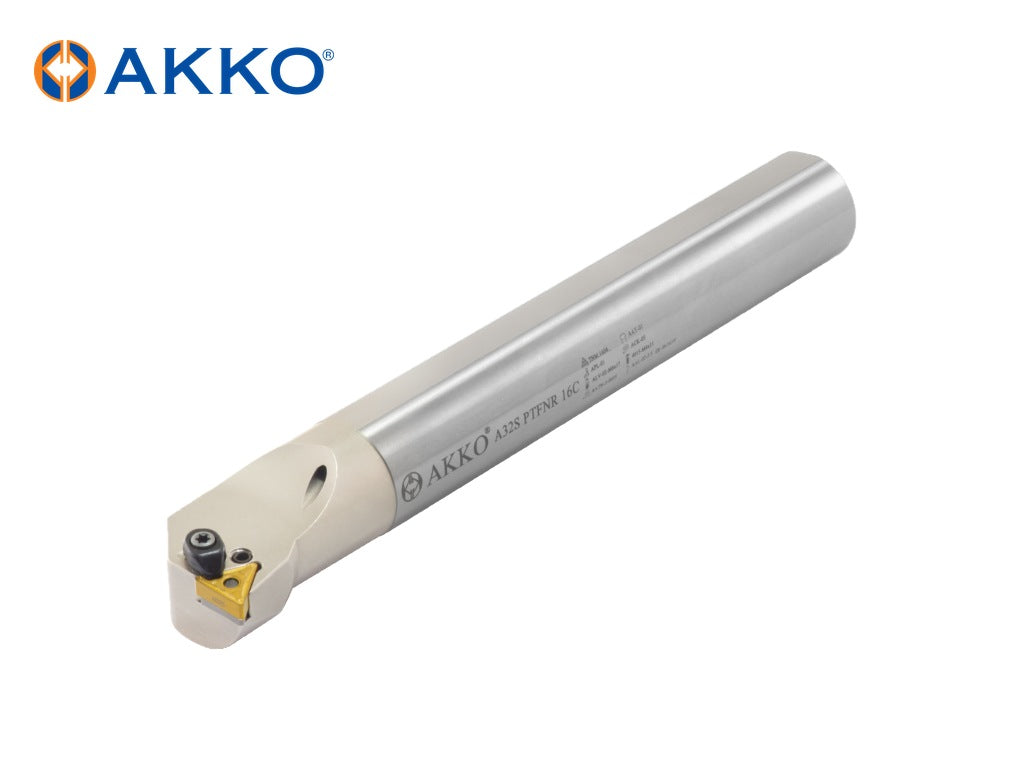

AKKO PTFNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: TN.. 1604.. 4 sizes listed below.

Specifications

  • Clamping Type: P-System
  • Coolant Through: Yes
  • Type Of Bar: Steel Body
  • Insert Size: 1604..
  • Insert Style: TN..
  • Side Cutting Angle (KAPR): 90°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin)
A25R PTFNL 16C L 25 200 17 ≥32 mm
A25R PTFNR 16C R 25 200 17 ≥32 mm
A32S PTFNL 16C L 32 250 22 ≥40 mm
A32S PTFNR 16C R 32 250 22 ≥40 mm

Spare parts (AKKO codes)

  • Shim: AATN-3-0025
  • Shim Spring: AAY-01
  • Allen Key: AAL-02-2.5
  • Clamp: ACK-05
  • Lever: APL-01
  • Lever Screw: ALV-02-M6X17
  • Torx Screw: 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
