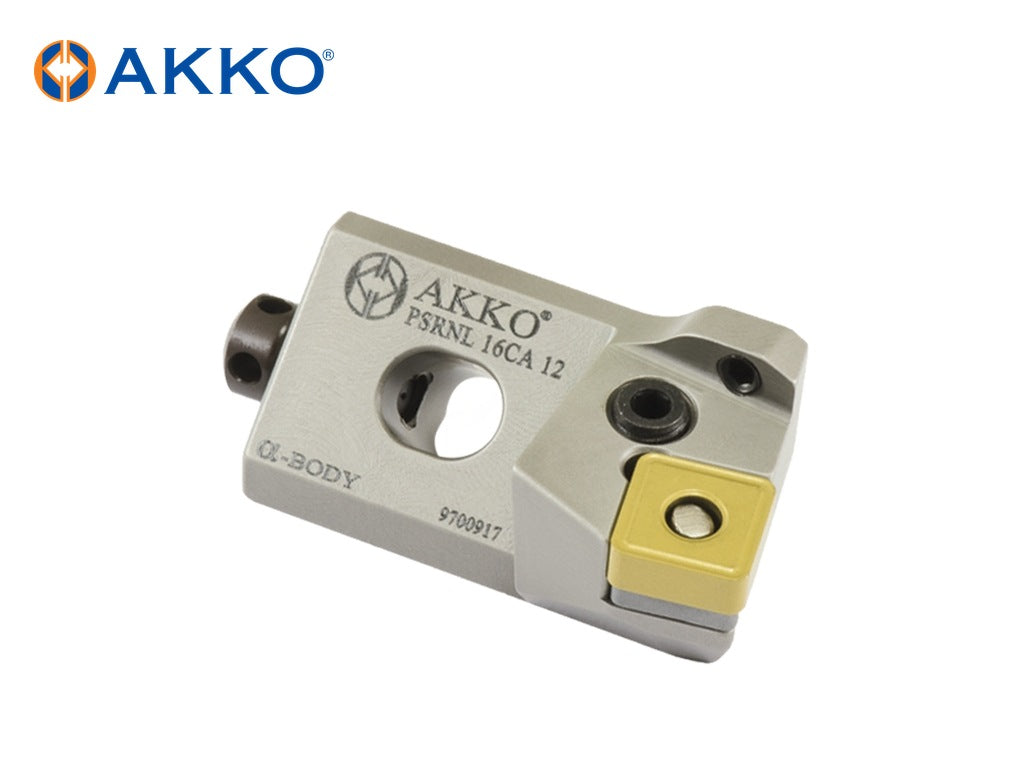

AKKO PSRNR/L – P-System Cartridge from the AKKO P-System Cartridges range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: SN.. 120408. 2 sizes listed below.

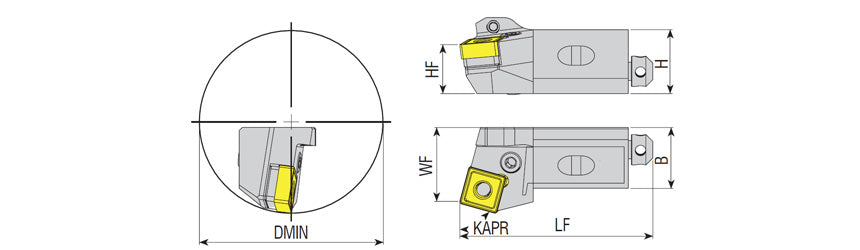

Specifications
-
Shank Height (H): 21 mm
-
Functional Width (WF): 25 mm
-
Functional Length (LF): 63 mm
-
Clamping Type: P System
-
Shank Width (B): 20 mm
-
Functional Height (HF): 16 mm
-
Minimum Bore Diameter (Dmin): ≥60
-
Insert Inscribed Circle: 12.70 mm
-
Insert Size: 120408
-
Insert Style: SN..
-
Side Cutting Angle (KAPR): 75°
Sizes and dimensions
| AKKO code |
Hand (R/L) |
| PSRNL 16CA 12 |
L |
| PSRNR 16CA 12 |
R |
Spare parts (AKKO codes)
-
Shim: AASN-3-0004
-
Shim Spring: AAY-02
-
Allen Key: AAL-03-3
-
Adjustment Screw: 2600-M6x18
-
Lever: APL-02
-
Lever Screw: ALV-03-M8X19
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
