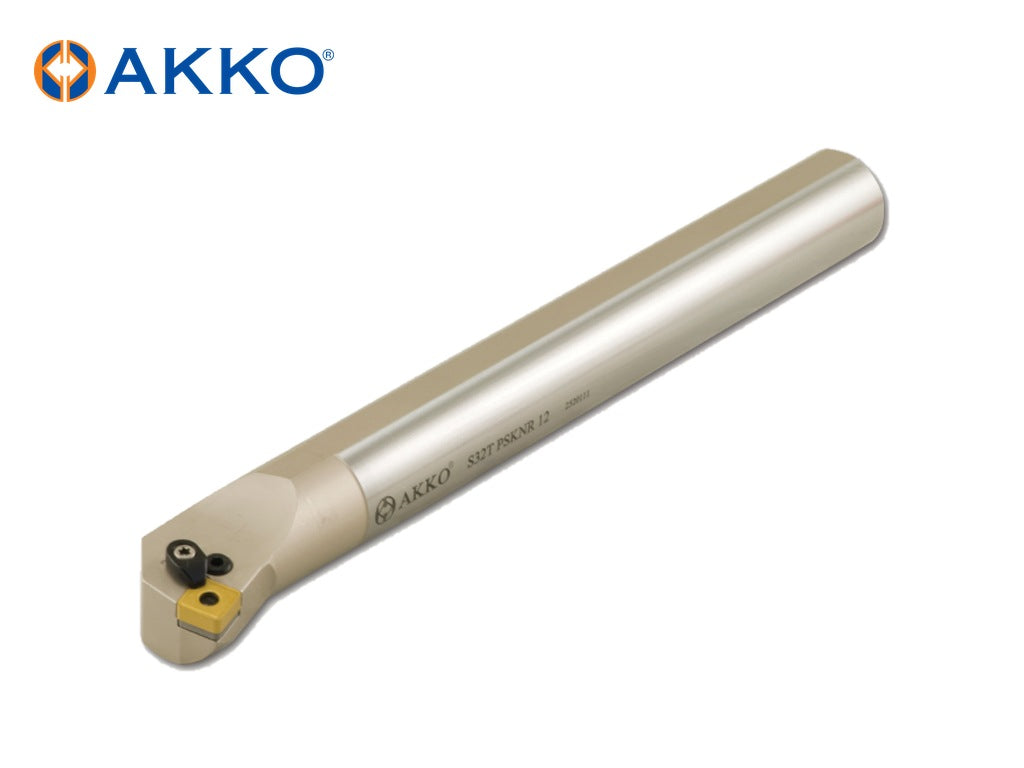

AKKO PSKNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: SN.. 1204.., SN.. 1506.. 28 sizes listed below.

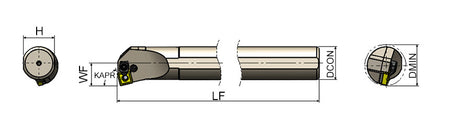

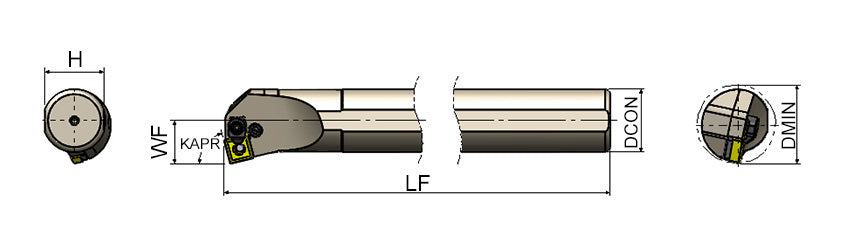

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Insert Size |
|---|---|---|---|---|---|---|---|
| A25R PSKNL 12C | L | 25 | 200 | 17 | ≥32 mm | Yes | 1204.. |
| A25R PSKNR 12C | R | 25 | 200 | 17 | ≥32 mm | Yes | 1204.. |
| A32S PSKNL 12C | L | 32 | 250 | 22 | ≥40 mm | Yes | 1204.. |
| A32S PSKNL 15C | L | 32 | 250 | 22 | ≥40 mm | Yes | 1506.. |
| A32S PSKNR 12C | R | 32 | 250 | 22 | ≥40 mm | Yes | 1204.. |
| A32S PSKNR 15C | R | 32 | 250 | 22 | ≥40 mm | Yes | 1506.. |
| A40T PSKNL 12C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1204.. |
| A40T PSKNL 15C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1506.. |
| A40T PSKNR 12C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1204.. |
| A40T PSKNR 15C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1506.. |
| A50U PSKNL 12C | L | 50 | 350 | 35 | ≥63 mm | Yes | 1204.. |
| A50U PSKNL 15C | L | 50 | 350 | 35 | ≥63 mm | Yes | 1506.. |
| A50U PSKNR 12C | R | 50 | 350 | 35 | ≥63 mm | Yes | 1204.. |
| A50U PSKNR 15C | R | 50 | 350 | 35 | ≥63 mm | Yes | 1506.. |
| S25S PSKNL 12C | L | 25 | 250 | 17 | ≥32 mm | No | 1204.. |
| S25S PSKNR 12C | R | 25 | 250 | 17 | ≥32 mm | No | 1204.. |
| S32T PSKNL 12C | L | 32 | 300 | 22 | ≥40 mm | No | 1204.. |
| S32T PSKNL 15C | L | 32 | 300 | 22 | ≥40 mm | No | 1506.. |
| S32T PSKNR 12C | R | 32 | 300 | 22 | ≥40 mm | No | 1204.. |
| S32T PSKNR 15C | R | 32 | 300 | 22 | ≥40 mm | No | 1506.. |
| S40U PSKNL 12C | L | 40 | 350 | 27 | ≥50 mm | No | 1204.. |
| S40U PSKNL 15C | L | 40 | 350 | 27 | ≥50 mm | No | 1506.. |
| S40U PSKNR 12C | R | 40 | 350 | 27 | ≥50 mm | No | 1204.. |
| S40U PSKNR 15C | R | 40 | 350 | 27 | ≥50 mm | No | 1506.. |
| S50V PSKNL 12C | L | 50 | 400 | 35 | ≥63 mm | No | 1204.. |
| S50V PSKNL 15C | L | 50 | 400 | 35 | ≥63 mm | No | 1506.. |
| S50V PSKNR 12C | R | 50 | 400 | 35 | ≥63 mm | No | 1204.. |
| S50V PSKNR 15C | R | 50 | 400 | 35 | ≥63 mm | No | 1506.. |
| AKKO code | Shim | Shim Spring | Clamp | Lever | Lever Screw | Set Screw | Torx Screw | Shim Screw |
|---|---|---|---|---|---|---|---|---|
| A25R PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-08-M8X16 | 2725-M5x6 | 4015-M4X11 | – |
| A25R PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-08-M8X16 | 2725-M5x6 | 4015-M4X11 | – |
| A32S PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A32S PSKNL 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| A32S PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A32S PSKNR 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| A40T PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A40T PSKNL 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| A40T PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A40T PSKNR 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| A50U PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A50U PSKNL 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| A50U PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | 2725-M5x6 | 4015-M4X11 | – |
| A50U PSKNR 15C | AASN-3-0023 | AAY-03 | ACK-09 | APL-04 | ALV-04-M8X22 | 2725-M5x6 | – | AAV-05-M6X15 |
| S25S PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-08-M8X16 | – | 4015-M4X11 | – |
| S25S PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-08-M8X16 | – | 4015-M4X11 | – |
| S32T PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S32T PSKNL 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
| S32T PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S32T PSKNR 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
| S40U PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S40U PSKNL 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
| S40U PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S40U PSKNR 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
| S50V PSKNL 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S50V PSKNL 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
| S50V PSKNR 12C | AASN-3-0004 | AAY-02 | ACK-05 | APL-02 | ALV-03-M8X19 | – | 4015-M4X11 | – |
| S50V PSKNR 15C | AASN-3-0023 | AAY-03 | – | APL-04 | ALV-04-M8X22 | – | – | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
