This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

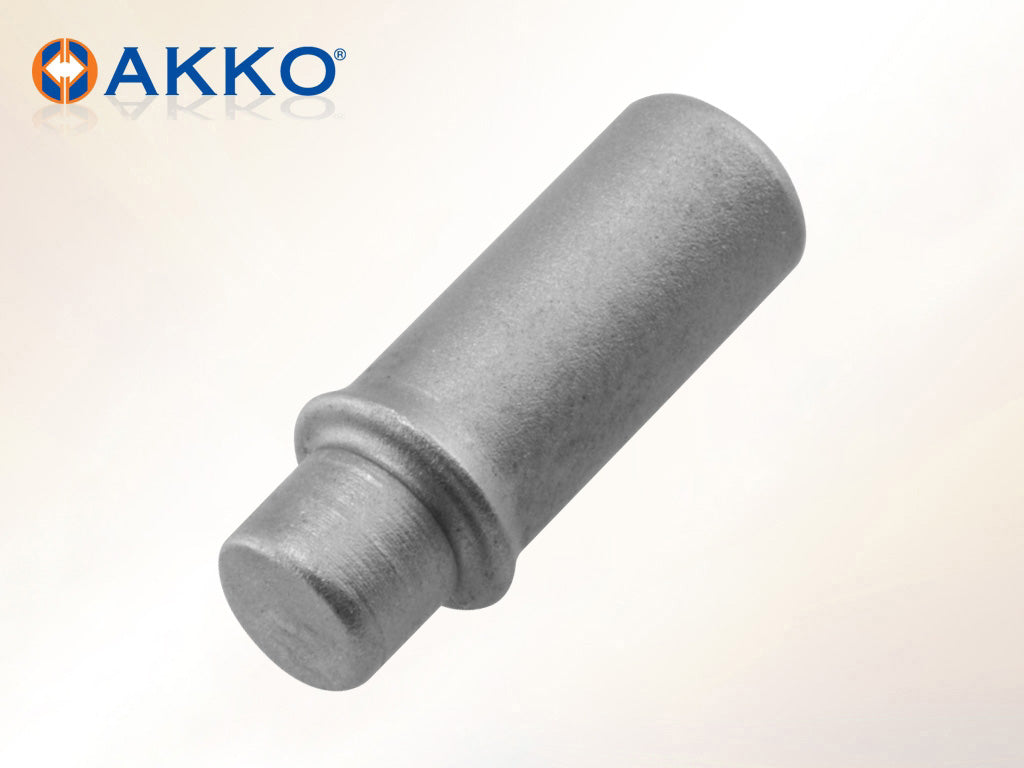

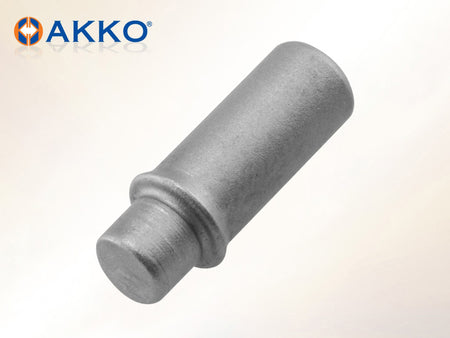

AKKO Pins from the AKKO Pins range. 15 sizes listed below.
| AKKO code | a | b | c | d | B |
|---|---|---|---|---|---|
| APM-01 | 3.55 | 18 | 5 | 6 | - |
| APM-02 | 5 | 18 | 6 | 7.3 | - |
| APM-03 | 3.5 | 12 | 5 | 6.5 | - |
| APM-04 | 5 | 15 | 6 | 7.3 | - |
| APM-05 | 4.5 | 11.5 | 6.5 | 6.5 | 3 |
| APM-06 | 3 | 15.7 | - | - | - |
| APM-07 | 3.5 | 11.5 | 5 | 6.5 | 3 |
| APM-08 | 3.5 | 12 | 5 | 5.4 | - |
| APM-09 | 3.5 | 10 | 5 | 5.4 | - |
| APM-10 | 3.5 | 11 | 5 | 5.4 | - |
| APM-11 | 3.5 | 11 | 5 | 6.5 | - |
| APM-12 | 5 | 12 | 6 | 7.3 | - |
| APM-13 | 5 | 14 | 6 | 7.3 | - |
| APM-14 | 3.55 | 15 | 5 | 6 | - |
| APM-15 | 4.4 | 16 | 6.4 | 6.4 | 3 |

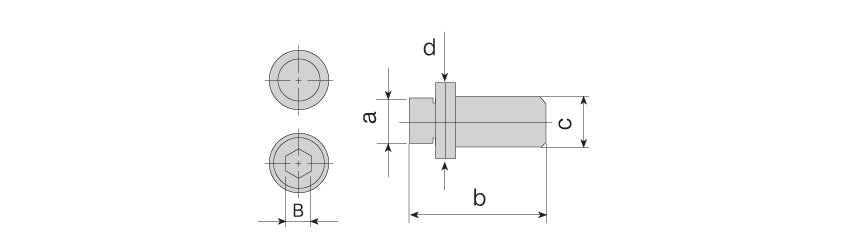

Dimension key (letters as on the drawing):
Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.
