This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

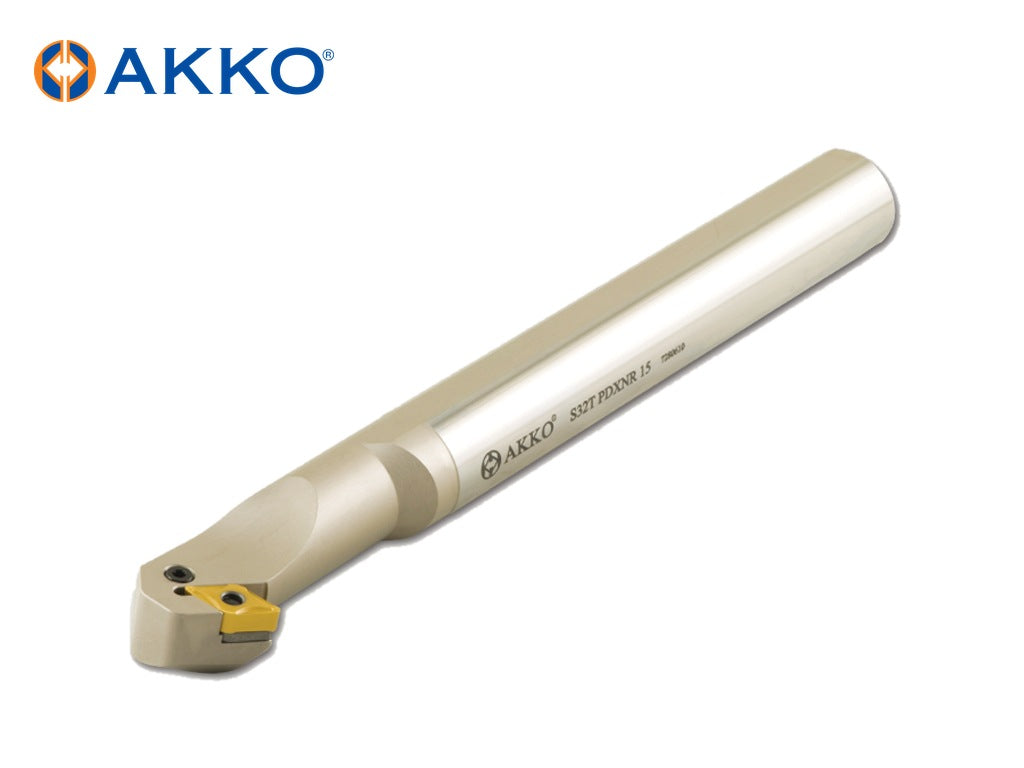

AKKO PDXNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: DN.. 1506.. 12 sizes listed below.

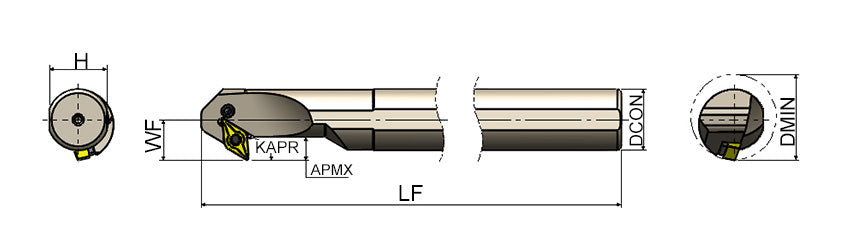

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Maximum Depth of Cut (APMX, mm) |
|---|---|---|---|---|---|---|---|
| A32S PDXNL 15 | L | 32 | 250 | 22 | ≥40 mm | Yes | 12 |
| A32S PDXNR 15 | R | 32 | 250 | 22 | ≥40 mm | Yes | 12 |
| A40T PDXNL 15 | L | 40 | 300 | 27 | ≥50 mm | Yes | 14 |
| A40T PDXNR 15 | R | 40 | 300 | 27 | ≥50 mm | Yes | 14 |
| A50U PDXNL 15 | L | 50 | 350 | 35 | ≥63 mm | Yes | 19 |
| A50U PDXNR 15 | R | 50 | 350 | 35 | ≥63 mm | Yes | 19 |
| S32T PDXNL 15 | L | 32 | 300 | 22 | ≥45 mm | No | 12 |
| S32T PDXNR 15 | R | 32 | 300 | 22 | ≥45 mm | No | 12 |
| S40U PDXNL 15 | L | 40 | 350 | 27 | ≥50 mm | No | 14 |
| S40U PDXNR 15 | R | 40 | 350 | 27 | ≥50 mm | No | 14 |
| S50V PDXNL 15 | L | 50 | 400 | 35 | ≥63 mm | No | 19 |
| S50V PDXNR 15 | R | 50 | 400 | 35 | ≥63 mm | No | 19 |
| AKKO code | Lever Screw |
|---|---|
| A32S PDXNL 15 | ALV-08-M8X16 |
| A32S PDXNR 15 | ALV-08-M8X16 |
| A40T PDXNL 15 | ALV-03-M8X19 |
| A40T PDXNR 15 | ALV-03-M8X19 |
| A50U PDXNL 15 | ALV-03-M8X19 |
| A50U PDXNR 15 | ALV-03-M8X19 |
| S32T PDXNL 15 | ALV-08-M8X16 |
| S32T PDXNR 15 | ALV-08-M8X16 |
| S40U PDXNL 15 | ALV-03-M8X19 |
| S40U PDXNR 15 | ALV-03-M8X19 |
| S50V PDXNL 15 | ALV-03-M8X19 |
| S50V PDXNR 15 | ALV-03-M8X19 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
