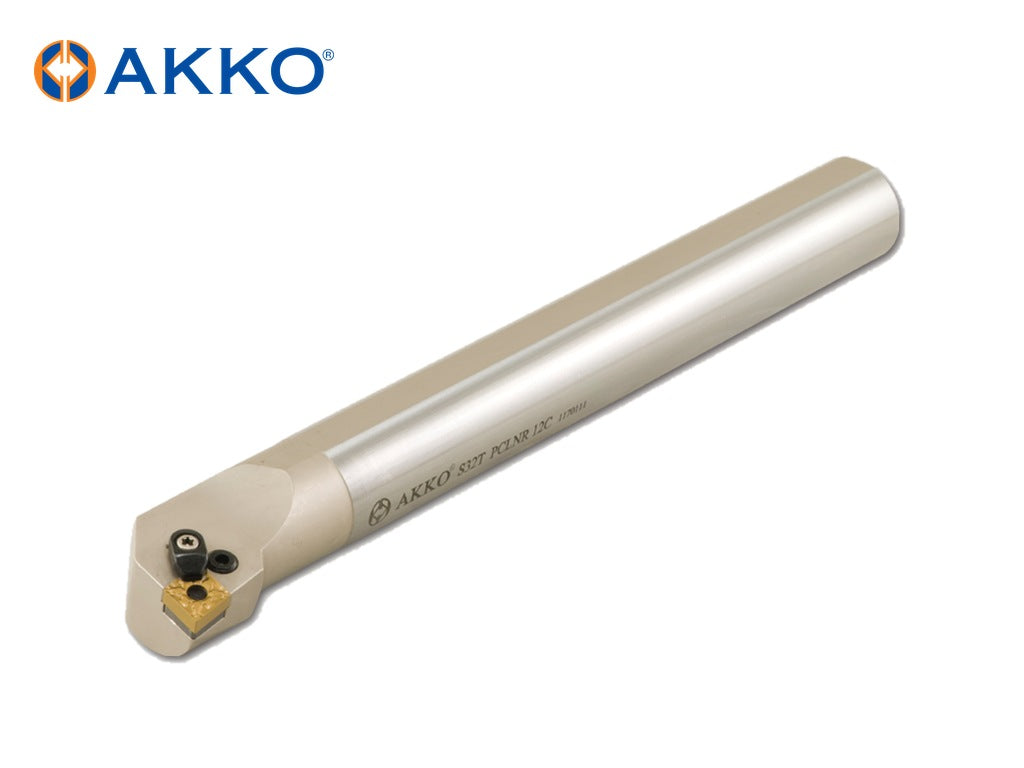

AKKO PCLNR/L – P-System Boring Bar from the AKKO P-System Boring Bars range. Insert clamping: lever lock through the insert hole. Available in right-hand and left-hand versions. For inserts: CN.. 0903.., CN.. 1204.., CN.. 1606.., CN.. 1906.. 52 sizes listed below.

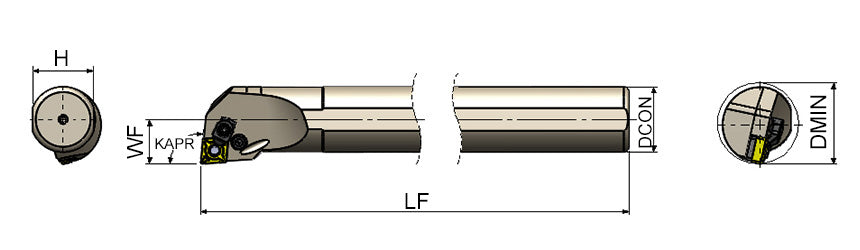

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) | Coolant Through | Insert Size |
|---|---|---|---|---|---|---|---|
| A16R PCLNL 09 | L | 16 | 200 | 11 | ≥20 mm | Yes | 0903.. |
| A16R PCLNR 09 | R | 16 | 200 | 11 | ≥20 mm | Yes | 0903.. |
| A20P PCLNL 09 | L | 20 | 170 | 13 | ≥25 mm | Yes | 0903.. |
| A20P PCLNR 09 | R | 20 | 170 | 13 | ≥25 mm | Yes | 0903.. |
| A25R PCLNL 12C | L | 25 | 200 | 17 | ≥32 mm | Yes | 1204.. |
| A25R PCLNR 12C | R | 25 | 200 | 17 | ≥32 mm | Yes | 1204.. |
| A25S PCLNL 12C | L | 25 | 250 | 17 | ≥32 mm | Yes | 1204.. |
| A25S PCLNR 12C | R | 25 | 250 | 17 | ≥32 mm | Yes | 1204.. |
| A32S PCLNL 12C | L | 32 | 250 | 22 | ≥40 mm | Yes | 1204.. |
| A32S PCLNL 16C | L | 32 | 250 | 22 | ≥40 mm | Yes | 1606.. |
| A32S PCLNR 12C | R | 32 | 250 | 22 | ≥40 mm | Yes | 1204.. |
| A32S PCLNR 16C | R | 32 | 250 | 22 | ≥40 mm | Yes | 1606.. |
| A32T PCLNL 12C | L | 32 | 300 | 22 | ≥40 mm | Yes | 1204.. |
| A32T PCLNR 12C | R | 32 | 300 | 22 | ≥40 mm | Yes | 1204.. |
| A40T PCLNL 12C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1204.. |
| A40T PCLNL 16C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1606.. |
| A40T PCLNL 19C | L | 40 | 300 | 27 | ≥50 mm | Yes | 1906.. |
| A40T PCLNR 12C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1204.. |
| A40T PCLNR 16C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1606.. |
| A40T PCLNR 19C | R | 40 | 300 | 27 | ≥50 mm | Yes | 1906.. |
| A50U PCLNL 12C | L | 50 | 350 | 35 | ≥63 mm | Yes | 1204.. |
| A50U PCLNL 16C | L | 50 | 350 | 35 | ≥63 mm | Yes | 1606.. |
| A50U PCLNL 19C | L | 50 | 350 | 35 | ≥63 mm | Yes | 1906.. |
| A50U PCLNR 12C | R | 50 | 350 | 35 | ≥63 mm | Yes | 1204.. |
| A50U PCLNR 16C | R | 50 | 350 | 35 | ≥63 mm | Yes | 1606.. |
| A50U PCLNR 19C | R | 50 | 350 | 35 | ≥63 mm | Yes | 1906.. |
| S16P PCLNL 09 | L | 16 | 170 | 11 | ≥20 mm | No | 0903.. |
| S16P PCLNR 09 | R | 16 | 170 | 11 | ≥20 mm | No | 0903.. |
| S20R PCLNL 09 | L | 20 | 200 | 13 | ≥25 mm | No | 0903.. |
| S20R PCLNR 09 | R | 20 | 200 | 13 | ≥25 mm | No | 0903.. |
| S25S PCLNL 09 | L | 25 | 250 | 17 | ≥32 mm | No | 0903.. |
| S25S PCLNL 12C | L | 25 | 250 | 17 | ≥32 mm | No | 1204.. |
| S25S PCLNR 09 | R | 25 | 250 | 17 | ≥32 mm | No | 0903.. |
| S25S PCLNR 12C | R | 25 | 250 | 17 | ≥32 mm | No | 1204.. |
| S32T PCLNL 12C | L | 32 | 300 | 22 | ≥40 mm | No | 1204.. |
| S32T PCLNL 16C | L | 32 | 300 | 22 | ≥40 mm | No | 1606.. |
| S32T PCLNR 12C | R | 32 | 300 | 22 | ≥40 mm | No | 1204.. |
| S32T PCLNR 16C | R | 32 | 300 | 22 | ≥40 mm | No | 1606.. |
| S32U PCLNL 12C | L | 32 | 350 | 22 | ≥40 mm | No | 1204.. |
| S32U PCLNR 12C | R | 32 | 350 | 22 | ≥40 mm | No | 1204.. |
| S40U PCLNL 12C | L | 40 | 350 | 27 | ≥50 mm | No | 1204.. |
| S40U PCLNL 16C | L | 40 | 350 | 27 | ≥50 mm | No | 1606.. |
| S40U PCLNL 19C | L | 40 | 350 | 27 | ≥50 mm | No | 1906.. |
| S40U PCLNR 12C | R | 40 | 350 | 27 | ≥50 mm | No | 1204.. |
| S40U PCLNR 16C | R | 40 | 350 | 27 | ≥50 mm | No | 1606.. |
| S40U PCLNR 19C | R | 40 | 350 | 27 | ≥50 mm | No | 1906.. |
| S50V PCLNL 12C | L | 50 | 400 | 35 | ≥63 mm | No | 1204.. |
| S50V PCLNL 16C | L | 50 | 400 | 35 | ≥63 mm | No | 1606.. |
| S50V PCLNL 19C | L | 50 | 400 | 35 | ≥63 mm | No | 1906.. |
| S50V PCLNR 12C | R | 50 | 400 | 35 | ≥63 mm | No | 1204.. |
| S50V PCLNR 16C | R | 50 | 400 | 35 | ≥63 mm | No | 1606.. |
| S50V PCLNR 19C | R | 50 | 400 | 35 | ≥63 mm | No | 1906.. |
| AKKO code | Shim Spring | Allen Key | Lever | Lever Screw | Shim | Clamp | Torx Screw | Set Screw | Shim Screw |
|---|---|---|---|---|---|---|---|---|---|
| A16R PCLNL 09 | AAY-07 | AAL-02-2.5 | APL-07 | ALV-07-M6X13 | – | – | – | – | – |
| A16R PCLNR 09 | AAY-07 | AAL-02-2.5 | APL-07 | ALV-07-M6X13 | – | – | – | – | – |
| A20P PCLNL 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AACN-2-0002 | – | – | – | – |
| A20P PCLNR 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AACN-2-0002 | – | – | – | – |
| A25R PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| A25R PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| A25S PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A25S PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| A32S PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A32S PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A32S PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A32S PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A32T PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A32T PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A40T PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| A40T PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A40T PCLNL 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A40T PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| A40T PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A40T PCLNR 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A50U PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A50U PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A50U PCLNL 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A50U PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | 2725-M5x6 | – |
| A50U PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| A50U PCLNR 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | 2725-M5x6 | AAV-05-M6X15 |
| S16P PCLNL 09 | AAY-07 | AAL-02-2.5 | APL-07 | ALV-07-M6X13 | – | – | – | – | – |
| S16P PCLNR 09 | AAY-07 | AAL-02-2.5 | APL-07 | ALV-07-M6X13 | – | – | – | – | – |
| S20R PCLNL 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AACN-2-0002 | – | – | – | – |
| S20R PCLNR 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-01-M6X14 | AACN-2-0002 | – | – | – | – |
| S25S PCLNL 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AACN-2-0002 | – | – | – | – |
| S25S PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S25S PCLNR 09 | AAY-01 | AAL-02-2.5 | APL-01 | ALV-02-M6X17 | AACN-2-0002 | – | – | – | – |
| S25S PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-08-M8X16 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S32T PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S32T PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S32T PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S32T PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S32U PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S32U PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S40U PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S40U PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S40U PCLNL 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | – | AAV-05-M6X15 |
| S40U PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S40U PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S40U PCLNR 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | – | AAV-05-M6X15 |
| S50V PCLNL 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S50V PCLNL 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S50V PCLNL 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | – | AAV-05-M6X15 |
| S50V PCLNR 12C | AAY-02 | AAL-03-3 | APL-02 | ALV-03-M8X19 | AACN-3-0001 | ACK-05 | 4015-M4X11 | – | – |
| S50V PCLNR 16C | AAY-03 | AAL-03-3 | APL-04 | ALV-04-M8X22 | AACN-3-0002 | ACK-09 | – | – | AAV-05-M6X15 |
| S50V PCLNR 19C | AAY-04 | AAL-05-4 | APL-05 | ALV-05-M10X27 | AACN-3-0003 | ACK-09 | – | – | AAV-05-M6X15 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
