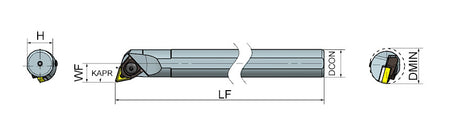

AKKO MTQNR/L M-System Boring Bar - dimension drawing

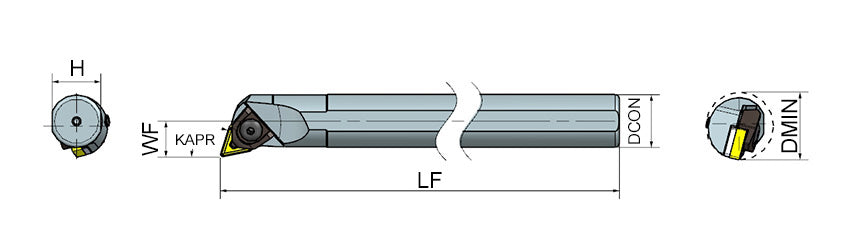

AKKO MTQNR/L M-System Boring Bar - dimension drawing
AKKO

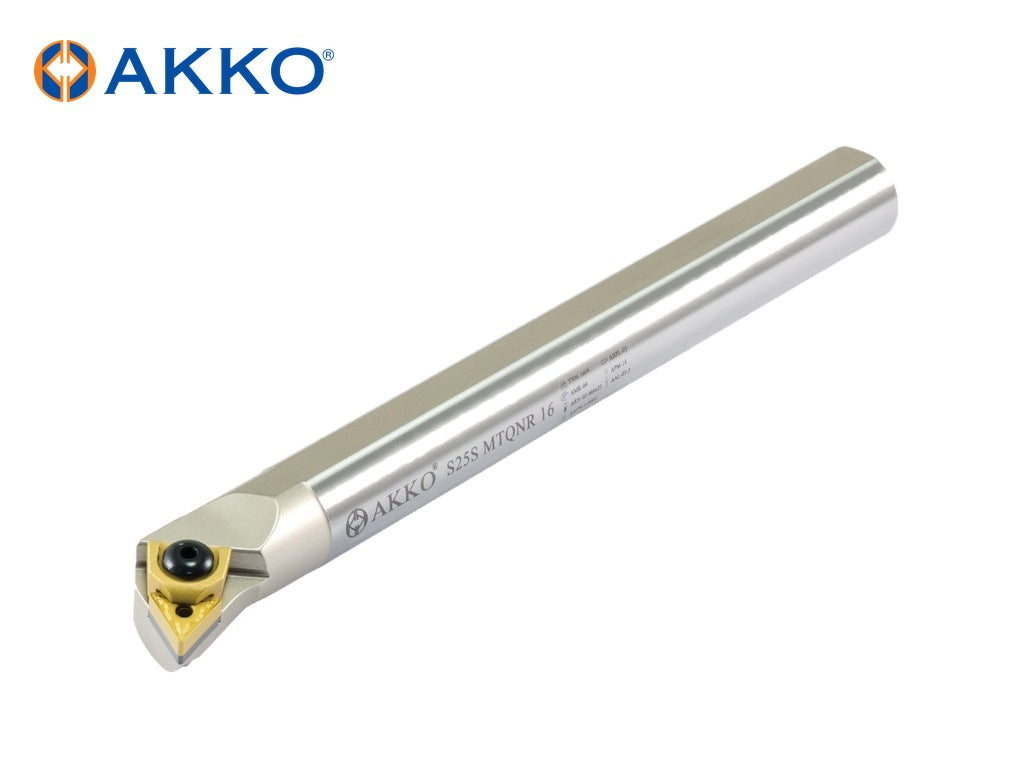

AKKO MTQNR/L M-System Boring Bar

Out of stock
SKU: S20R MTQNL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS20R MTQNL 16 SKUS20R MTQNL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MTQNR/L – M-System Boring Bar from the AKKO M-System Boring Bars range. Insert clamping: top clamp and pin. Available in right-hand and left-hand versions. For inserts: TN.. 1604.., TN.. 2204.. 16 sizes listed below.

Specifications

  • Clamping Type: M-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: TN..
  • Side Cutting Angle (KAPR): 107.5°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S20R MTQNL 16 L 20 200 13 ≥25 mm 1604..
S20R MTQNR 16 R 20 200 13 ≥25 mm 1604..
S25S MTQNL 16 L 25 250 17 ≥32 mm 1604..
S25S MTQNL 16-Z L 25 250 17 ≥32 mm 1604..
S25S MTQNR 16 R 25 250 17 ≥32 mm 1604..
S25S MTQNR 16-Z R 25 250 17 ≥32 mm 1604..
S32T MTQNL 16 L 32 300 22 ≥40 mm 1604..
S32T MTQNL 22 L 32 300 22 ≥40 mm 2204..
S32T MTQNR 16 R 32 300 22 ≥40 mm 1604..
S32T MTQNR 22 R 32 300 22 ≥40 mm 2204..
S40U MTQNL 16 L 40 350 27 ≥50 mm 1604..
S40U MTQNL 22 L 40 350 27 ≥50 mm 2204..
S40U MTQNR 16 R 40 350 27 ≥50 mm 1604..
S40U MTQNR 22 R 40 350 27 ≥50 mm 2204..
S50V MTQNL 22 L 50 400 35 ≥63 mm 2204..
S50V MTQNR 22 R 50 400 35 ≥63 mm 2204..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
AKKO code Clamp Clamp Screw Shim Stamp Ring
S20R MTQNL 16 AMK-02 AKV-17-M5X15 – – –
S20R MTQNR 16 AMK-02 AKV-17-M5X15 – – –
S25S MTQNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S25S MTQNL 16-Z AMK-04 AKV-30-M6X22 – ABPL-01 –
S25S MTQNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S25S MTQNR 16-Z AMK-04 AKV-30-M6X22 – ABPL-01 –
S32T MTQNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MTQNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S32T MTQNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MTQNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MTQNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MTQNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MTQNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MTQNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50V MTQNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50V MTQNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
