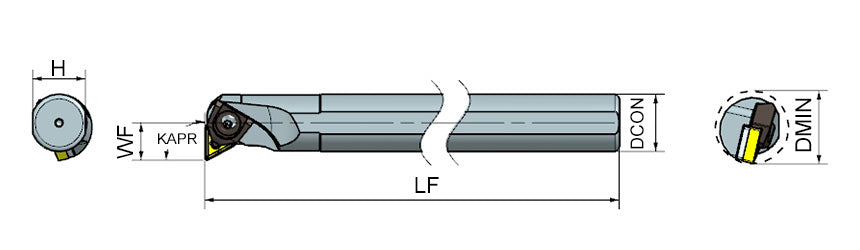

AKKO MTFNR/L M-System Boring Bar - dimension drawing

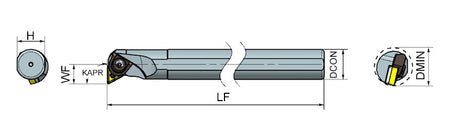

AKKO MTFNR/L M-System Boring Bar - dimension drawing
AKKO

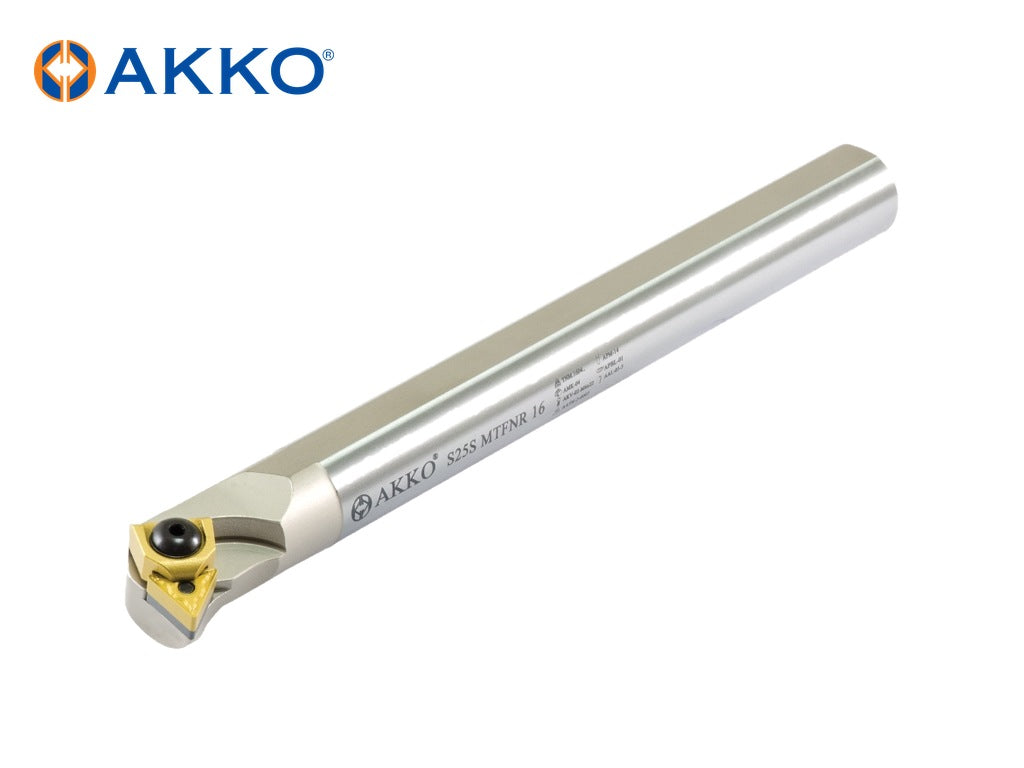

AKKO MTFNR/L M-System Boring Bar

Out of stock
SKU: S20R MTFNL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS20R MTFNL 16 SKUS20R MTFNL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MTFNR/L – M-System Boring Bar from the AKKO M-System Boring Bars range. Insert clamping: top clamp and pin. Available in right-hand and left-hand versions. For inserts: TN.. 1604.., TN.. 2204.. 14 sizes listed below.

Specifications

  • Clamping Type: M-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: TN..
  • Side Cutting Angle (KAPR): 90°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S20R MTFNL 16 L 20 200 14 ≥25 mm 1604..
S20R MTFNR 16 R 20 200 14 ≥25 mm 1604..
S25S MTFNL 16 L 25 250 17 ≥32 mm 1604..
S25S MTFNR 16 R 25 250 17 ≥32 mm 1604..
S32T MTFNL 16 L 32 300 22 ≥40 mm 1604..
S32T MTFNL 22 L 32 300 22 ≥40 mm 2204..
S32T MTFNR 16 R 32 300 22 ≥40 mm 1604..
S32T MTFNR 22 R 32 300 22 ≥40 mm 2204..
S40U MTFNL 16 L 40 350 27 ≥50 mm 1604..
S40U MTFNL 22 L 40 350 27 ≥50 mm 2204..
S40U MTFNR 16 R 40 350 27 ≥50 mm 1604..
S40U MTFNR 22 R 40 350 27 ≥50 mm 2204..
S50V MTFNL 22 L 50 400 35 ≥63 mm 2204..
S50V MTFNR 22 R 50 400 35 ≥63 mm 2204..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
AKKO code Clamp Clamp Screw Shim Stamp Ring
S20R MTFNL 16 AMK-02 AKV-17-M5X15 – – –
S20R MTFNR 16 AMK-02 AKV-17-M5X15 – – –
S25S MTFNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S25S MTFNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MTFNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MTFNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S32T MTFNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MTFNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MTFNL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MTFNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MTFNR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MTFNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50V MTFNL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50V MTFNR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
