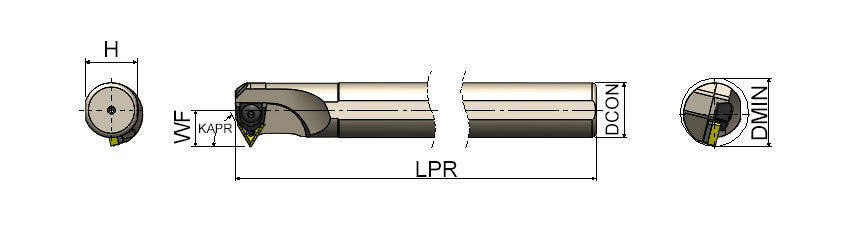

AKKO MT-NR/L M-System Boring Bar - dimension drawing
AKKO MT-NR/L M-System Boring Bar - dimension drawing
AKKO

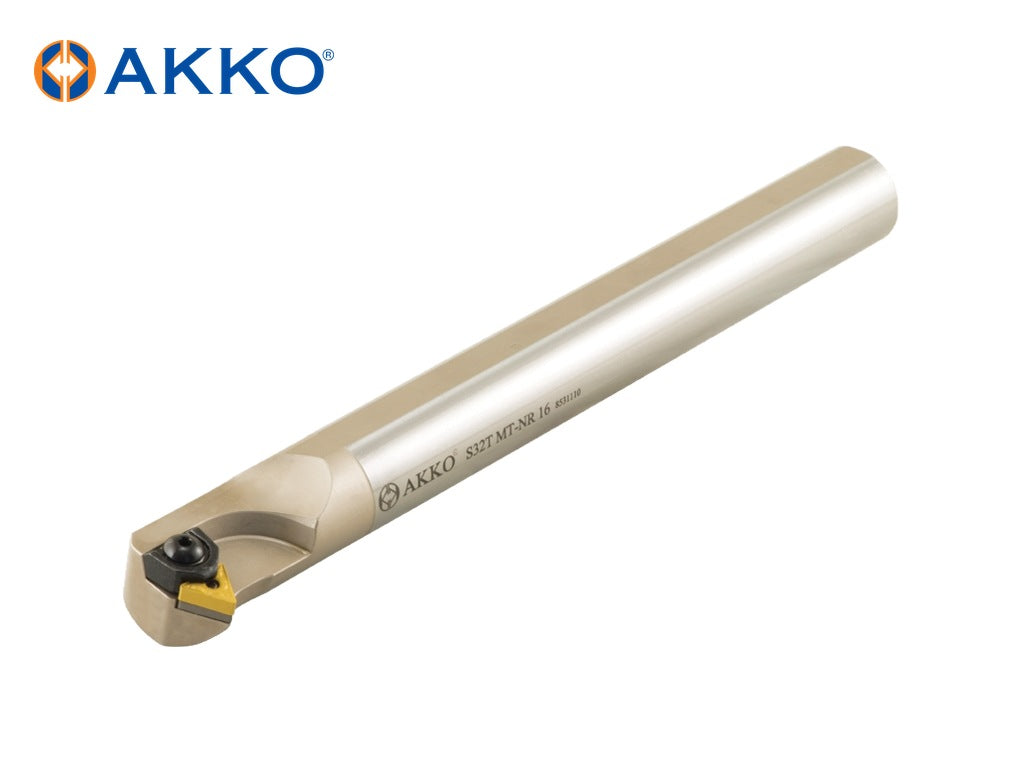

AKKO MT-NR/L M-System Boring Bar

Out of stock
SKU: S20R MT-NL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS20R MT-NL 16 SKUS20R MT-NL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MT-NR/L – M-System Boring Bar from the AKKO M-System Boring Bars range. Insert clamping: top clamp and pin. Available in right-hand and left-hand versions. For inserts: TN.. 1604.., TN.. 2204.. 15 sizes listed below.

Specifications

  • Clamping Type: M-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: TN..
  • Side Cutting Angle (KAPR): 60°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S20R MT-NL 16 L 20 200 14 ≥26 mm 1604..
S20R MT-NR 16 R 20 200 14 ≥26 mm 1604..
S25S MT-NL 16 L 25 250 17 ≥32 mm 1604..
S25S MT-NL 16-Z L 25 250 17 ≥32 mm 1604..
S25S MT-NR 16 R 25 250 17 ≥32 mm 1604..
S32T MT-NL 16 L 32 300 22 ≥40 mm 1604..
S32T MT-NL 22 L 32 300 24 ≥40 mm 2204..
S32T MT-NR 16 R 32 300 22 ≥40 mm 1604..
S32T MT-NR 22 R 32 300 24 ≥40 mm 2204..
S40U MT-NL 16 L 40 350 27 ≥50 mm 1604..
S40U MT-NL 22 L 40 350 27 ≥50 mm 2204..
S40U MT-NR 16 R 40 350 27 ≥50 mm 1604..
S40U MT-NR 22 R 40 350 27 ≥50 mm 2204..
S50U MT-NL 22 L 50 350 35 ≥63 mm 2204..
S50U MT-NR 22 R 50 350 35 ≥63 mm 2204..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
AKKO code Clamp Clamp Screw Shim Stamp Ring
S20R MT-NL 16 AMK-02 AKV-04-M5X17 – – –
S20R MT-NR 16 AMK-02 AKV-04-M5X17 – – –
S25S MT-NL 16 AMK-02 AKV-04-M5X17 – – –
S25S MT-NL 16-Z AMK-02 AKV-04-M5X17 – – –
S25S MT-NR 16 AMK-02 AKV-04-M5X17 AATN-2-0002 – –
S32T MT-NL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MT-NL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S32T MT-NR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S32T MT-NR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MT-NL 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MT-NL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S40U MT-NR 16 AMK-04 AKV-30-M6X22 AATN-2-0002 ABPL-01 AS-01
S40U MT-NR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50U MT-NL 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01
S50U MT-NR 22 AMK-08 AKV-30-M6X22 AATN-3-0015 ABPL-01 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
