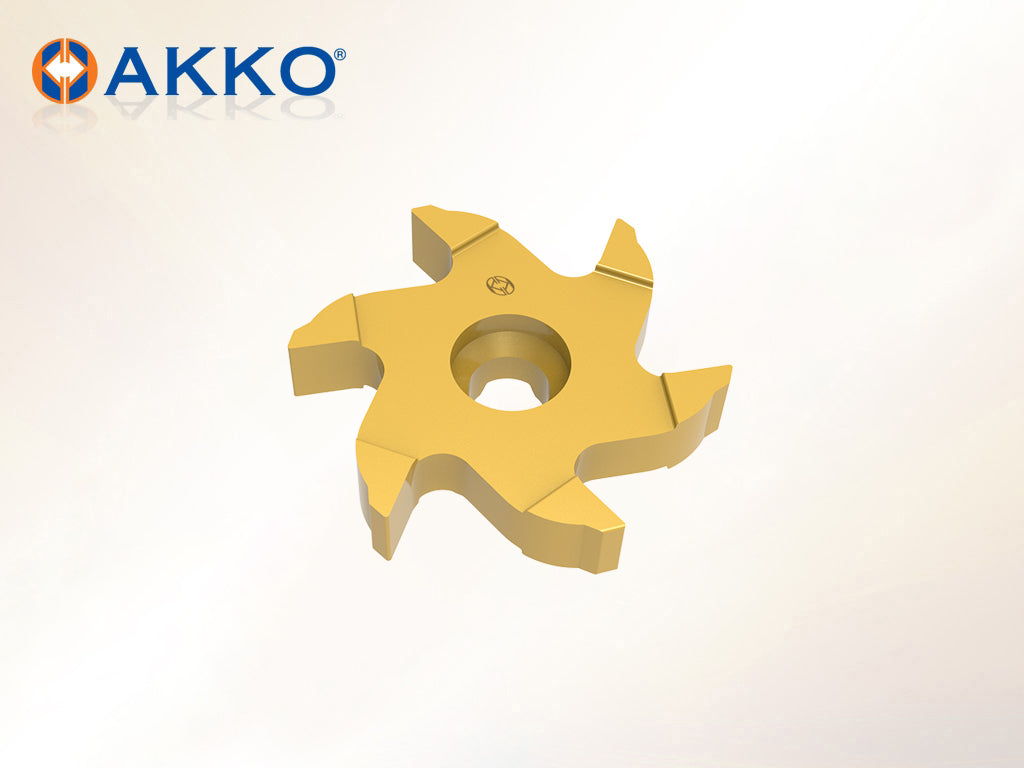

AKKO MM2806 Mimill Insert
AKKO MM2806 Mimill Insert - dimension drawing
AKKO MM2806 Mimill Insert
AKKO MM2806 Mimill Insert - dimension drawing
AKKO

AKKO MM2806 Mimill Insert

Out of stock
SKU: MM2806.G.0250.020.2770
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedMM2806.G.0250.020.2770 SKUMM2806.G.0250.020.2770

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MM2806 Mimill Insert from the AKKO Mimill Inserts range. 6 sizes listed below.

Sizes and dimensions (mm)

AKKO code S W Ødmin R tmax Quality
MM2806.G.0250.020.2770 5.9 2.5 27.7 0.2 6.5 VP3001
MM2806.G.0300.020.2770 5.9 3 27.7 0.2 6.5 VP3001
MM2806.G.0350.020.2770 5.9 3.5 27.7 0.2 6.5 VP3001
MM2806.G.0400.020.2770 5.9 4 27.7 0.2 6.5 VP3001
MM2806.G.0450.020.2770 5.9 4.5 27.7 0.2 6.5 VP3001
MM2806.G.0500.020.2770 5.9 5 27.7 0.2 6.5 VP3001

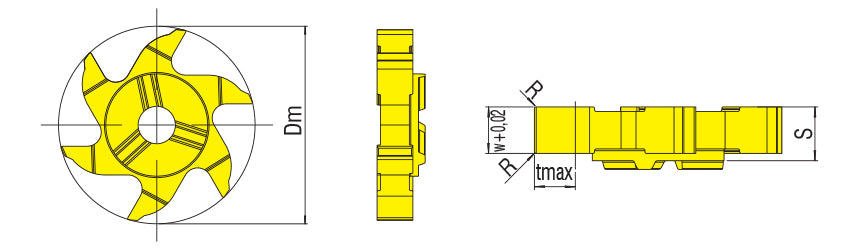

Dimension key (letters as on the drawing):

  • S: Thickness
  • W: Width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
