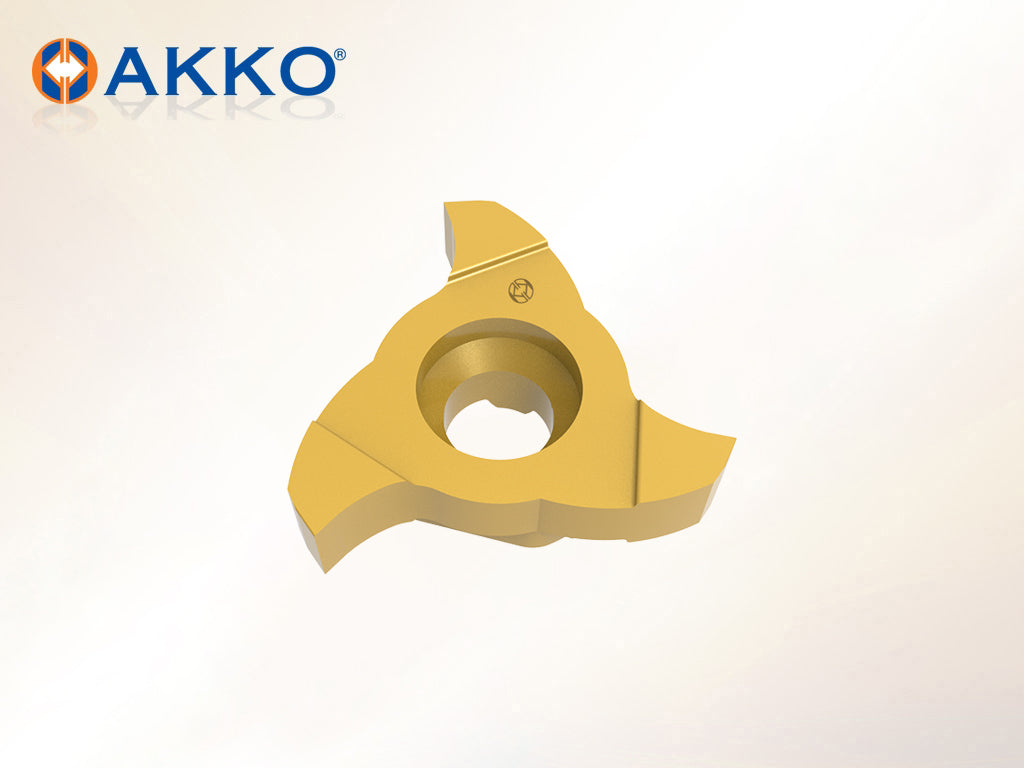

AKKO MM1803 Mimill Insert

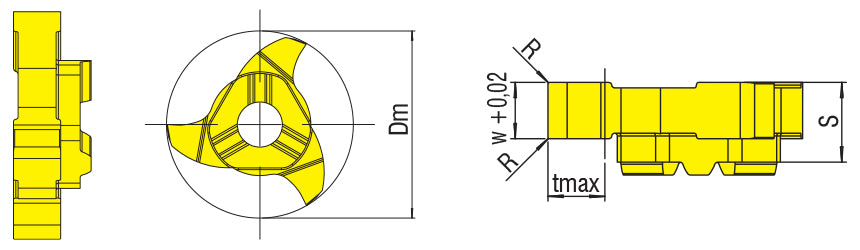

AKKO MM1803 Mimill Insert - dimension drawing
AKKO MM1803 Mimill Insert
AKKO MM1803 Mimill Insert - dimension drawing
AKKO

AKKO MM1803 Mimill Insert

Out of stock
SKU: MM1803.G.0150.010.0177
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedMM1803.G.0150.010.0177 SKUMM1803.G.0150.010.0177

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MM1803 Mimill Insert from the AKKO Mimill Inserts range. 4 sizes listed below.

Sizes and dimensions (mm)

AKKO code S W Ødmin R tmax Quality
MM1803.G.0150.010.0177 5.7 1.5 17.7 0.1 3.5 VP3001
MM1803.G.0200.020.0177 5.7 2 17.7 0.2 3.5 VP3001
MM1803.G.0250.020.0177 5.7 2.5 17.7 0.2 3.5 VP3001
MM1803.G.0300.020.0177 5.7 3 17.7 0.2 3.5 VP3001

Dimension key (letters as on the drawing):

  • S: Thickness
  • W: Width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
