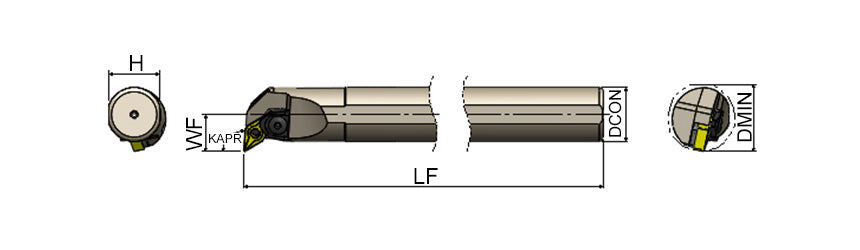

AKKO MDUNR/L M-System Boring Bar - dimension drawing

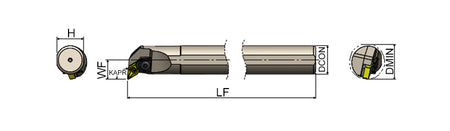

AKKO MDUNR/L M-System Boring Bar - dimension drawing
AKKO

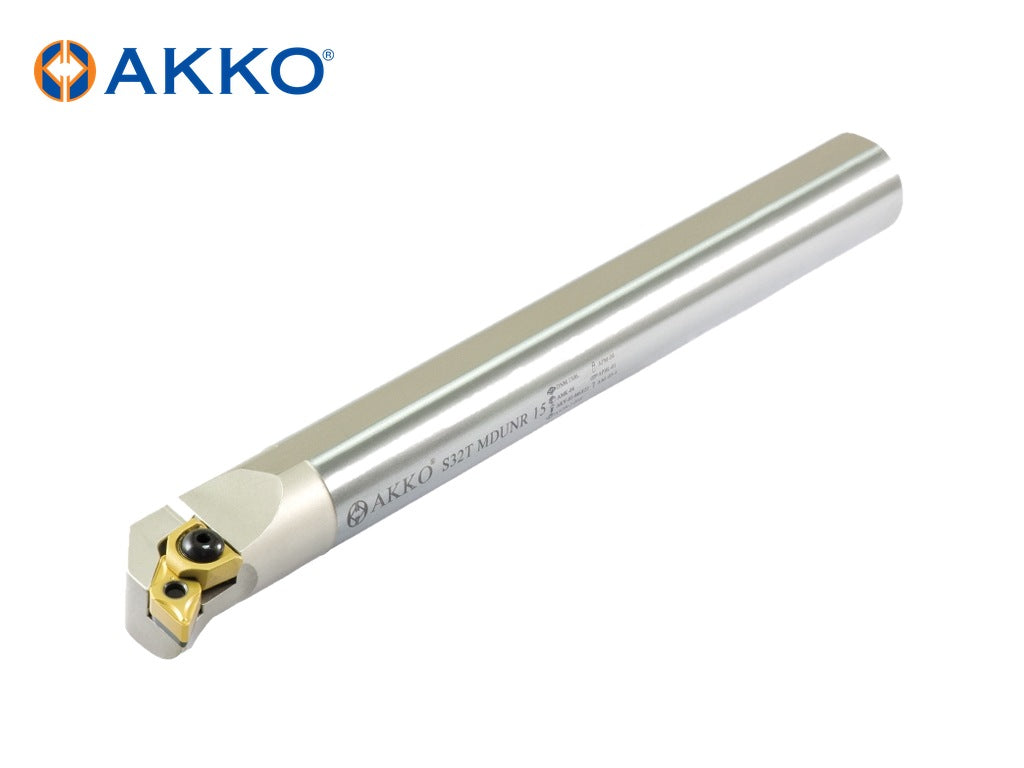

AKKO MDUNR/L M-System Boring Bar

Out of stock
SKU: S20R MDUNL 11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS20R MDUNL 11 SKUS20R MDUNL 11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MDUNR/L – M-System Boring Bar from the AKKO M-System Boring Bars range. Insert clamping: top clamp and pin. Available in right-hand and left-hand versions. For inserts: DN.. 1104.., DN.. 1506.. 16 sizes listed below.

Specifications

  • Clamping Type: M-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: DN..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S20R MDUNL 11 L 20 200 13 ≥25 mm 1104..
S20R MDUNR 11 R 20 200 13 ≥25 mm 1104..
S25S MDUNL 11 L 25 250 17 ≥32 mm 1104..
S25S MDUNL 15 L 25 250 17 ≥32 mm 1506..
S25S MDUNL 15-Z L 25 250 17 ≥32 mm 1506..
S25S MDUNR 11 R 25 250 17 ≥32 mm 1104..
S25S MDUNR 15 R 25 250 17 ≥32 mm 1506..
S25S MDUNR 15-Z R 25 250 17 ≥32 mm 1506..
S32T MDUNL 11 L 32 300 22 ≥40 mm 1104..
S32T MDUNL 15 L 32 300 22 ≥40 mm 1506..
S32T MDUNR 11 R 32 300 22 ≥40 mm 1104..
S32T MDUNR 15 R 32 300 22 ≥40 mm 1506..
S40U MDUNL 15 L 40 350 27 ≥50 mm 1506..
S40U MDUNR 15 R 40 350 27 ≥50 mm 1506..
S50V MDUNL 15 L 50 400 35 ≥63 mm 1506..
S50V MDUNR 15 R 50 400 35 ≥63 mm 1506..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
AKKO code Clamp Clamp Screw Shim Stamp Ring
S20R MDUNL 11 AMK-03 AKV-17-M5X15 – – –
S20R MDUNR 11 AMK-03 AKV-17-M5X15 – – –
S25S MDUNL 11 AMK-03 AKV-04-M5X17 – – –
S25S MDUNL 15 AMK-04 AKV-20-M6X19 AADN-3-0001 ABPL-01 AS-01
S25S MDUNL 15-Z AMK-04 AKV-20-M6X19 – ABPL-01 –
S25S MDUNR 11 AMK-03 AKV-04-M5X17 – – –
S25S MDUNR 15 AMK-04 AKV-20-M6X19 AADN-3-0001 ABPL-01 AS-01
S25S MDUNR 15-Z AMK-04 AKV-20-M6X19 – ABPL-01 –
S32T MDUNL 11 AMK-03 AKV-04-M5X17 – – –
S32T MDUNL 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 AS-01
S32T MDUNR 11 AMK-03 AKV-04-M5X17 – – –
S32T MDUNR 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 AS-01
S40U MDUNL 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 AS-01
S40U MDUNR 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 AS-01
S50V MDUNL 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 AS-01
S50V MDUNR 15 AMK-04 AKV-30-M6X22 AADN-3-0001 ABPL-01 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
