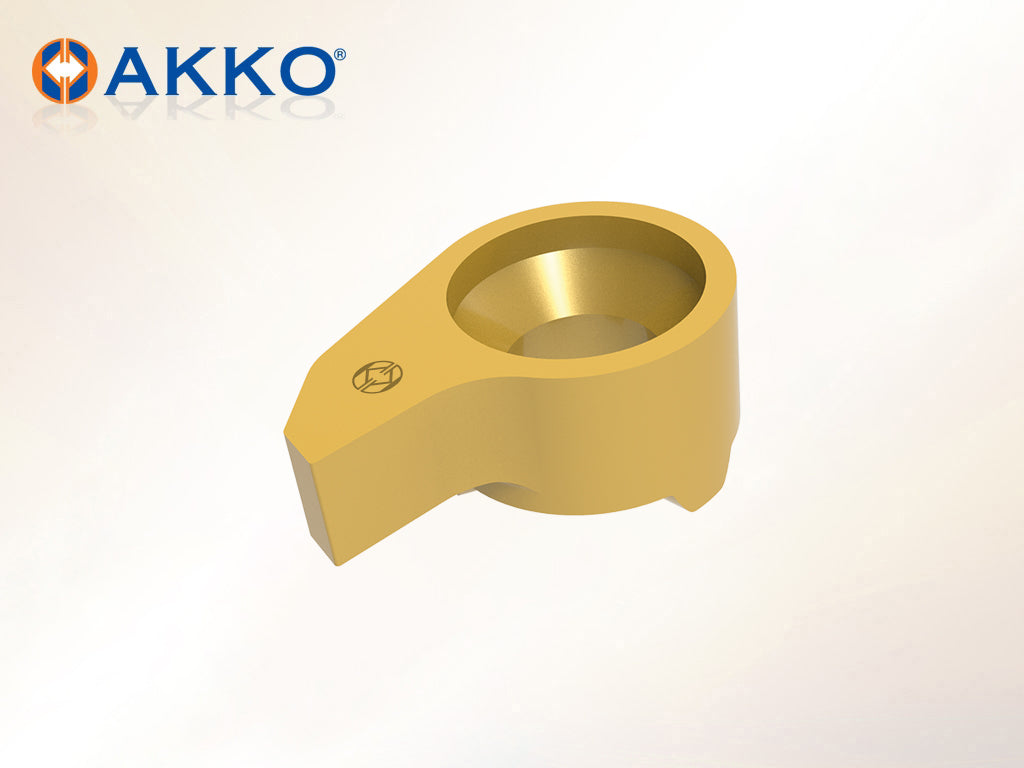

AKKO MC08 Mico Cut Insert

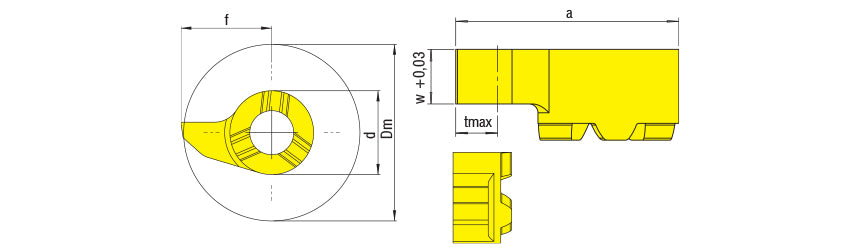

AKKO MC08 Mico Cut Insert - dimension drawing
AKKO MC08 Mico Cut Insert

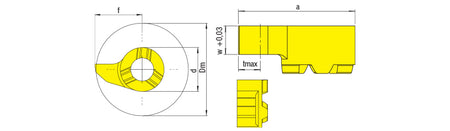

AKKO MC08 Mico Cut Insert - dimension drawing
AKKO

AKKO MC08 Mico Cut Insert

Out of stock
SKU: MC08.G.0100.010.01340
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedMC08.G.0100.010.01340 SKUMC08.G.0100.010.01340

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO MC08 Mico Cut Insert from the AKKO Mico Cut Inserts range. 5 sizes listed below.

Sizes and dimensions (mm)

AKKO code W Ødmin R tmax a d f Quality
MC08.G.0100.010.01340 1 13.4 0.1 2.3 10.7 8 6.7 VP3001
MC08.G.0150.015.01340 1.5 13.4 0.15 2.3 10.7 8 6.7 VP3001
MC08.G.0200.020.01340 2 13.4 0.2 2.3 10.7 8 6.7 VP3001
MC08.G.0250.025.01340 2.5 13.4 0.25 2.3 10.7 8 6.7 VP3001
MC08.G.0300.030.01340 3 13.4 0.3 2.3 10.7 8 6.7 VP3001

Dimension key (letters as on the drawing):

  • W: Width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
