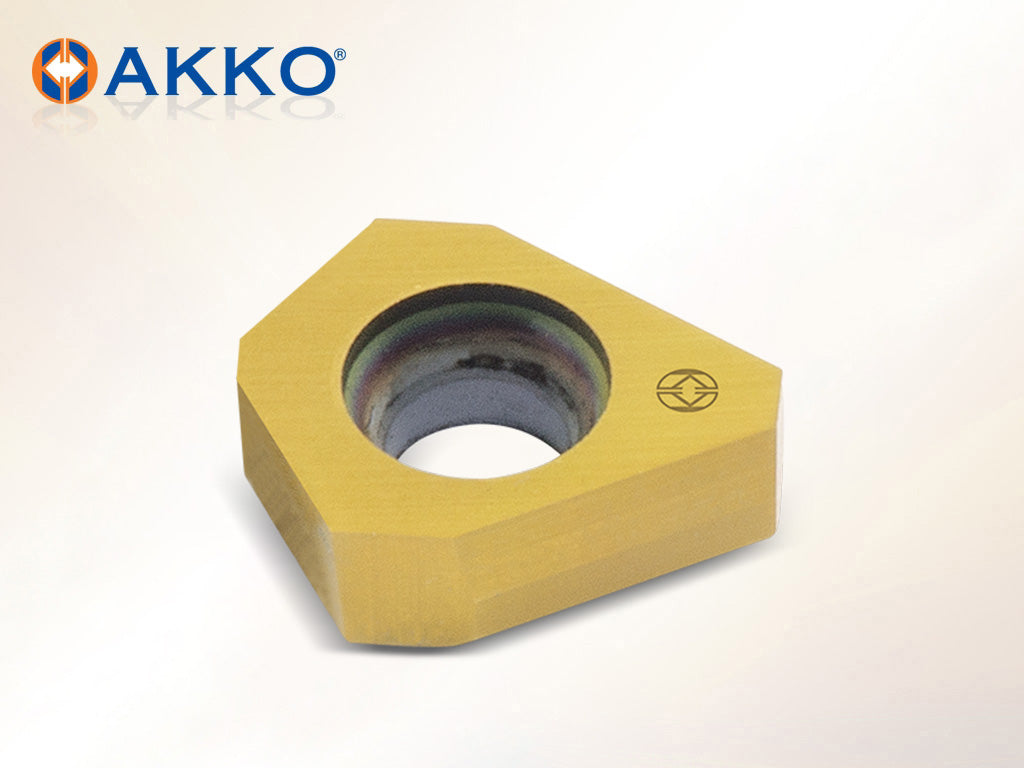

AKKO Keyway Chamfering Insert
AKKO Keyway Chamfering Insert - dimension drawing
AKKO Keyway Chamfering Insert
AKKO Keyway Chamfering Insert - dimension drawing
AKKO

AKKO Keyway Chamfering Insert

Out of stock
SKU: B41.00.0150.CH.VP3001
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedB41.00.0150.CH.VP3001 SKUB41.00.0150.CH.VP3001

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Keyway Chamfering Insert from the AKKO Inserts for Keyway Chamfering range. For inserts: B41.00.0150.CH.VP3001, B41.00.0300.CH.VP3001, B42.00.0600.CH.VP3001. 3 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert S CW
B41.00.0150.CH.VP3001 B41.00.0150.CH.VP3001 4 1.5
B41.00.0300.CH.VP3001 B41.00.0300.CH.VP3001 4 3
B42.00.0600.CH.VP3001 B42.00.0600.CH.VP3001 6 6

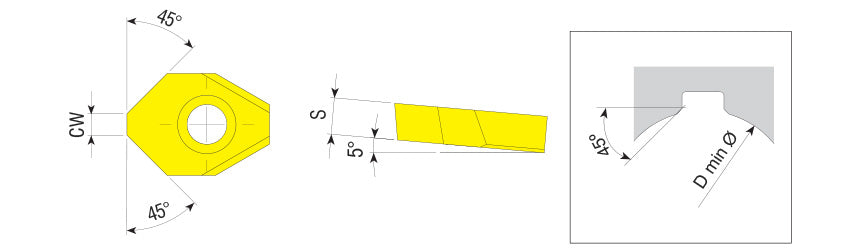

Dimension key (letters as on the drawing):

  • S: Thickness
  • CW: Cutting width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
