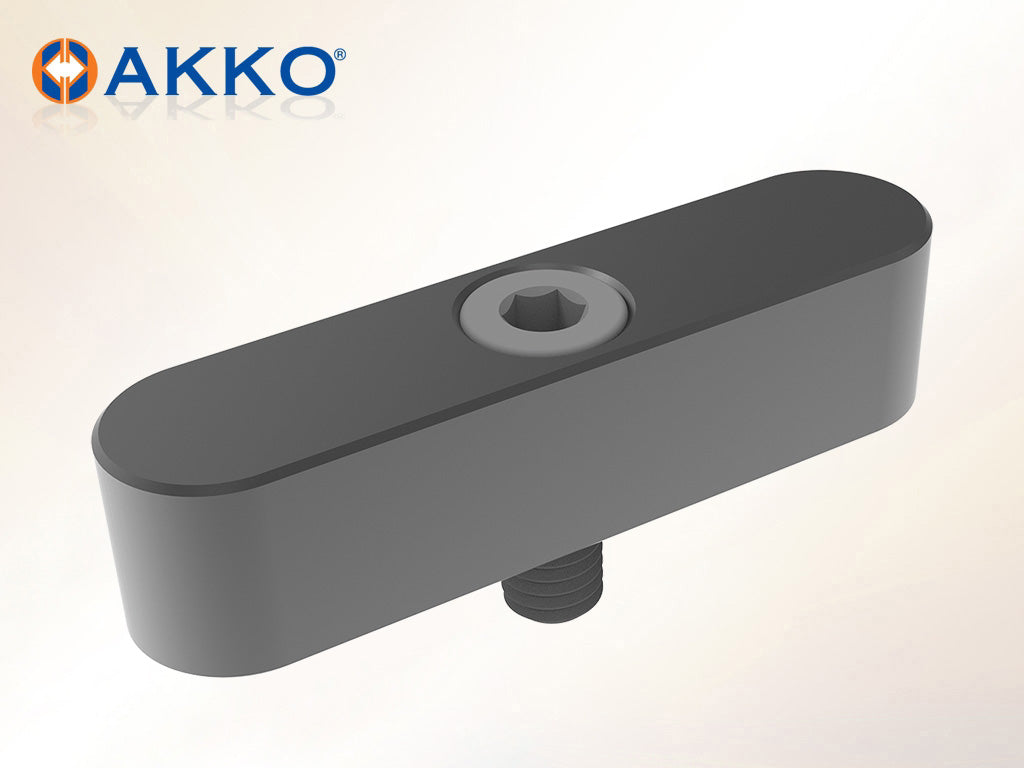

AKKO Keyway
AKKO Keyway - dimension drawing
AKKO Keyway
AKKO Keyway - dimension drawing
AKKO

AKKO Keyway

Out of stock
SKU: AHW-16-4x4x20
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHW-16-4x4x20 SKUAHW-16-4x4x20

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Keyway from the AKKO Keyway range. 5 sizes listed below.

Sizes and dimensions (mm)

AKKO code LB SCREW H B
AHW-16-4x4x20 20 M2x7 4 4
AHW-22-6x6x25 25 M4x4 6 6
AHW-27-7x7x25 25 M4x6 7 7
AHW-32-8x7x28 28 M4x6 7 8
AHW-40-10x8x32 32 M4x6 8 10

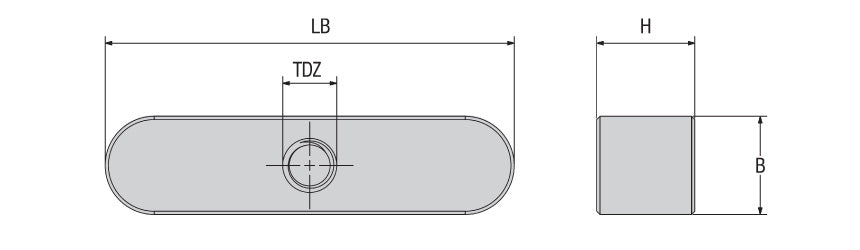

Dimension key (letters as on the drawing):

  • LB: Body length
  • H: Height
  • B: Shank width

Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
