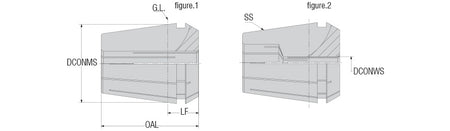

AKKO ER-S ER Collet (DIN 6499) - dimension drawing

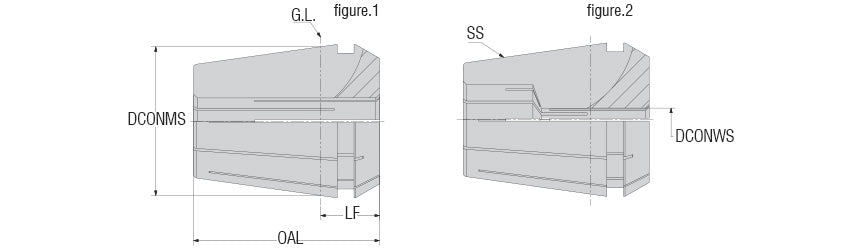

AKKO ER-S ER Collet (DIN 6499) - dimension drawing
AKKO

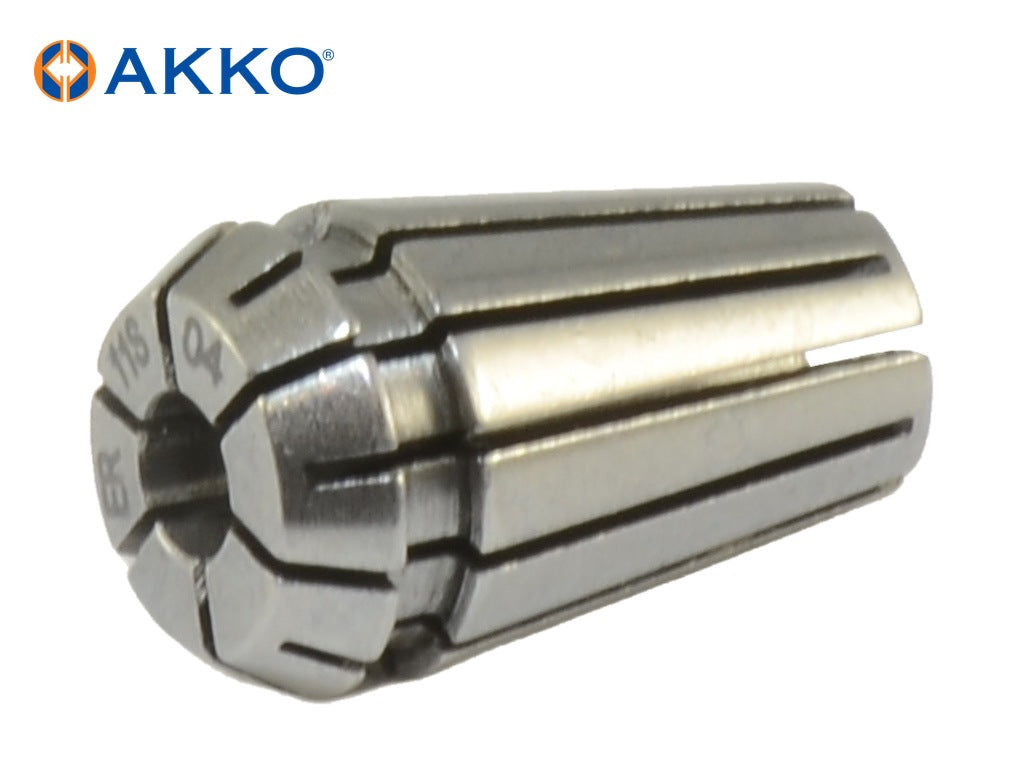

AKKO ER-S ER Collet (DIN 6499)

Out of stock
SKU: ER-11S-01
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedER-11S-01 SKUER-11S-01

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ER-S – ER Collet (DIN 6499) from the AKKO ER Collets (DIN 6499) range. 76 sizes listed below.

Specifications

  • Coolant Through: No
  • Collet Type: Standard Type

Sizes and dimensions

AKKO code Collet Size Collet Series
ER-11S-01 1 ER11
ER-11S-015 1.5 ER11
ER-11S-02 2 ER11
ER-11S-025 2.5 ER11
ER-11S-03 3 ER11
ER-11S-04 4 ER11
ER-11S-05 5 ER11
ER-11S-055 5.5 ER11
ER-11S-06 6 ER11
ER-11S-065 6.5 ER11
ER-11S-07 7 ER11
ER-16S-01 1 ER16
ER-16S-02 2 ER16
ER-16S-03 3 ER16
ER-16S-04 4 ER16
ER-16S-05 5 ER16
ER-16S-06 6 ER16
ER-16S-07 7 ER16
ER-16S-08 8 ER16
ER-16S-09 9 ER16
ER-16S-10 10 ER16
ER-20S-02 2 ER20
ER-20S-03 3 ER20
ER-20S-04 4 ER20
ER-20S-05 5 ER20
ER-20S-06 6 ER20
ER-20S-07 7 ER20
ER-20S-08 8 ER20
ER-20S-09 9 ER20
ER-20S-10 10 ER20
ER-20S-11 11 ER20
ER-20S-12 12 ER20
ER-20S-13 13 ER20
ER-32S-02 2 ER32
ER-32S-03 3 ER32
ER-32S-04 4 ER32
ER-32S-05 5 ER32
ER-32S-06 6 ER32
ER-32S-07 7 ER32
ER-32S-08 8 ER32
ER-32S-09 9 ER32
ER-32S-10 10 ER32
ER-32S-11 11 ER32
ER-32S-12 12 ER32
ER-32S-13 13 ER32
ER-32S-14 14 ER32
ER-32S-15 15 ER32
ER-32S-16 16 ER32
ER-32S-17 17 ER32
ER-32S-18 18 ER32
ER-32S-19 19 ER32
ER-32S-20 20 ER32
ER-40S-03 3 ER40
ER-40S-04 4 ER40
ER-40S-05 5 ER40
ER-40S-06 6 ER40
ER-40S-07 7 ER40
ER-40S-08 8 ER40
ER-40S-09 9 ER40
ER-40S-10 10 ER40
ER-40S-11 11 ER40
ER-40S-12 12 ER40
ER-40S-13 13 ER40
ER-40S-14 14 ER40
ER-40S-15 15 ER40
ER-40S-16 16 ER40
ER-40S-17 17 ER40
ER-40S-18 18 ER40
ER-40S-19 19 ER40
ER-40S-20 20 ER40
ER-40S-21 21 ER40
ER-40S-22 22 ER40
ER-40S-23 23 ER40
ER-40S-24 24 ER40
ER-40S-25 25 ER40
ER-40S-26 26 ER40

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
