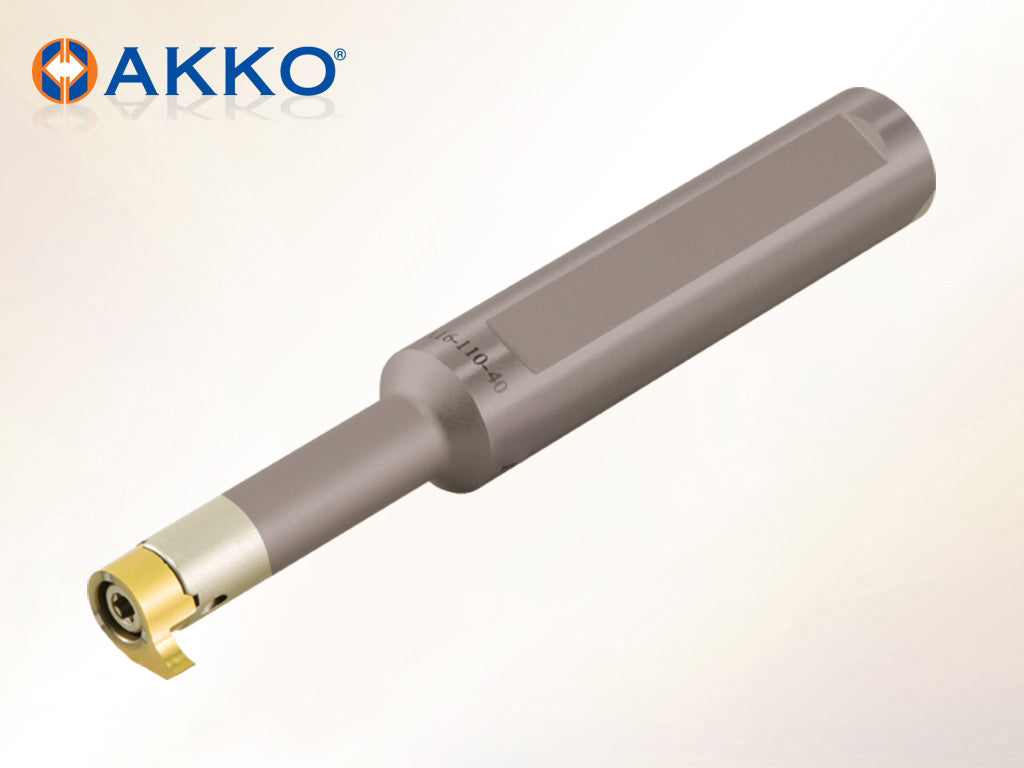

AKKO E-MC Mico Cut Toolholder
AKKO E-MC Mico Cut Toolholder - dimension drawing
AKKO E-MC Mico Cut Toolholder
AKKO E-MC Mico Cut Toolholder - dimension drawing
AKKO

AKKO E-MC Mico Cut Toolholder

Out of stock
SKU: E12J-MC08-042
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedE12J-MC08-042 SKUE12J-MC08-042

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO E-MC Mico Cut Toolholder from the AKKO Mico Cut Toolholders range. For inserts: MC08, MC11. 5 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert Hand (R/L) LF DCONMS OHN DCONWS H
E12J-MC08-042 MC08 R 110 12 42 8 11
E12K-MC08-056 MC08 R 120 12 56 8 11
E12J-MC11-040 MC11 R 130 12 40 11 15
E16K-MC11-056 MC11 R 130 16 56 11 15
E16K-MC11-080 MC11 R 150 16 80 11 15

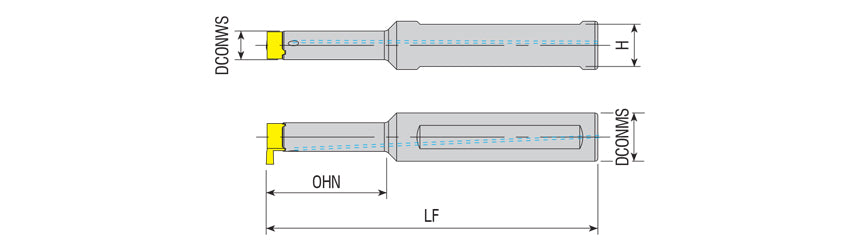

Dimension key (letters as on the drawing):

  • LF: Functional length
  • DCONMS: Connection diameter, machine side
  • OHN: Minimum overhang
  • DCONWS: Connection diameter, workpiece side
  • H: Height

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
