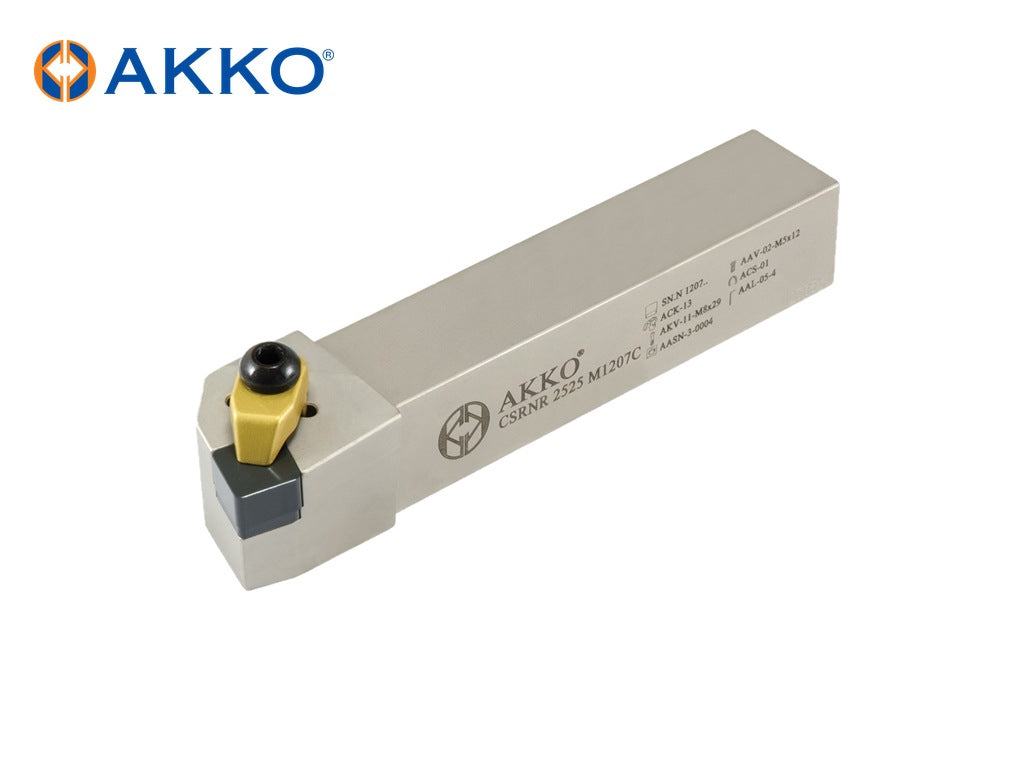

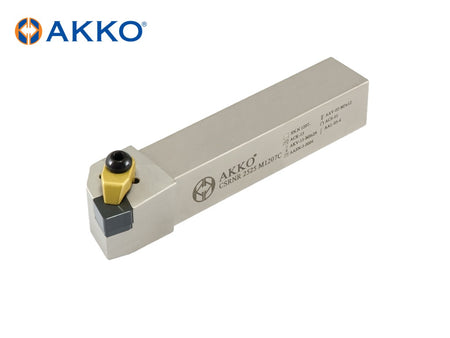

AKKO CSRNR/L – C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. Insert clamping: top clamp. Available in right-hand and left-hand versions. For inserts: SN.. 12.. 4 sizes listed below.
Specifications
-
Clamping Type: C-System
-
Coolant Through: No
-
Side Cutting Angle (KAPR): 75°
-
Insert (ISO): SN.. 12..

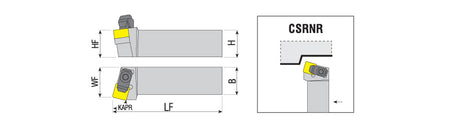

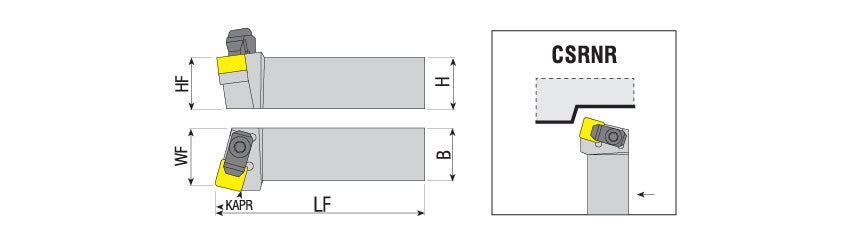

Sizes and dimensions
| AKKO code |
Hand (R/L) |
Shank Height (H, mm) |
Shank Width (B, mm) |
Functional Length (LF, mm) |
Functional Width (WF, mm) |
| CSRNL 2525 M1207C |
L |
25 |
25 |
150 |
32 |
| CSRNL 3232 P1207C |
L |
32 |
32 |
170 |
40 |
| CSRNR 2525 M1207C |
R |
25 |
25 |
150 |
32 |
| CSRNR 3232 P1207C |
R |
32 |
32 |
170 |
40 |
Spare parts (AKKO codes)
-
Shim: AASN-3-0004
-
Shim Screw: AAV-02-M5X12
-
Allen Key: AAL-05-4
-
Clamp: ACK-13
-
Clamp Screw: AKV-11-M8X29
-
Ring: ACS-01
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
