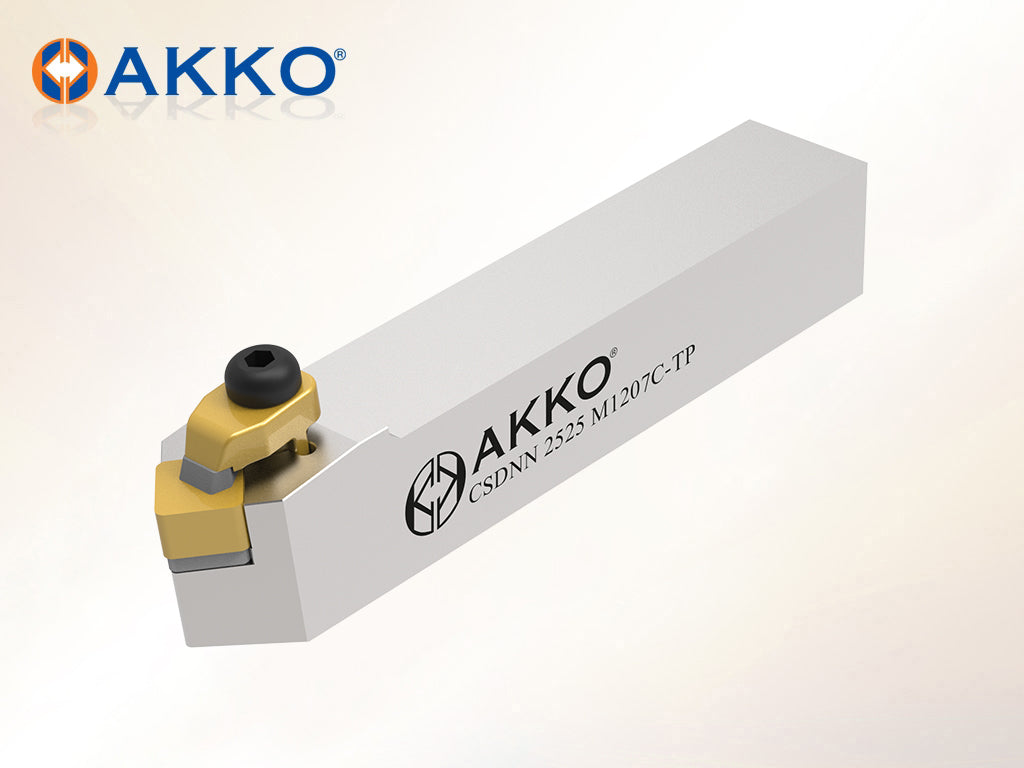

AKKO CSDNN-TP C-System External Turning Toolholder
AKKO CSDNN-TP C-System External Turning Toolholder - dimension drawing
AKKO CSDNN-TP C-System External Turning Toolholder
AKKO CSDNN-TP C-System External Turning Toolholder - dimension drawing
AKKO

AKKO CSDNN-TP C-System External Turning Toolholder

Out of stock
SKU: CSDNN 2525 M1207TP
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedCSDNN 2525 M1207TP SKUCSDNN 2525 M1207TP

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO CSDNN-TP C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. For inserts: SN.. 1207.. 2 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert LF WF HF=H B
CSDNN 2525 M1207TP SN.. 1207.. 150 12.5 25 25
CSDNN 3232 P1207TP SN.. 1207.. 170 16 32 32

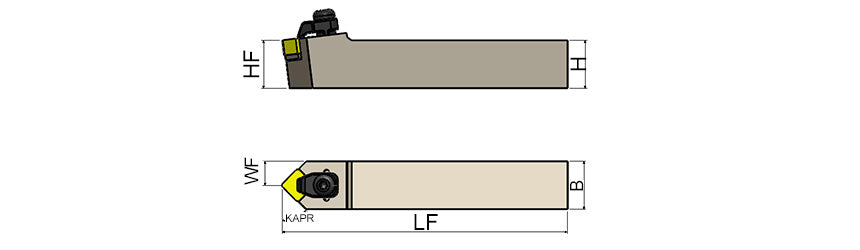

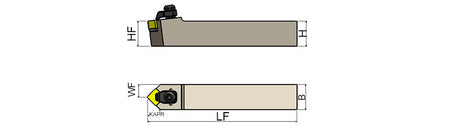

Dimension key (letters as on the drawing):

  • LF: Functional length
  • WF: Functional width
  • HF=H: Shank height
  • B: Shank width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
