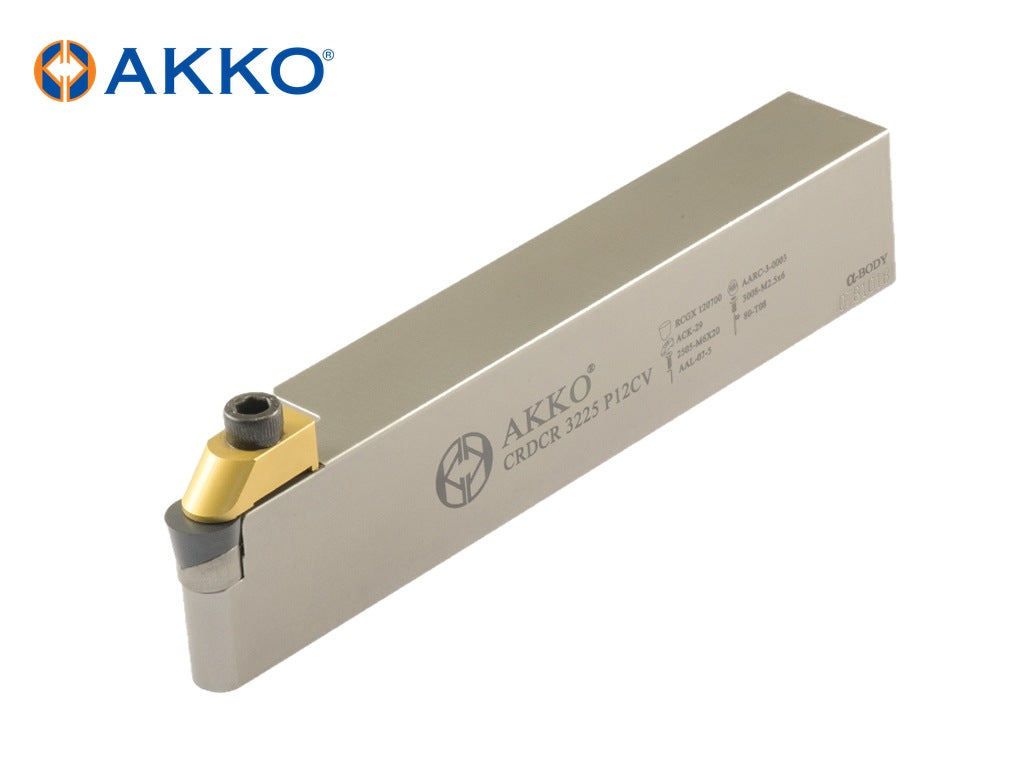

AKKO CRDCR/L – C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. Insert clamping: top clamp. Available in right-hand and left-hand versions. For inserts: RC.. 06.., RC.. 09.., RC.. 12.. 6 sizes listed below.

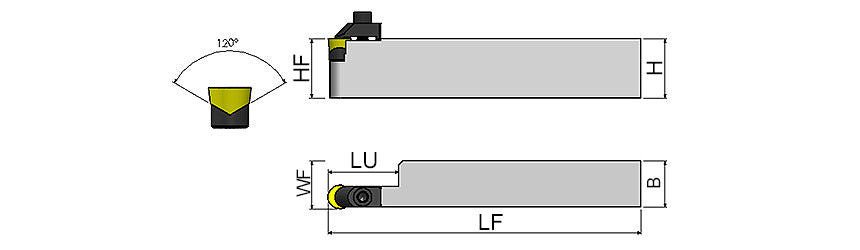

| AKKO code | Hand (R/L) | Functional Width (WF, mm) | Usable Length (LU, mm) | Insert (ISO) |
|---|---|---|---|---|
| CRDCL 3225 P06CV | L | 25.6 | 19.4 | RC.. 06.. |
| CRDCL 3225 P09CV | L | 25.8 | 29 | RC.. 09.. |
| CRDCL 3225 P12CV | L | 25.9 | 38.5 | RC.. 12.. |
| CRDCR 3225 P06CV | R | 26.5 | 19.4 | RC.. 06.. |
| CRDCR 3225 P09CV | R | 25.8 | 29 | RC.. 09.. |
| CRDCR 3225 P12CV | R | 25.90 | 38.5 | RC.. 12.. |
| AKKO code | Shim | Allen Key | Clamp | Torx Key | Torx Screw | Hexagon Screw |
|---|---|---|---|---|---|---|
| CRDCL 3225 P06CV | AARC-3-0001 | AAL-02-2.5 | ACK-27 | 82-T07 | 3007-M2.2X4.6 | 2525-M3X14 |
| CRDCL 3225 P09CV | AARC-3-0002 | AAL-05-4 | ACK-28 | 82-T08 | 3008-M2.5X6 | 2504-M5X16 |
| CRDCL 3225 P12CV | AARC-3-0003 | AAL-07-5 | ACK-29 | 82-T08 | 3008-M2.5X6 | 2505-M6x20 |
| CRDCR 3225 P06CV | AARC-3-0001 | AAL-02-2.5 | ACK-27 | 82-T07 | 3007-M2.2X4.6 | 2525-M3X14 |
| CRDCR 3225 P09CV | AARC-3-0002 | AAL-05-4 | ACK-28 | 82-T08 | 3008-M2.5X6 | 2504-M5X16 |
| CRDCR 3225 P12CV | AARC-3-0003 | AAL-07-5 | ACK-29 | 82-T08 | 3008-M2.5X6 | 2505-M6x20 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
