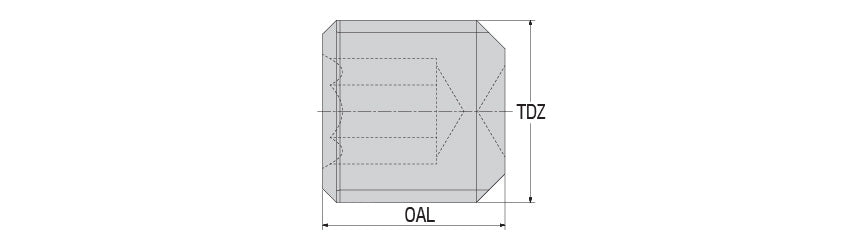

AKKO Clamping Screw Weldon - dimension drawing

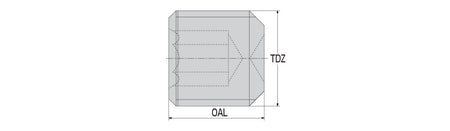

AKKO Clamping Screw Weldon - dimension drawing
AKKO

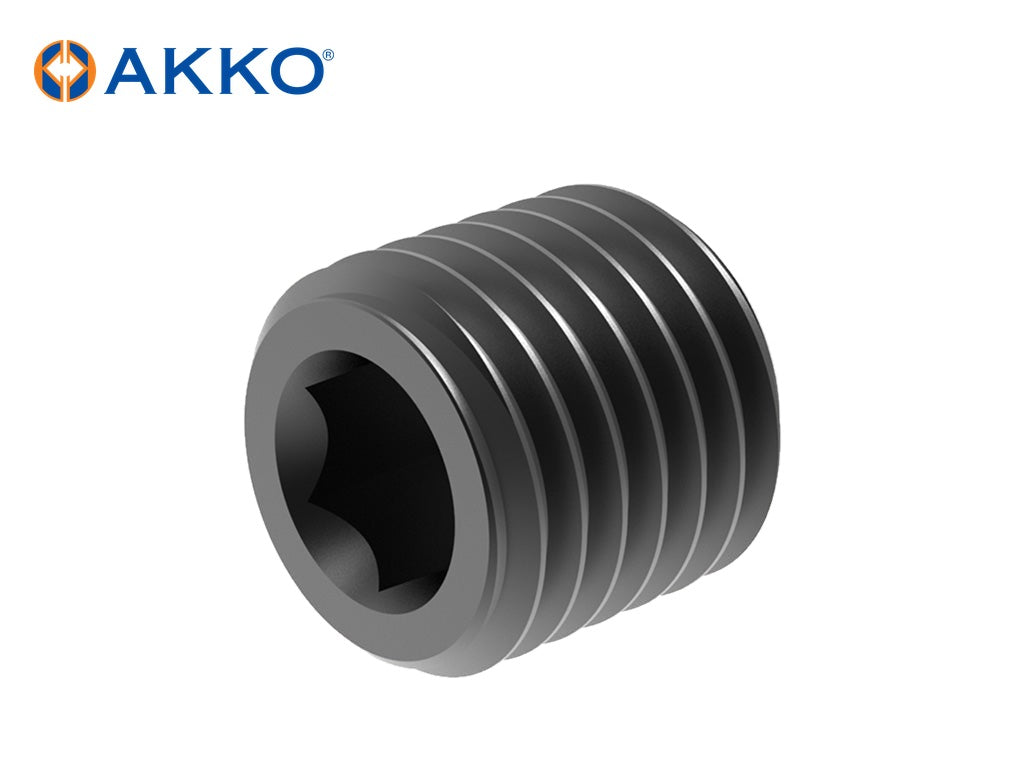

AKKO Clamping Screw Weldon

Out of stock
SKU: 2812-M24x25
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

Selected2812-M24x25 SKU2812-M24x25

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Clamping Screw Weldon from the AKKO Clamping Screw Weldon range. 9 sizes listed below.

Sizes and dimensions (mm)

AKKO code SS OAL DZ
2812-M24x25 - - -
2803-M6x9 6 9 M6
2804-M8x9 8 9 M8
2805-M10x12 10 12 M10
2806-M12x14 - 14 M12
2806-M14x16 16.18 16 M14
2808-M16x16 20 16 M16
2810-M18x20 25 20 M18
2810-M20x20 32.4 20 M20

Dimension key (letters as on the drawing):

  • SS: Taper size
  • OAL: Overall length

Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.
