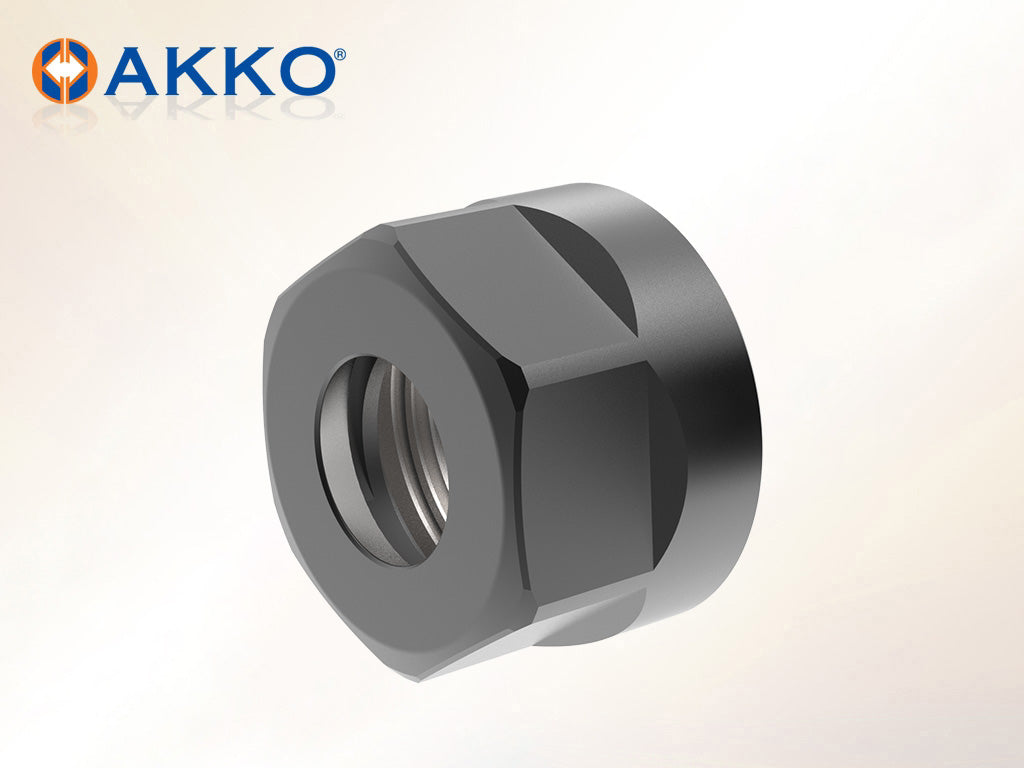

AKKO Clamping Nuts

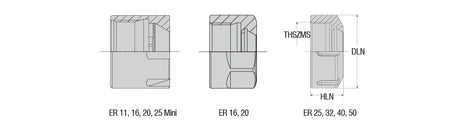

AKKO Clamping Nuts - dimension drawing
AKKO Clamping Nuts

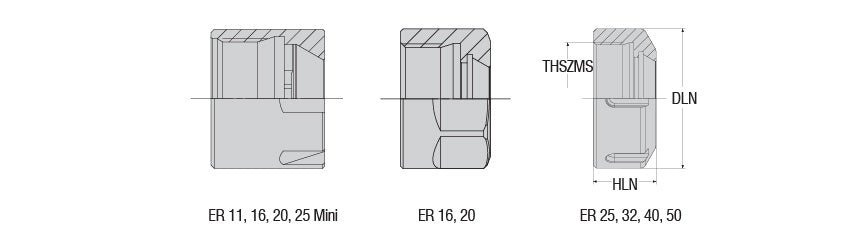

AKKO Clamping Nuts - dimension drawing
AKKO

AKKO Clamping Nuts

Out of stock
SKU: ANUT-ER20-M
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedANUT-ER20-M SKUANUT-ER20-M

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Clamping Nuts from the AKKO Clamping Nuts range. 10 sizes listed below.

Sizes and dimensions (mm)

AKKO code DLN HLN HSZMS N∙m
ANUT-ER20-M - - - -
ANUT-ER25-M - - - -
ANUT-ER50 - - - -
ANUT-ER11-M 16 10.8 M13x0.75 29.04
ANUT-ER16-M 22 18 M19x1.0 39.2
ANUT-ER16 28 17 M22x1.5 68.7
ANUT-ER20 34 19.5 M25x1.5 117.7
ANUT-ER25 42 20 M32x1.5 196.2
ANUT-ER32 50 22 M40x1.5 215.8
ANUT-ER40 63 25 M50x1.5 245.3

Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
